Components [12/2013 - ]: Illustration

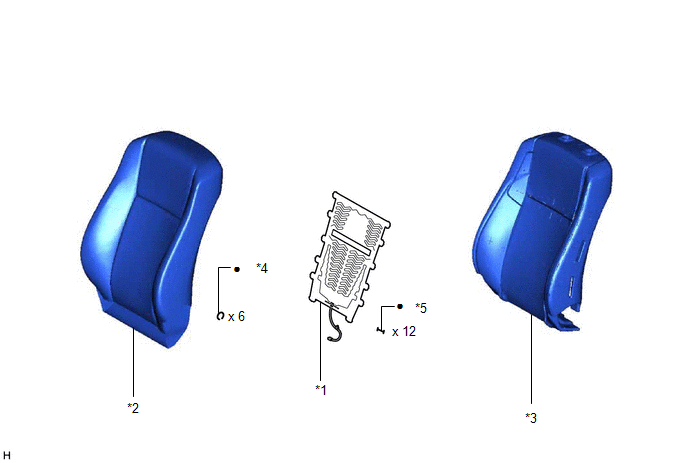

Fig 1: Front Seatback Heater Component Replacements
GTY434083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT SEATBACK HEATER ASSEMBLY *2 SEPARATE TYPE FRONT SEATBACK COVER
*3 SEPARATE TYPE FRONT SEATBACK PAD *4 HOG RING
*5 TAG PIN - -
• Non-reusable part - -
