EPS Warning Light Circuit [08/2013 - 12/2013]: Wiring Diagram

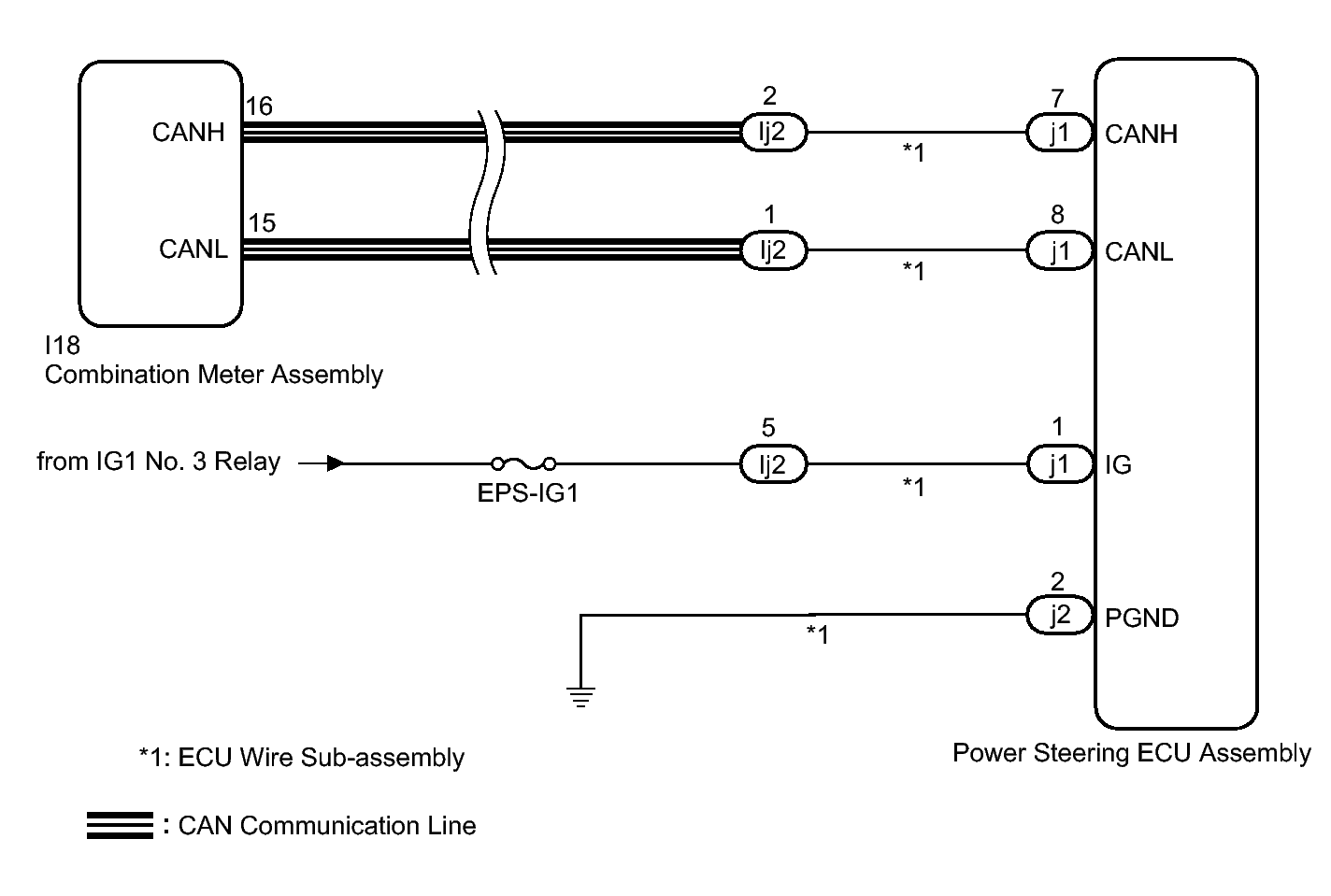

Fig 1: EPS Warning Light Circuit Wiring Diagram

GTY314713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
