Removal [08/2013 - ]

  1. REMOVE STEERING COLUMN ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  2. REMOVE POWER STEERING ECU ASSEMBLY
    1. Disconnect the 4 connectors from the power steering ECU assembly.

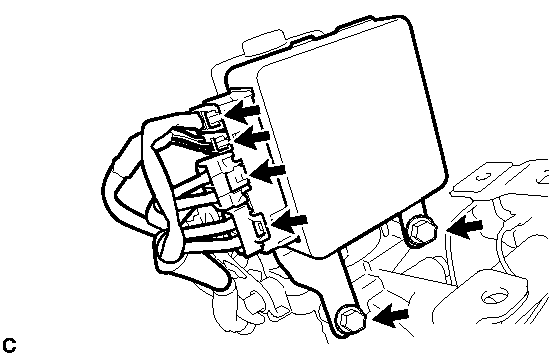

      Fig 1: Identifying Power Steering ECU Assembly Connectors And Bolts
      GTY316206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts to remove the power steering ECU assembly from the steering column assembly.
