Components [08/2013 - ]: Illustration

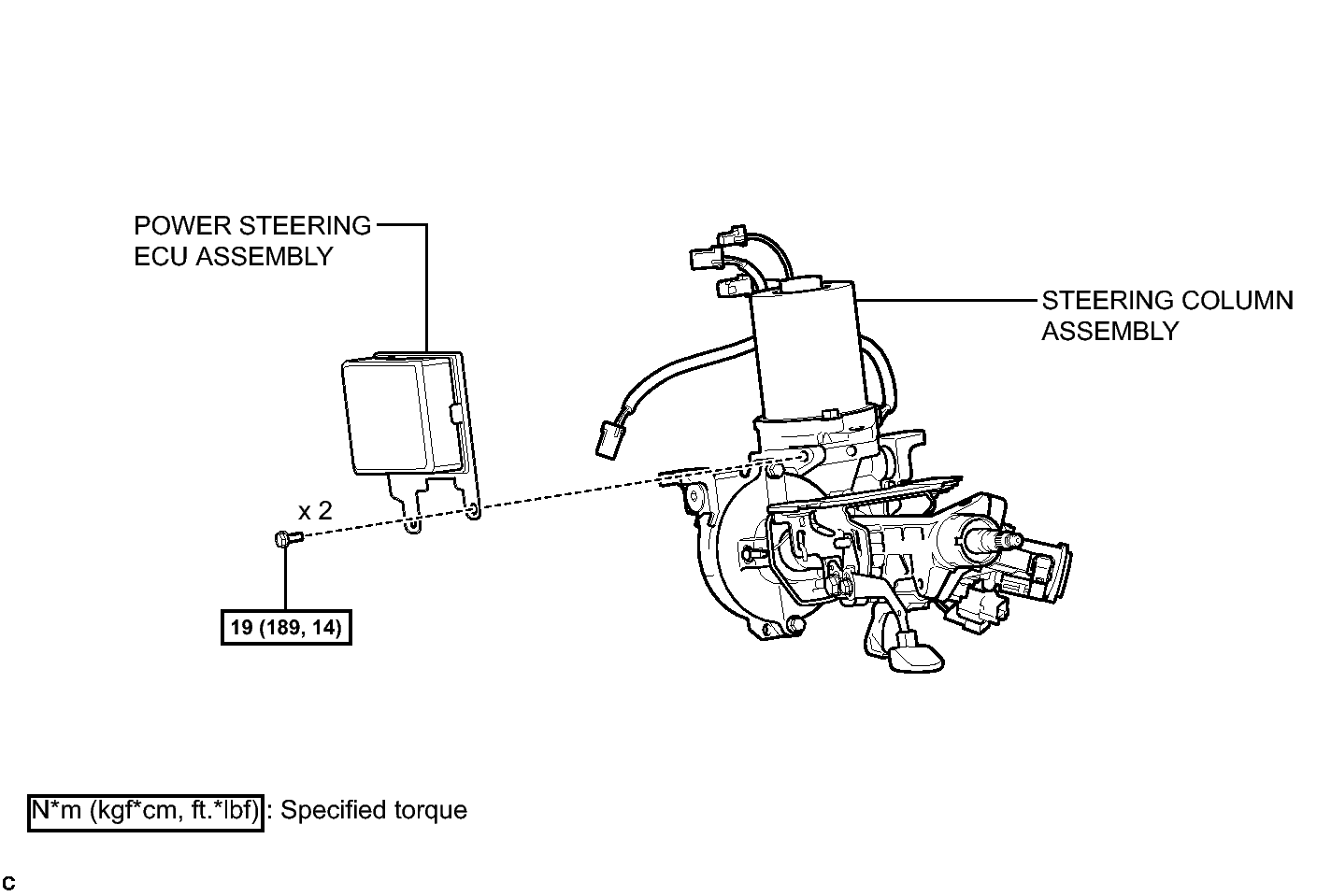

Fig 1: Identifying Power Steering ECU Replacement Components With Torque Specifications (W/O Wireless Door Lock System)
GTY319353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
