Installation [12/2013 - ]

INSPECT REAR SEAT OUTER BELT ASSEMBLY See step 1
INSTALL REAR SEAT OUTER BELT ASSEMBLY
1. Engage the guide to temporarily install the rear seat outer belt assembly.
2. Install the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  HINT:

  Use the same procedure for the RH side and LH side.
3. Check if the ELR locks.
  NOTE:
  The check should be performed with the rear seat outer belt assembly installed.
  1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
1. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
2. Engage the 5 guides and 3 clips to install the package tray trim panel assembly.

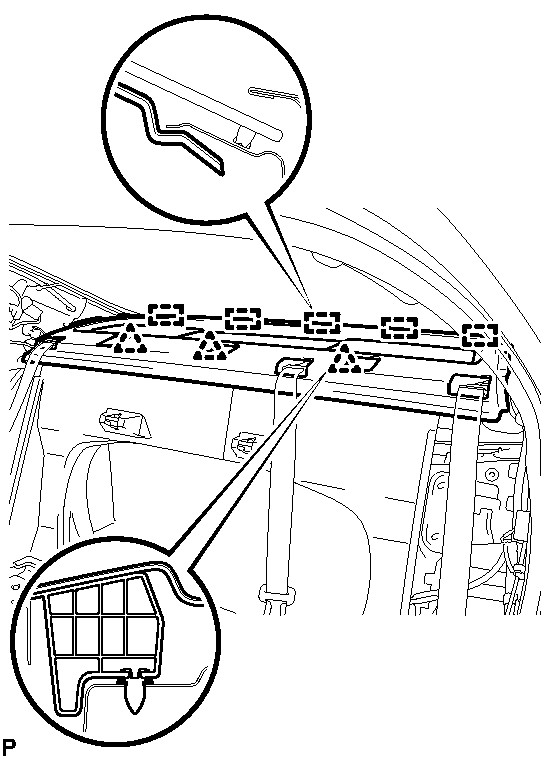

  Fig 1: Identifying Package Tray Trim Panel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SHOULDER BELT COVER
1. Engage the 4 guides and 2 claws to install the rear seat shoulder belt cover.

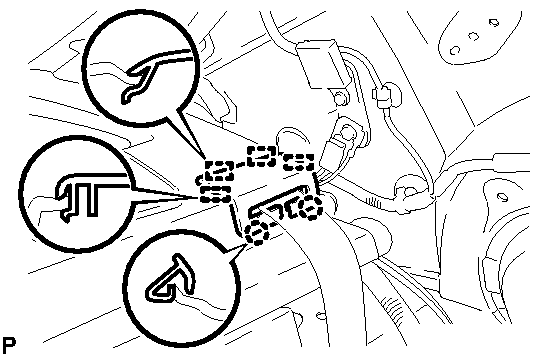

  Fig 2: Identifying Rear Seat Shoulder Belt Cover Guides And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the other 2 rear seat shoulder belt covers.
INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER
1. Engage the 2 guides and 2 claws to install the child restraint seat tether anchor cover.

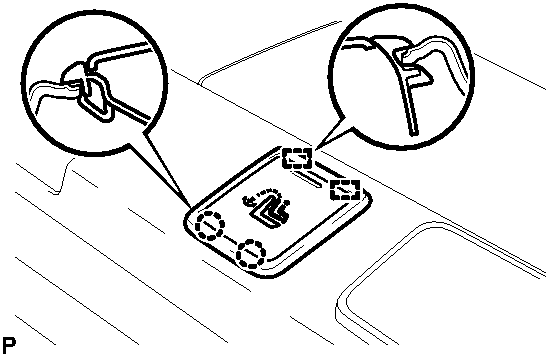

  Fig 3: Identifying Child Restraint Seat Tether Anchor Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the other 2 child restraint seat tether anchor covers.
INSTALL CENTER STOP LIGHT SET . Refer to INSTALLATION [08/2013 - ] - Step 1
CONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH See step 7
INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH See step 1
CONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side)
1. Connect the floor anchor of the rear seat outer belt assembly with the bolt.

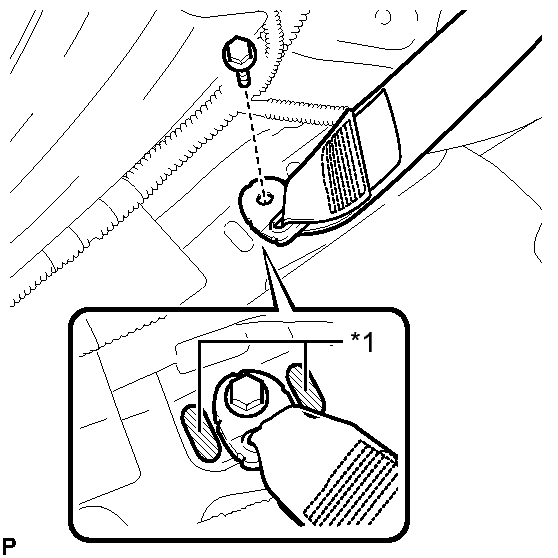

  Fig 4: Identifying Rear Seat Outer Belt Assembly Bolt And Protruding Parts (For LH Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protruding Part

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.
CONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side)
1. Connect the floor anchor of the rear seat outer belt assembly with the bolt.

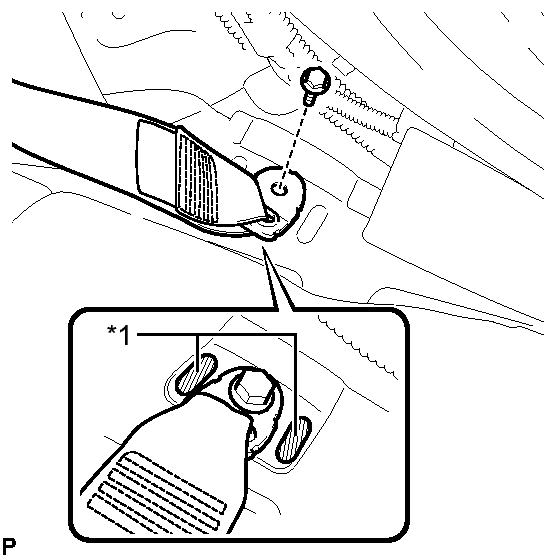

  Fig 5: Identifying Rear Seat Outer Belt Assembly Bolt And Protruding Parts (For RH Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Protruding Part

  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE:
  Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.
INSTALL ROOF SIDE INNER GARNISH LH . Refer to INSTALLATION [12/2013 - ] - Step 20
INSTALL ROOF SIDE INNER GARNISH RH
HINT:

Use the same procedure as for the LH side.
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH . Refer to INSTALLATION [12/2013 - ] - Step 25
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH . Refer to INSTALLATION [12/2013 - ] - Step 32
INSTALL REAR SIDE SEATBACK ASSEMBLY LH . Refer to INSTALLATION [12/2013 - ] - Step 2
INSTALL REAR SIDE SEATBACK ASSEMBLY RH . Refer to INSTALLATION [12/2013 - ] - Step 1
INSTALL REAR SEATBACK ASSEMBLY LH . Refer to INSTALLATION [12/2013 - ] - Step 4
INSTALL INNER LUGGAGE COMPARTMENT TRIM PAD . Refer to INSTALLATION [12/2013 - ] - Step 5
INSTALL REAR SEAT CUSHION LOCK HOOK . Refer to INSTALLATION [12/2013 - ] - Step 6
INSTALL REAR SEAT CUSHION ASSEMBLY . Refer to INSTALLATION [12/2013 - ] - Step 7
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [12/2013 - ] .
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [08/2013 - ]
