Removal [12/2013 - ]

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION [12/2013 - ] .

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [12/2013 - ] .

  3. REMOVE REAR SEAT CUSHION ASSEMBLY  . Refer to REMOVAL [12/2013 - ] - Step 3
  4. REMOVE REAR SEAT CUSHION LOCK HOOK  . Refer to REMOVAL [12/2013 - ] - Step 4
  5. REMOVE INNER LUGGAGE COMPARTMENT TRIM PAD  . Refer to REMOVAL [12/2013 - ] - Step 5
  6. REMOVE REAR SEATBACK ASSEMBLY RH  . Refer to REMOVAL [12/2013 - ] - Step 7
  7. REMOVE REAR SIDE SEATBACK ASSEMBLY RH  . Refer to REMOVAL [12/2013 - ] - Step 9
  8. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY RH  See step  11
  9. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    1. Remove the bolt and rear seat inner with center belt assembly RH.

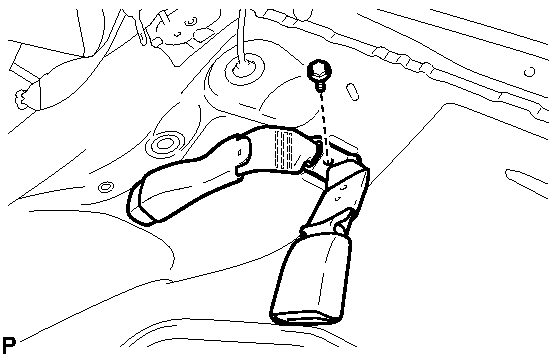

      Fig 1: Locating Rear Seat Inner Center Belt Assembly RH Bolt
      GTY428916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR SEATBACK ASSEMBLY LH  . Refer to REMOVAL [12/2013 - ] - Step 6
  11. REMOVE REAR SIDE SEATBACK ASSEMBLY LH  . Refer to REMOVAL [12/2013 - ] - Step 8
  12. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH
    1. Disconnect the rear door opening trim weatherstrip LH.
  13. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH
    1. Disconnect the rear door opening trim weatherstrip RH.
  14. REMOVE ROOF SIDE INNER GARNISH LH  . Refer to REMOVAL [12/2013 - ] - Step 24
  15. REMOVE ROOF SIDE INNER GARNISH RH

    HINT:

    Use the same procedure as for the LH side.

  16. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for LH Side)  See step  13
  17. DISCONNECT REAR SEAT OUTER BELT ASSEMBLY (for RH Side)  See step  14
  18. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY LH  See step  10
  19. DISCONNECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the floor anchor of the rear seat inner with center belt assembly LH.

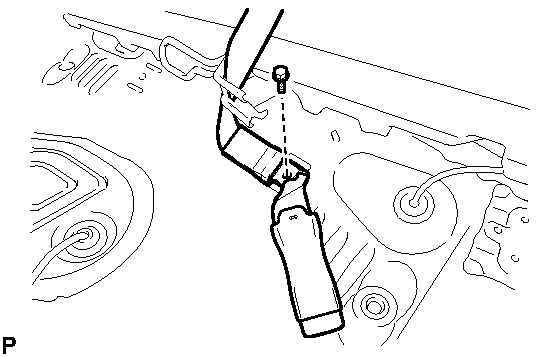

      Fig 2: Locating Rear Seat Inner Center Belt Assembly LH Bolt
      GTY423822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE CENTER STOP LIGHT SET  . Refer to REMOVAL [08/2013 - ] - Step 1
  21. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER  See step  18
  22. REMOVE REAR SEAT SHOULDER BELT COVER  See step  19
  23. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY  See step  20
  24. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Remove the bolt.

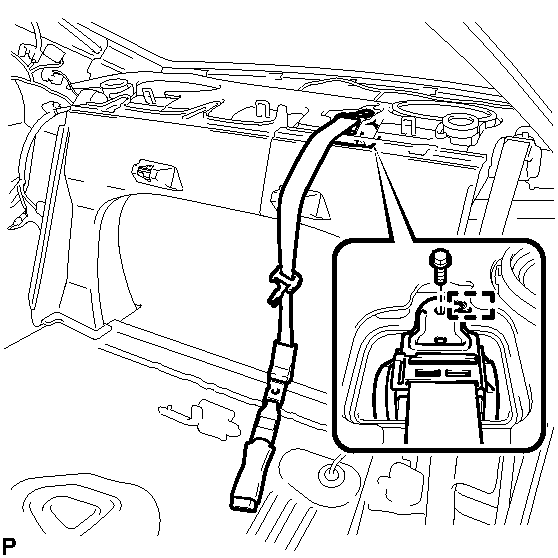

      Fig 3: Identifying Rear Seat Inner Center Belt Assembly LH Bolt And Guide
      GTY425047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the rear seat inner with center belt assembly LH.
