SRS Warning Light does not Come ON [08/2013 - 12/2013]: Wiring Diagram

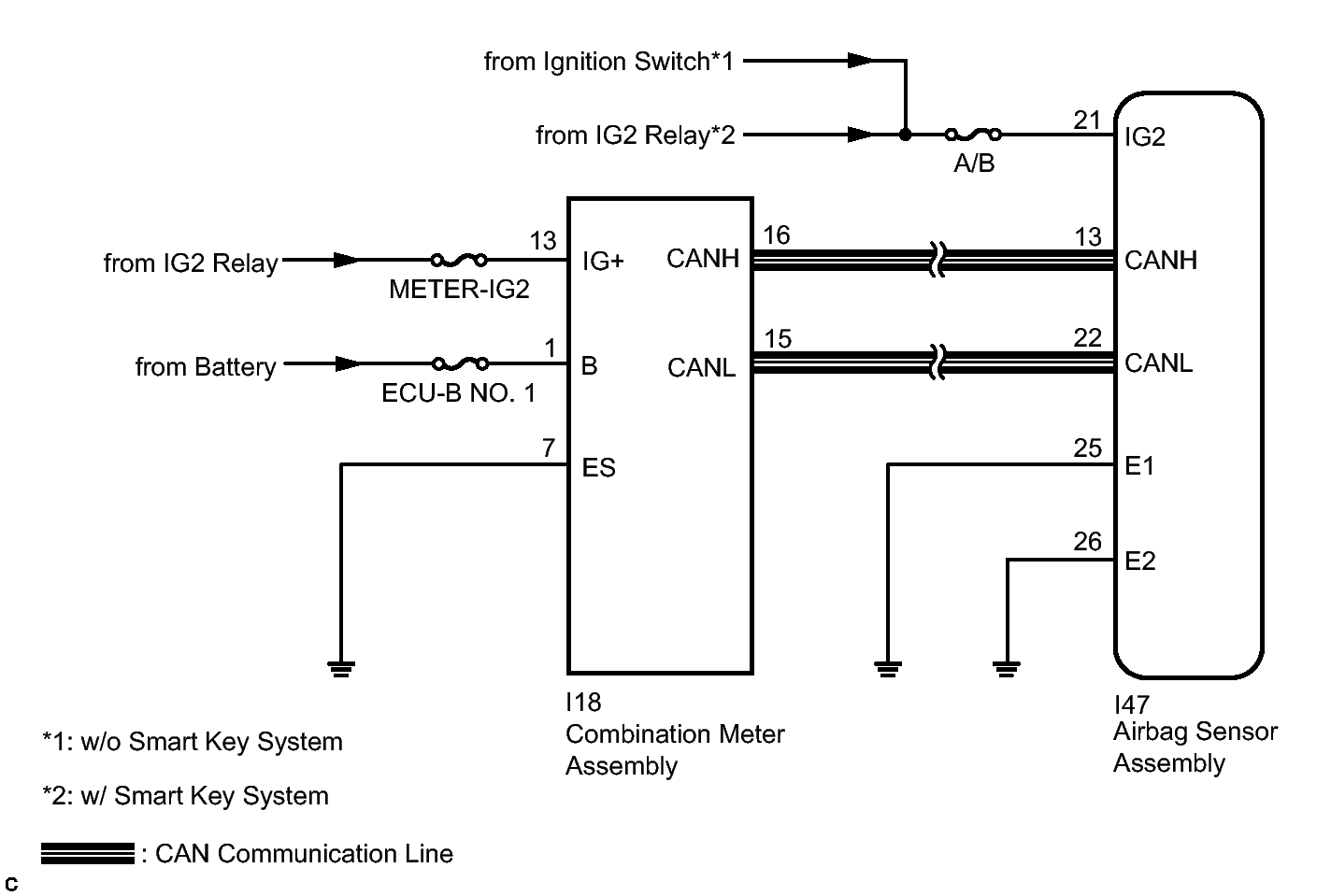

Fig 1: SRS Warning Light Circuit - Wiring Diagram

GTY319883

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
