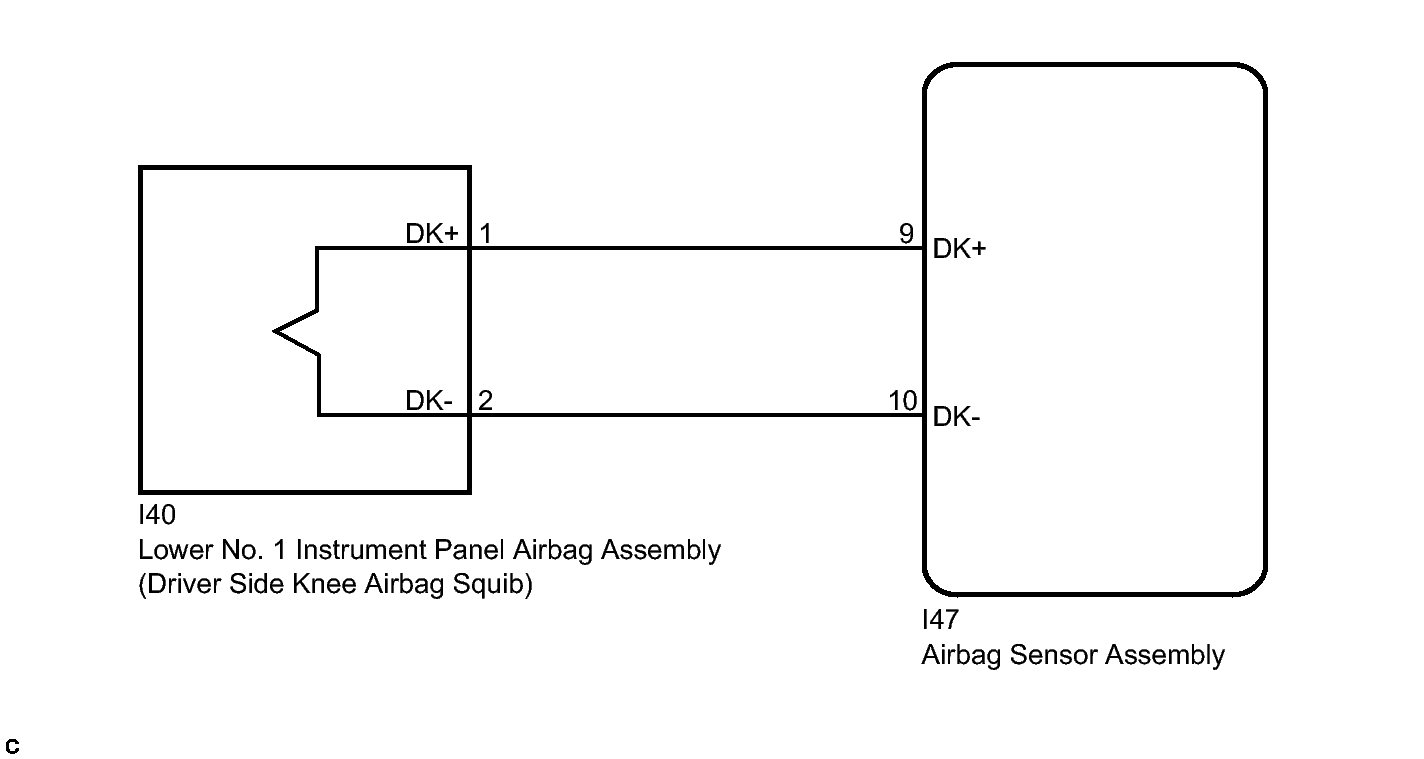

DTC B1860/64: Short in Driver Side Knee Airbag Squib Circuit; DTC B1861/64: Open in Driver Side Knee Airbag Squib Circuit; DTC B1862/64: Short to GND in Driver Side Knee Airbag Squib Circuit; DTC B1863/64: Short to B+ in Driver Side Knee Airbag Squib Circuit [08/2013 - 12/2013]: Wiring Diagram
WARNING: This page is about a different variant/trim than selected.
