Speed Signal Circuit [12/2013 - ]: Wiring Diagram

  1. for 2GR-FE

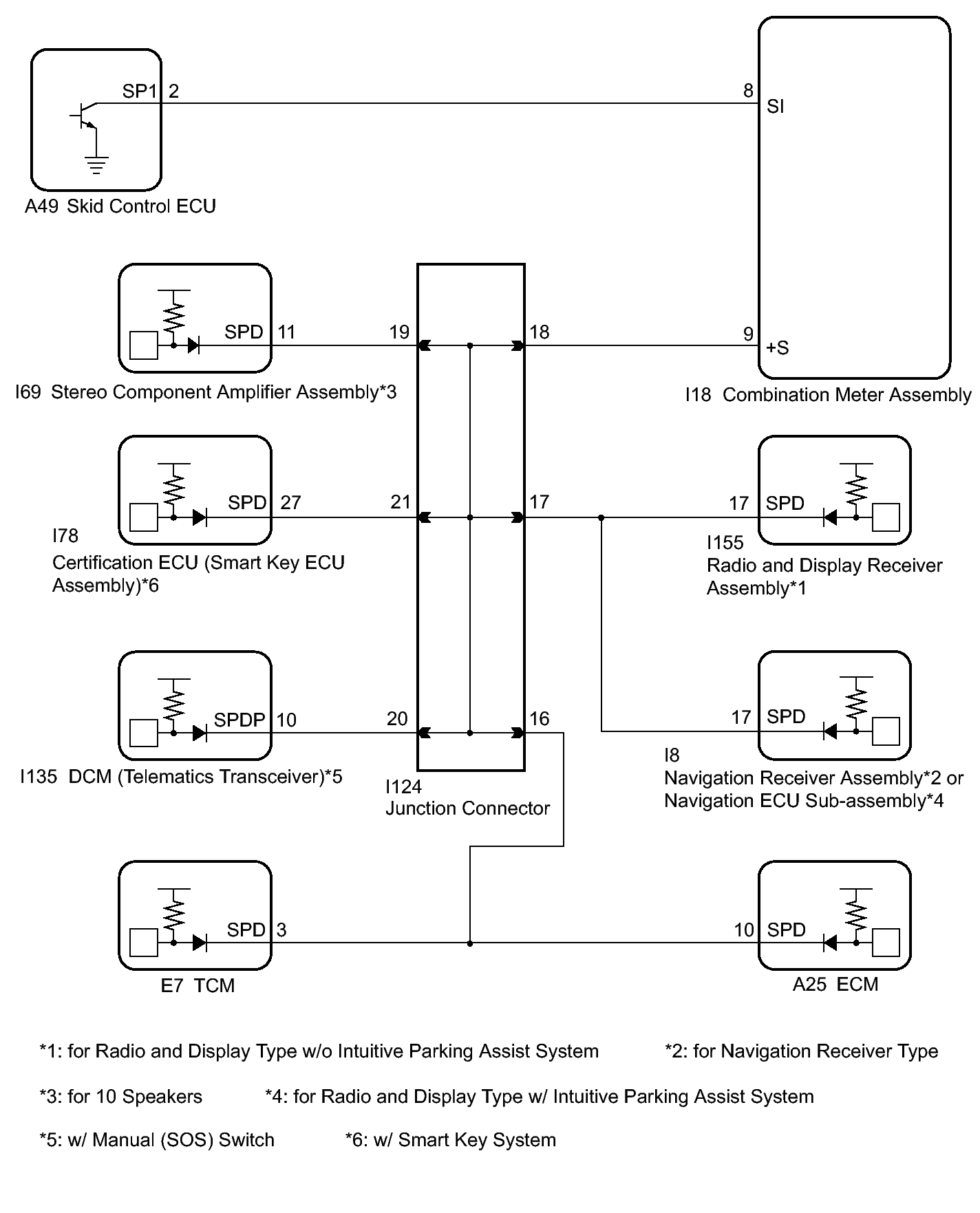

    Fig 1: Speed Signal Circuit-Wiring Diagram
    GTY440291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2AR-FE

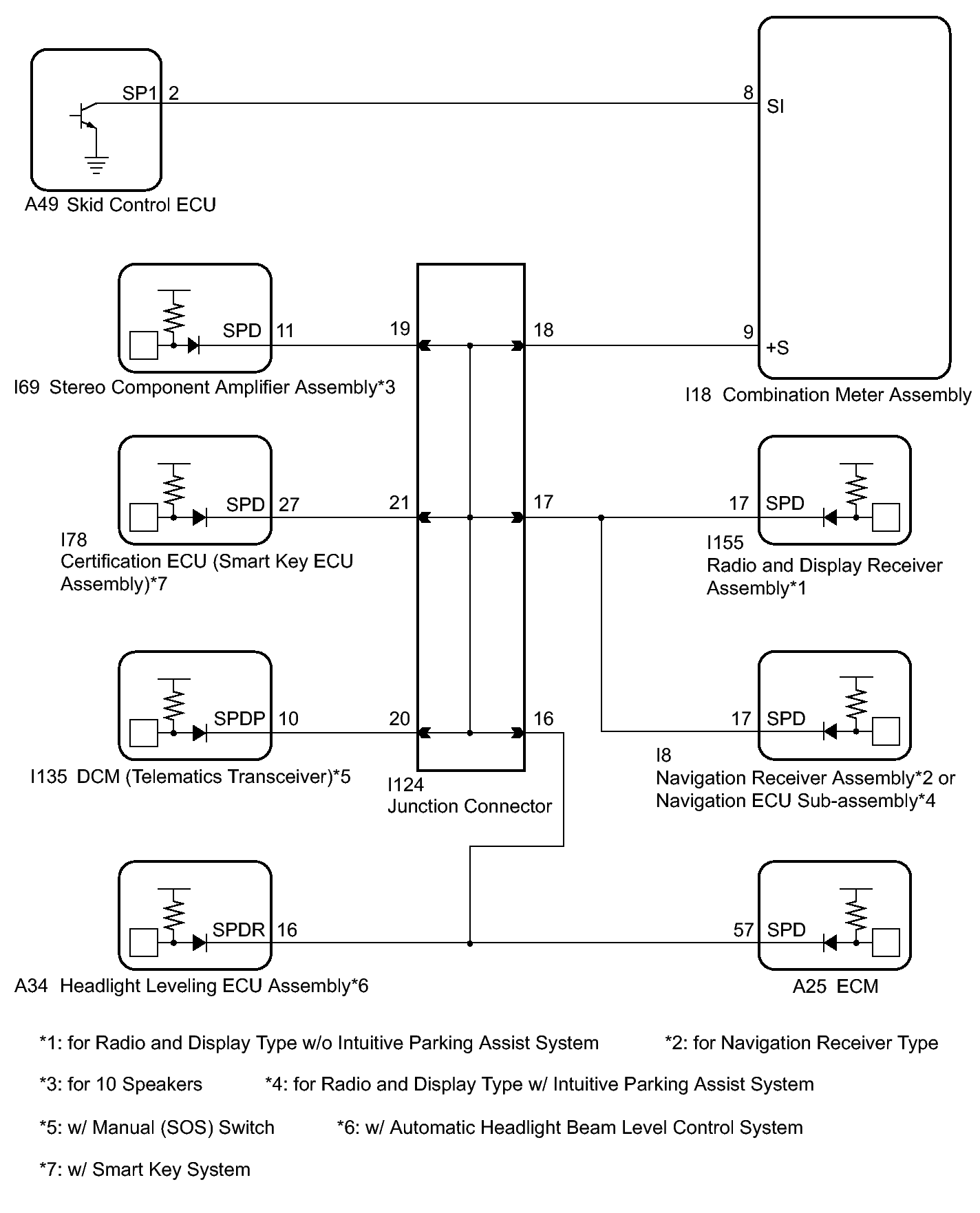

    Fig 2: Vehicle Speed Signal Circuit Wiring Diagram
    GTY454144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
