DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [08/2013 - ]: Wiring Diagram

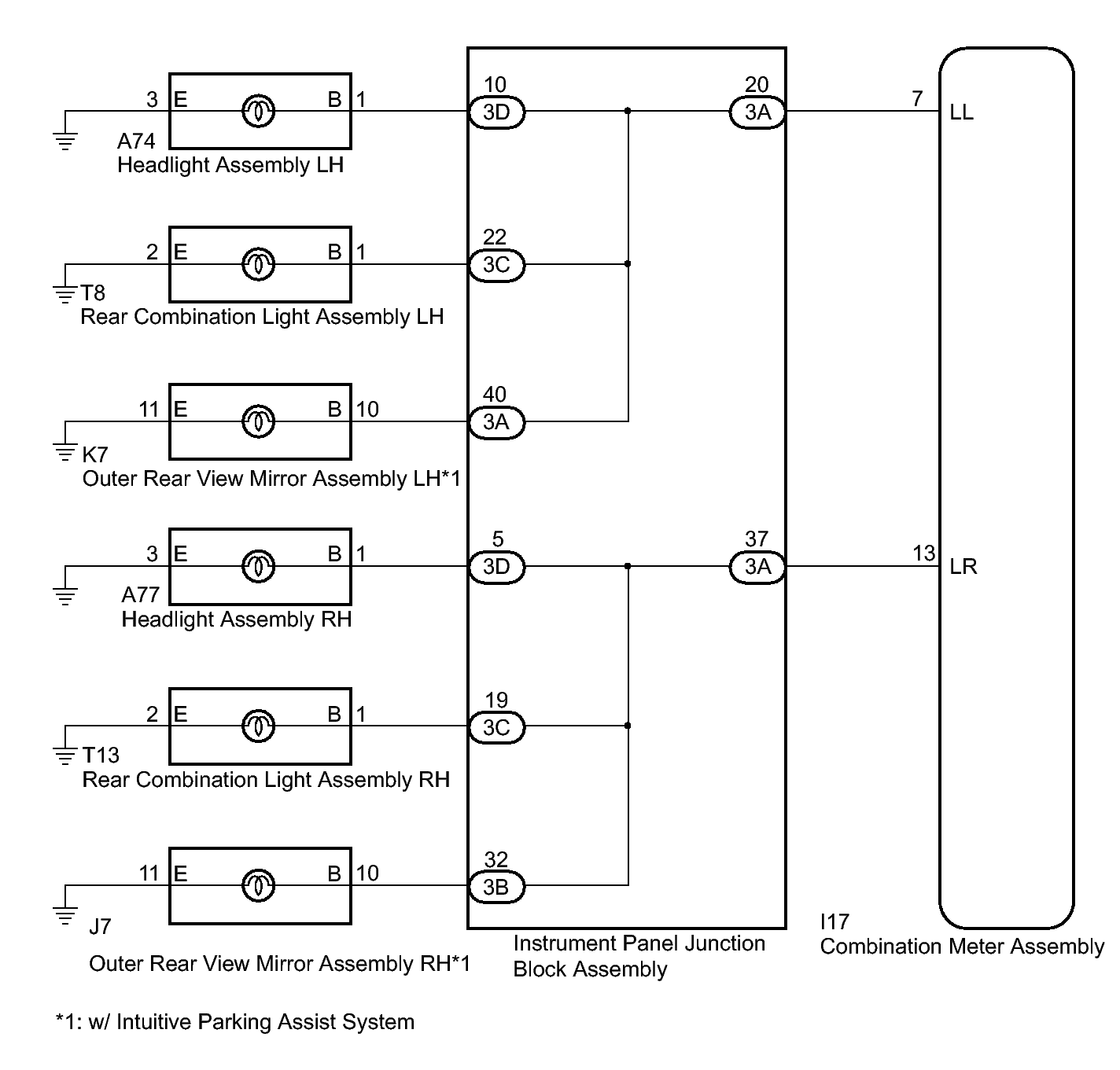

Fig 1: Turn Signal / Hazard Flasher Circuit - Wiring Diagram
GTY451515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
