DTC C146E: Open in ABS Solenoid Relay Circuit [12/2013 - ]: Wiring Diagram

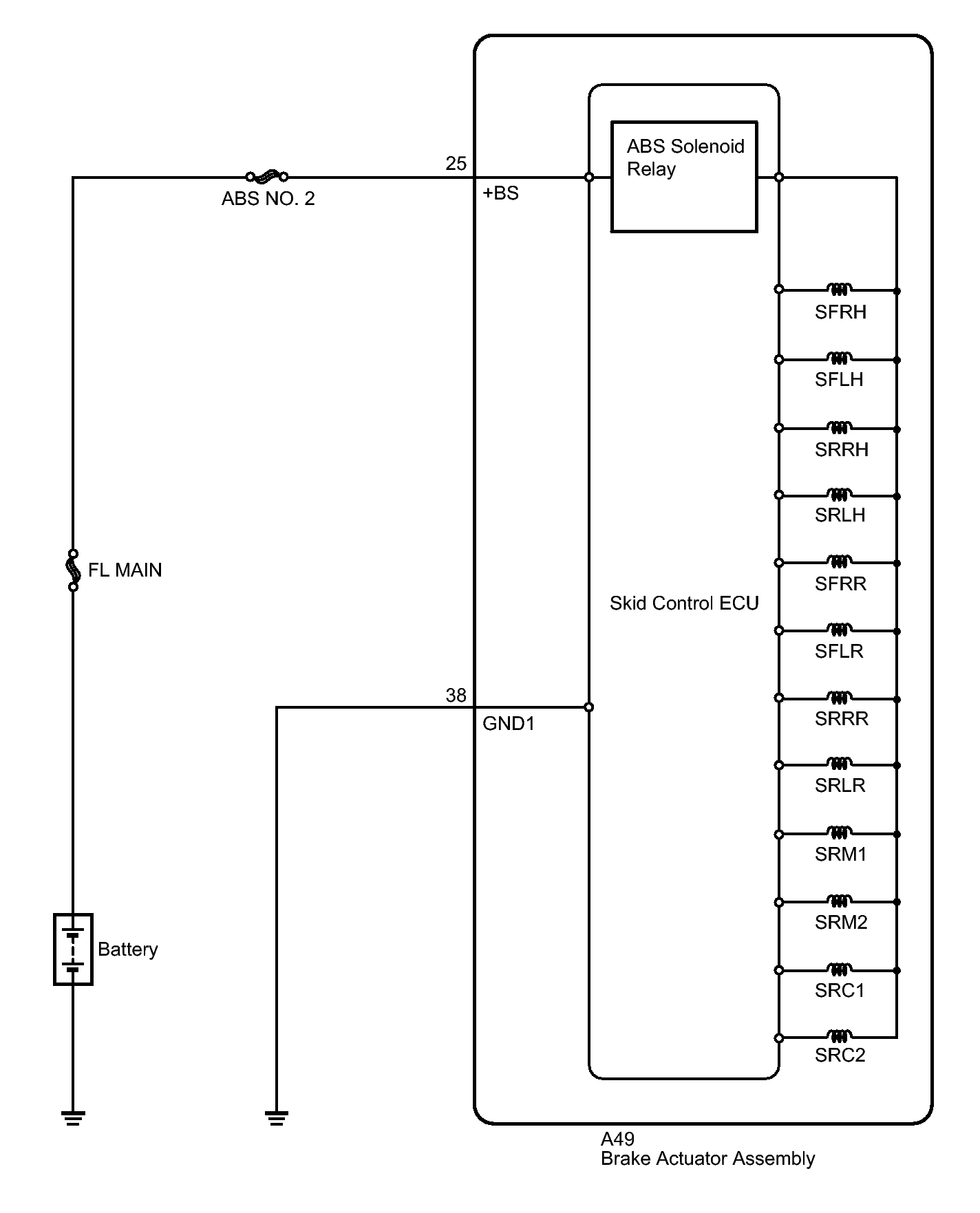

Fig 1: Brake Actuator Assembly Circuit-Wiring Diagram

GTY424340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
