Components [08/2013 - ]: Illustration

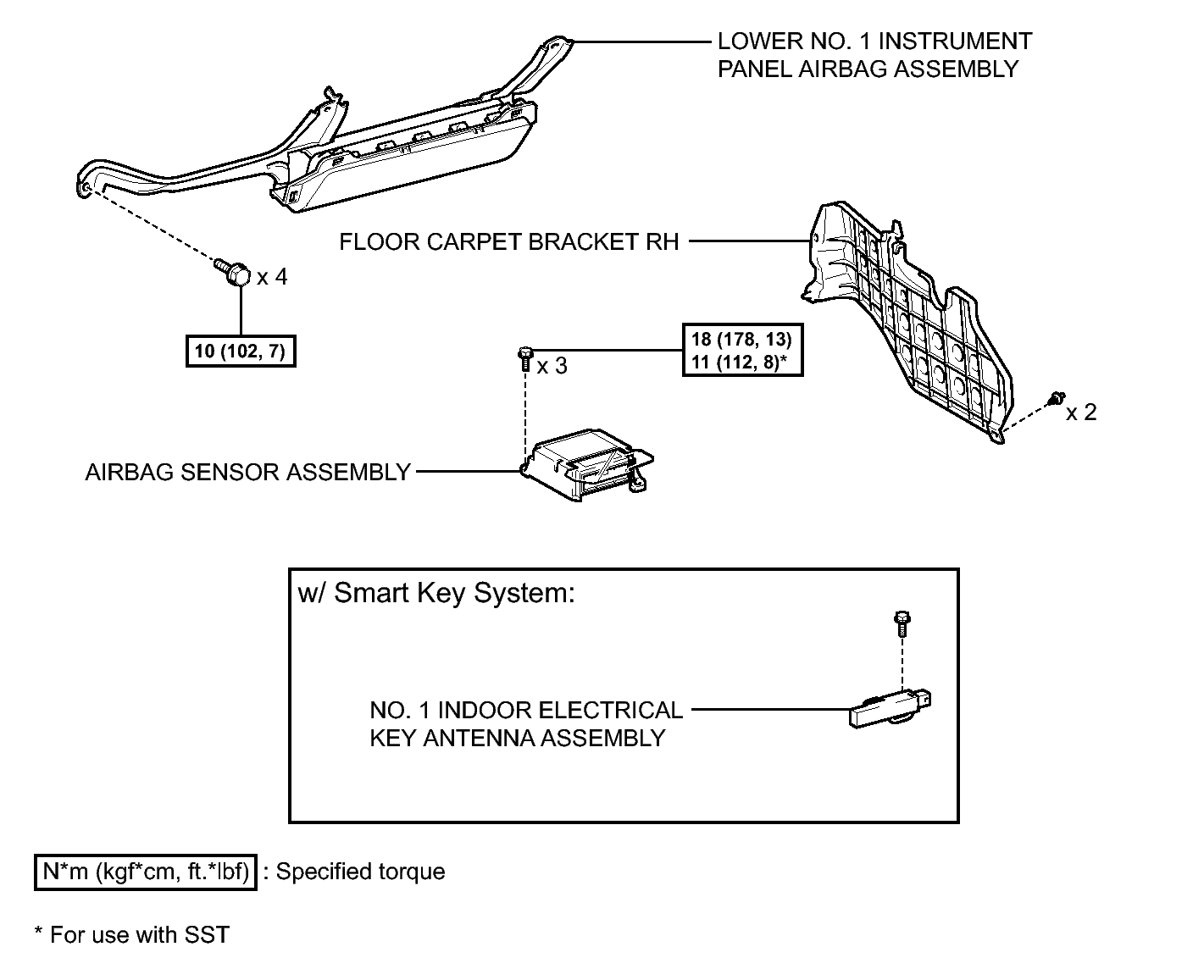

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 4)
GTY378502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

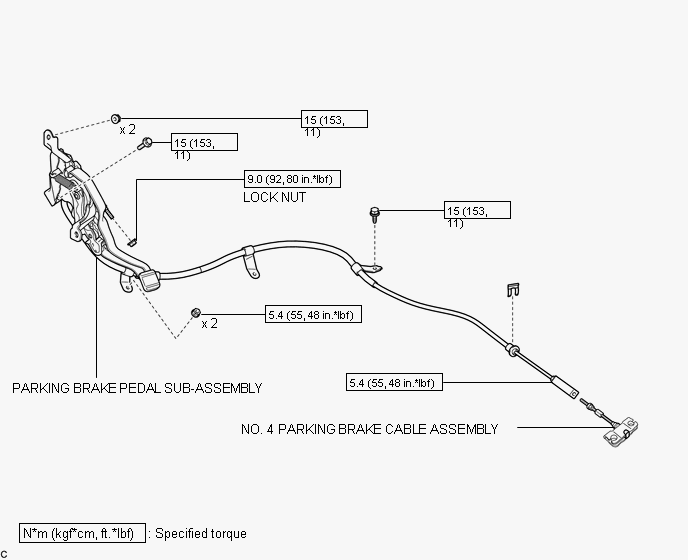

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (2 Of 4)
GTY370008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Pedal Replacement Components (3 Of 4)
GTY323419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (4 Of 4)
GTY316854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
