Components [08/2013 - ]: Illustration

Fig 1: Identifying Parking Brake Cable Replacement Components (1 Of 8)
GTY321678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (2 Of 8)
GTY319609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

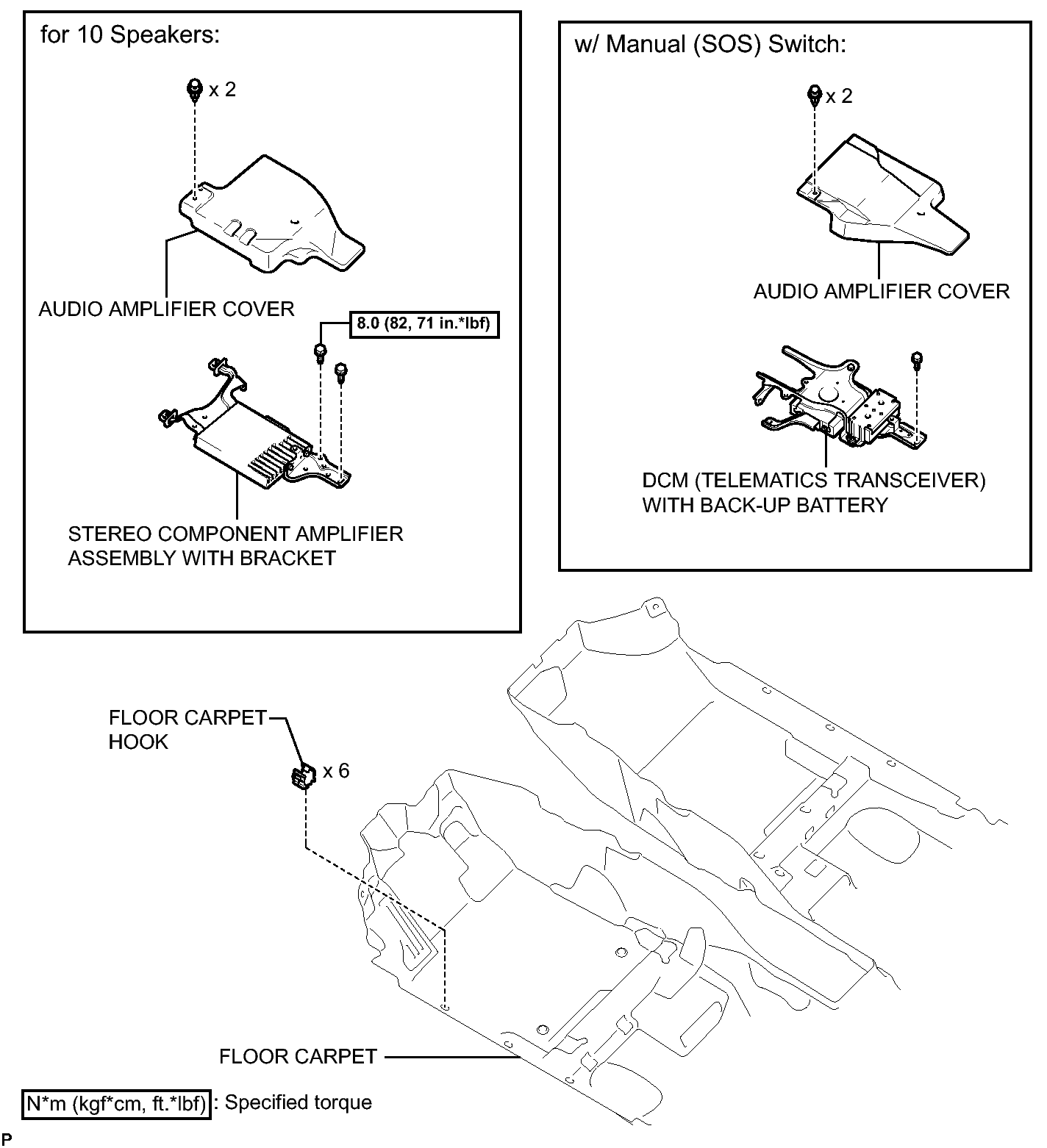

Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (3 Of 8)
GTY320471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Cable Replacement Components (4 Of 8)
GTY321087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (5 Of 8)
GTY322515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (6 Of 8)
GTY376792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (7 Of 8)
GTY318795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Parking Brake Cable Replacement Components With Torque Specifications (8 Of 8)
GTY319214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
