Installation [08/2013 - ]

1. Install the brake pedal support assembly with the 4 nuts.

   Torque: 13 N*m (131 kgf*cm, 9 ft.*lbf)

2. Engage the 3 clamps to install the wire harness to the brake pedal support assembly.
3. Connect the brake pedal load sensing switch connector and engage the clamp.

1. Install the brake pedal return spring to the brake pedal support assembly.

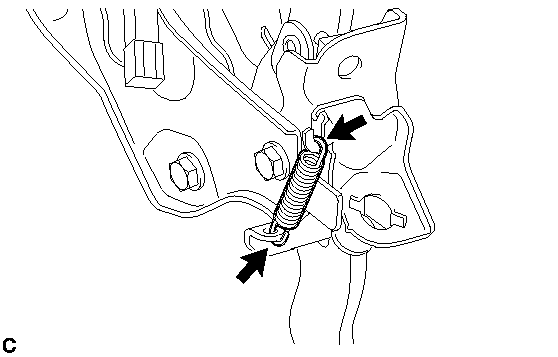

   Fig 1: Identifying Brake Pedal Return Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Attach the bottom part of the brake pedal return spring first, making sure that the open part of the hook is facing the rear of the vehicle. Attach the top part of the brake pedal return spring second, making sure that the open part of the hook is facing the front of the vehicle.

1. Apply lithium soap base glycol grease to the push rod pin.
   Fig 2: Identifying Push Rod Pin Grease Application Area

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   Lithium Soap Base Glycol Grease

2. Connect the brake master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip as shown in the illustration.
   NOTE:

   • Be sure to insert the pin with its clip end facing the outside of the vehicle.
   • Make sure that the brake master cylinder push rod clevis moves sideway.

Refer to INSTALLATION [08/2013 - ] - Step 3

Refer to ADJUSTMENT [08/2013 - ]
