DTC B2341: Sensor (Motor) Failure; DTC B2344: Position Failure [08/2013 - 12/2013]: Wiring Diagram

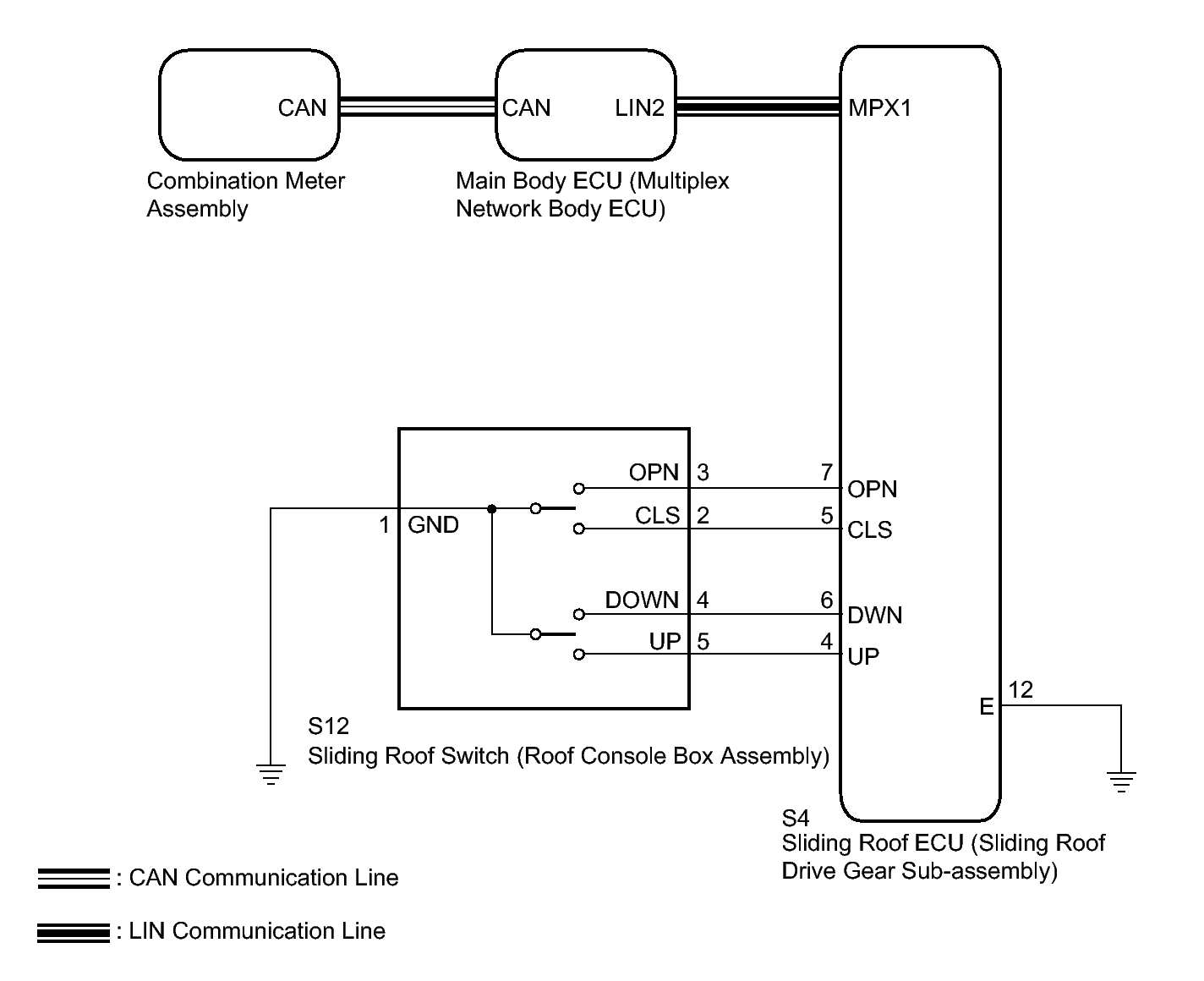

Fig 1: Sliding Roof ECU Circuit - Wiring Diagram

GTY425965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
