Front Passenger Side Seat Belt Warning Light Malfunction [08/2013 - 12/2013]: Wiring Diagram

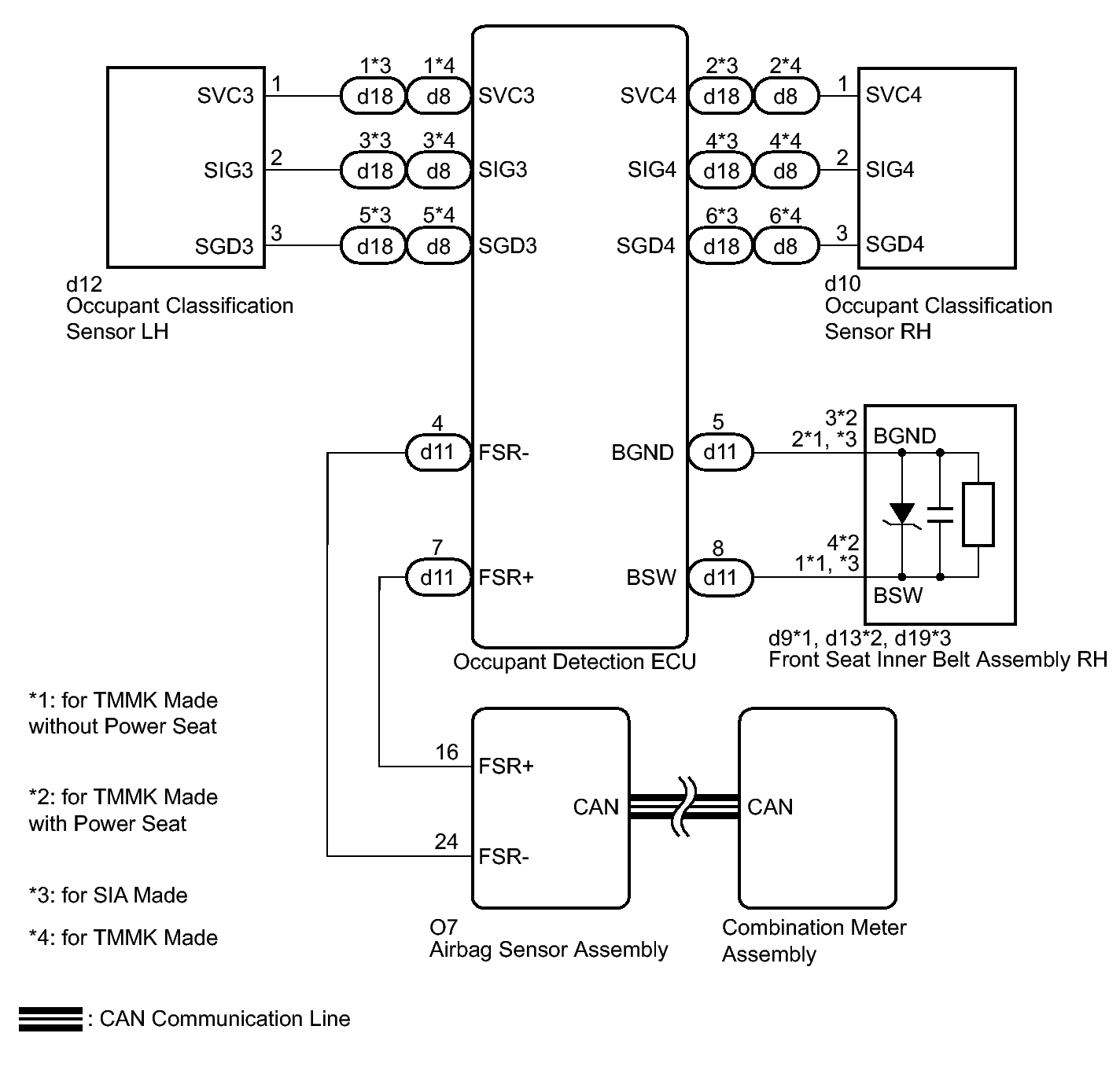

Fig 1: Front Passenger Side Seat Belt Warning Light Circuit - Wiring Diagram
GTY433700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
