Parts Location [08/2013 - ]: Illustration

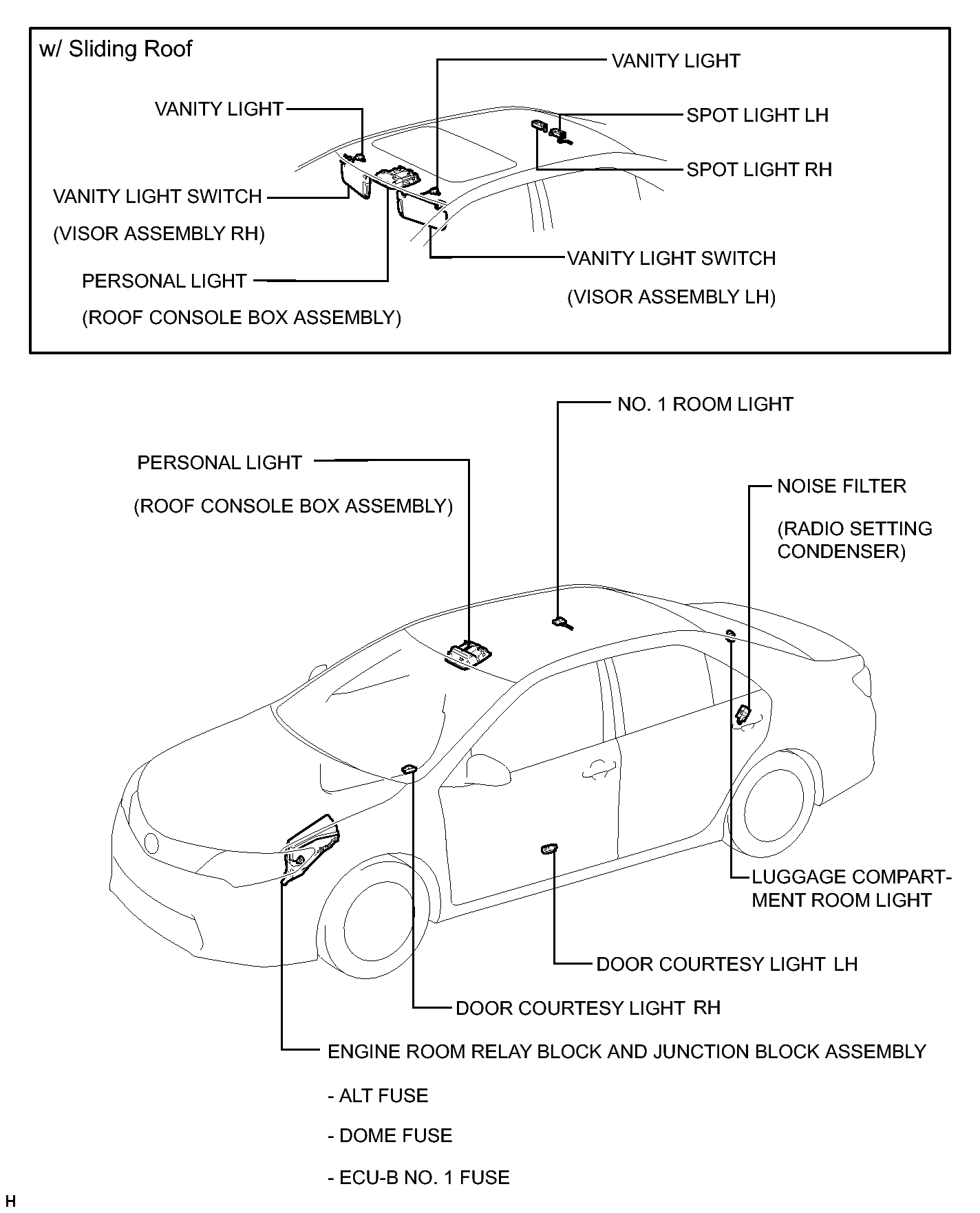

Fig 1: Identifying Lighting System Components Location (1 Of 3)
GTY315425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Lighting System Components Location (2 Of 3)
GTY321991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Lighting System Components Location (3 Of 3)
GTY320057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
