Interior Light Circuit [08/2013 - ]: Wiring Diagram

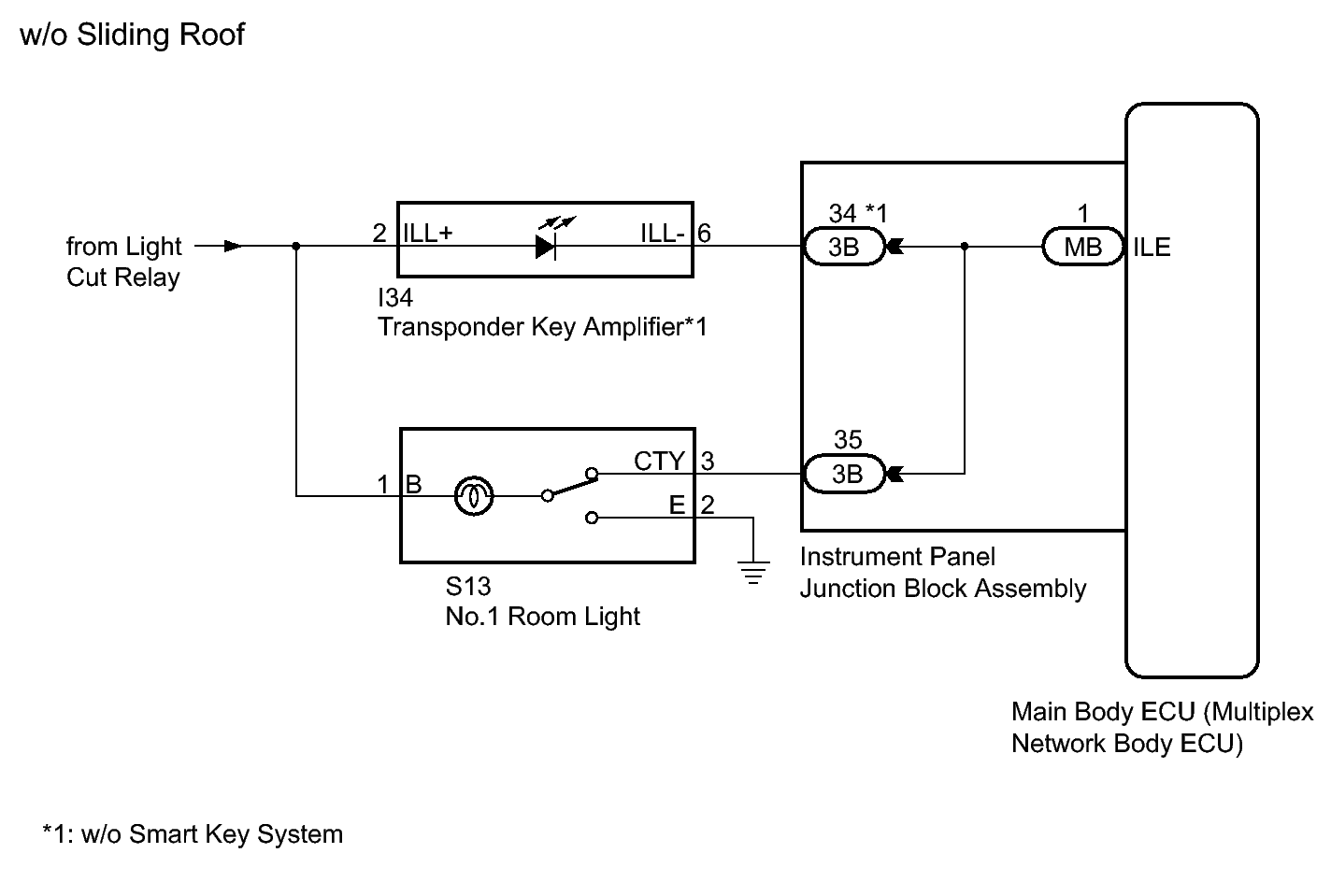

Fig 1: Interior Light Circuit - Wiring Diagram (1 Of 2)
GTY384375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

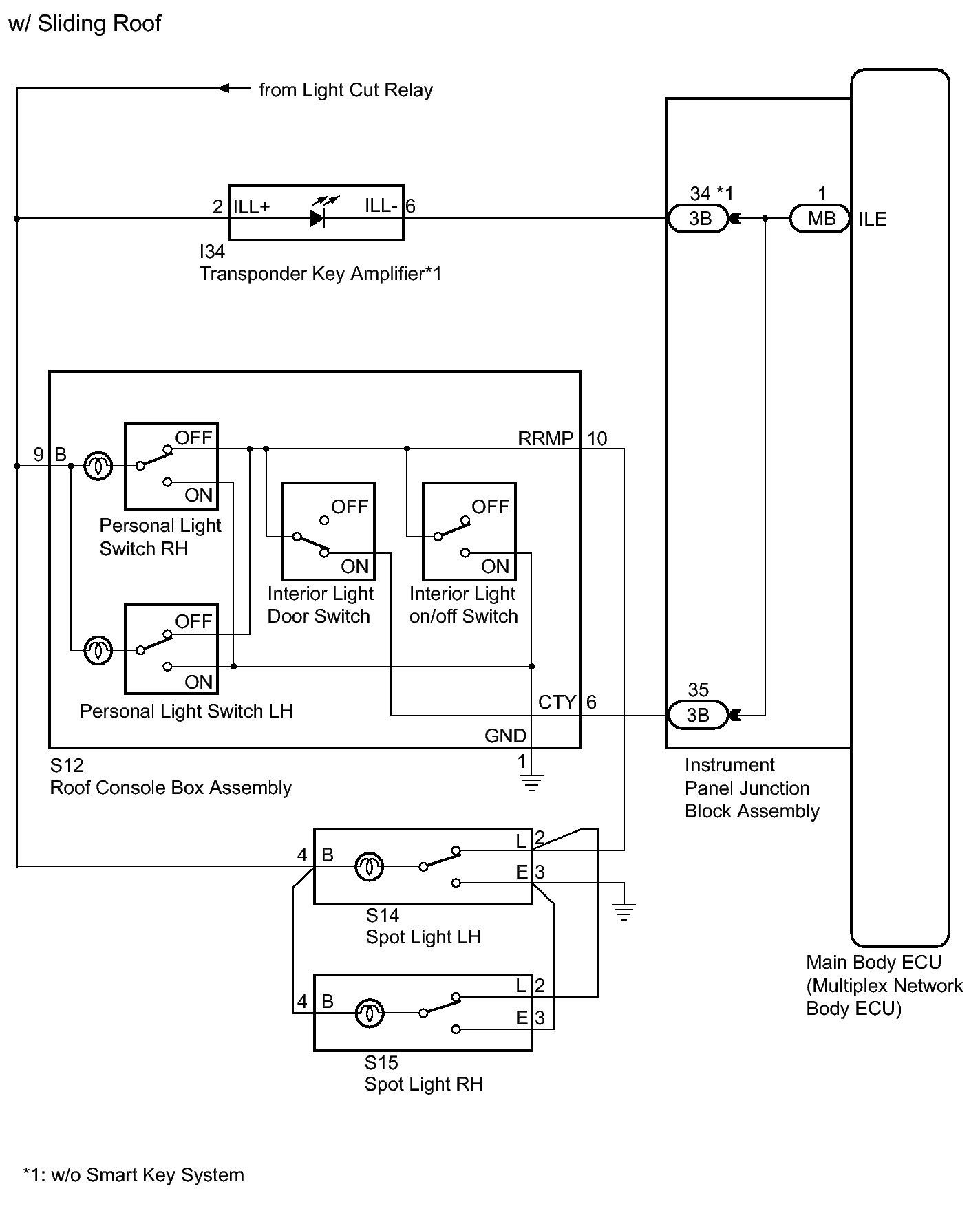

Fig 2: Interior Light Circuit - Wiring Diagram (2 Of 2)
GTY371950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
