Interior Light Auto Cut Circuit [08/2013 - ]: Wiring Diagram

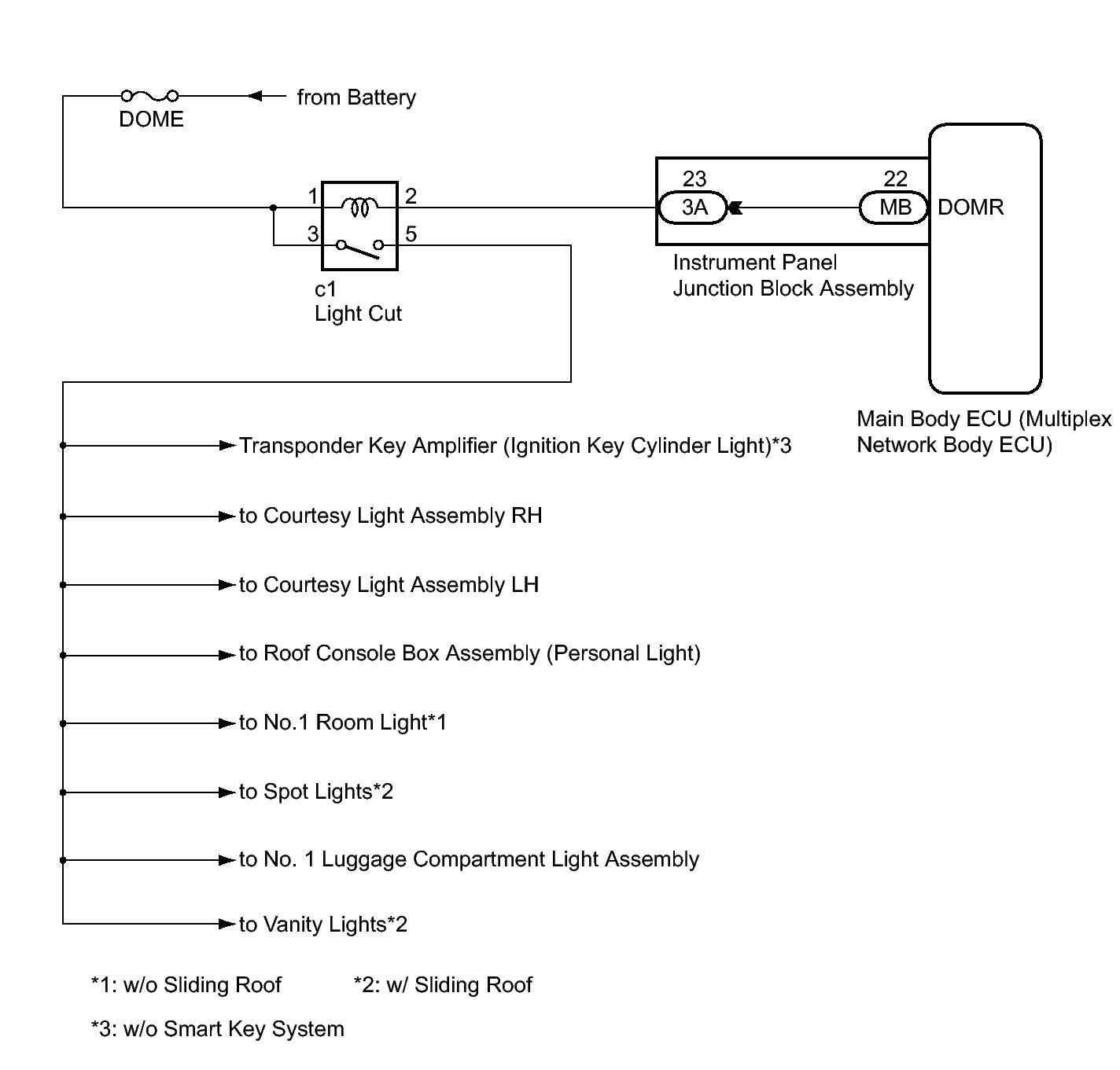

Fig 1: Interior Light Auto Cut Circuit - Wiring Diagram

GTY363701

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
