Front Door Courtesy Switch Circuit [08/2013 - ]: Wiring Diagram

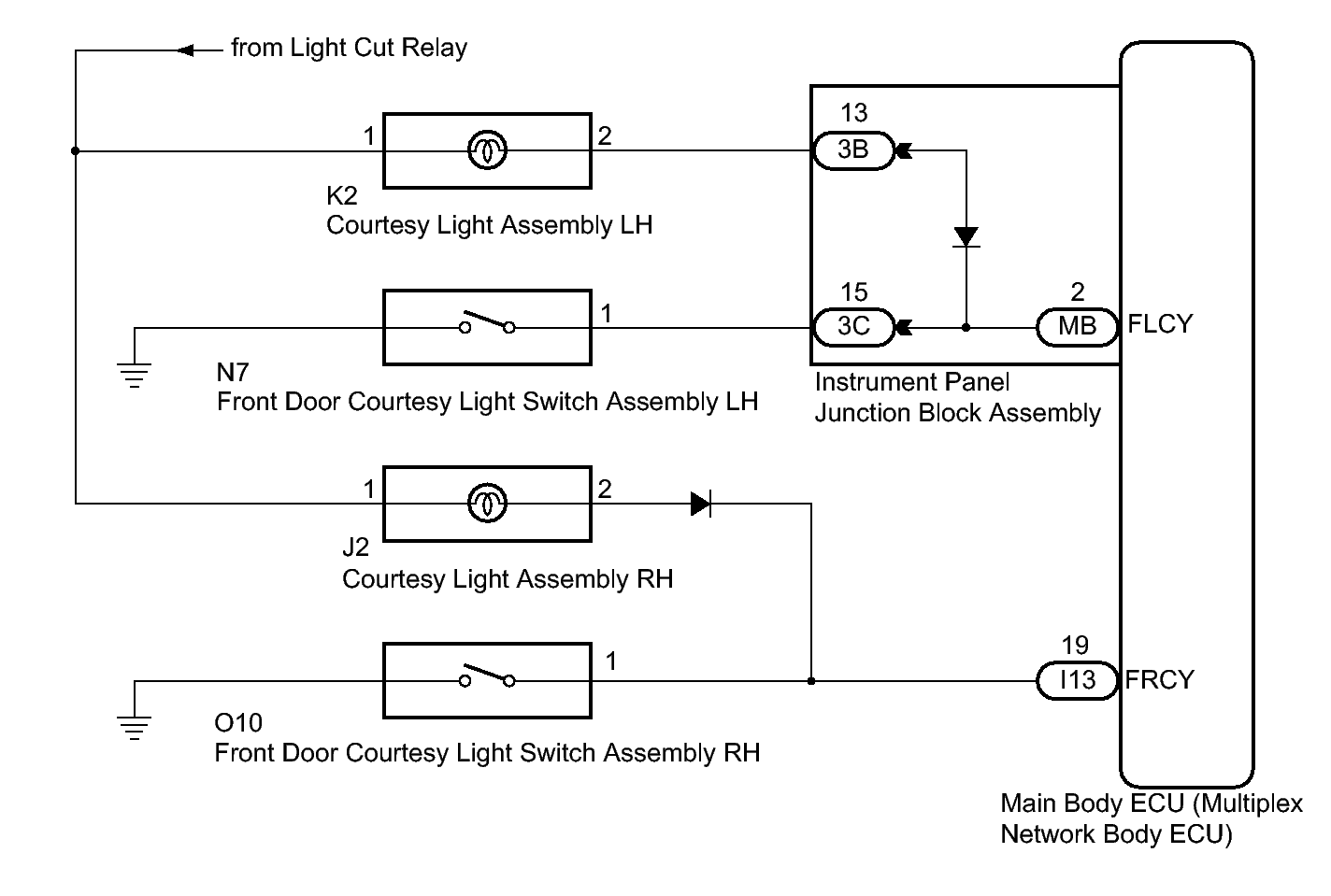

Fig 1: Front Door Courtesy Switch Circuit - Wiring Diagram

GTY315756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
