Door Unlock Detection Switch Circuit [08/2013 - ]: Wiring Diagram

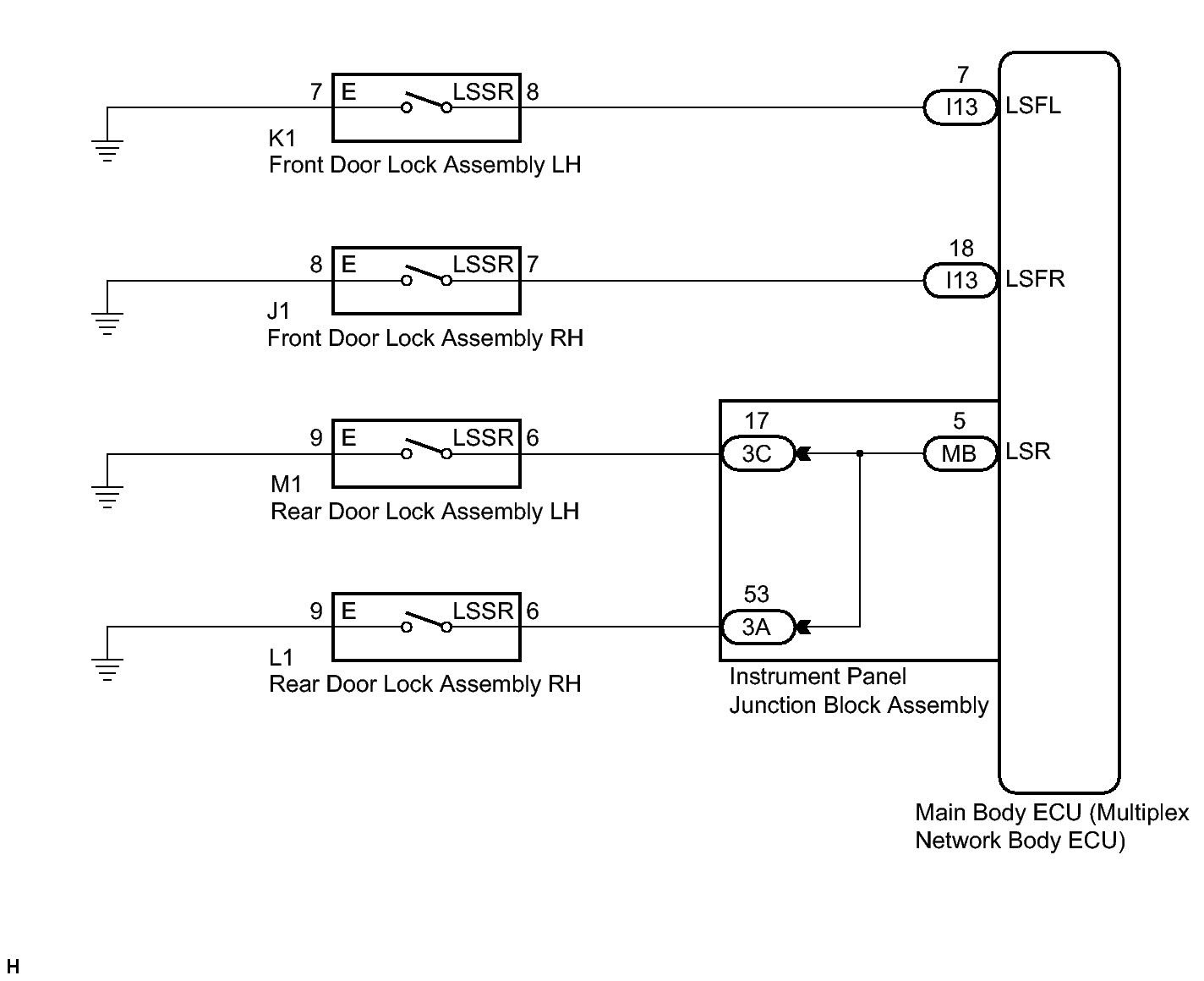

Fig 1: Door Unlock Detection Switch Circuit - Wiring Diagram

GTY319459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
