Removal [12/2013 - ]

  1. PRECAUTION (w/ Intuitive Parking Assist System)

    Refer to PRECAUTION [12/2013 - ]

    NOTE:
    • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work. Refer to PRECAUTION [12/2013 - ] .
    • A Hard Disk Drive (HDD) is built into the navigation receiver assembly to store multi-media data, and is used for the audio and visual system. Therefore, care must be taken when handling the navigation receiver assembly.
    • When removing the hard disk drive, eliminate static electricity by touching the vehicle body to prevent components from being damaged.
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Intuitive Parking Assist System)
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [12/2013 - ] .

  3. REMOVE REAR CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  4. REMOVE BOX BOTTOM MAT  . Refer to REMOVAL [12/2013 - ] - Step 25
  5. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL [12/2013 - ] - Step 26
  6. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  . Refer to REMOVAL [12/2013 - ] - Step 23
  7. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to REMOVAL [12/2013 - ] - Step 24
  8. REMOVE RADIO RECEIVER ASSEMBLY WITH AIR CONDITIONING CONTROL ASSEMBLY
    1. Apply protective tape to the area shown in the illustration.

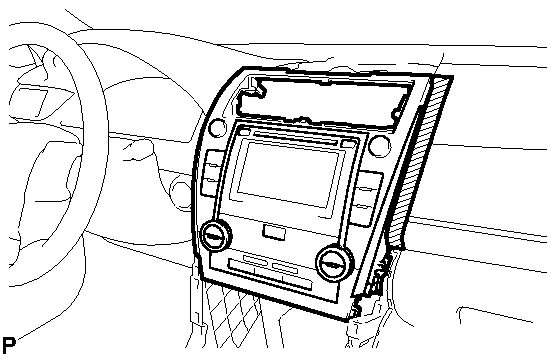

      Fig 1: Identifying Protective Tape Around Radio Receiver Assembly With Air Conditioning Control Assembly (For Radio And Display Type)
      GTY448453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Protective Tape
    2. Remove the 4 bolts.

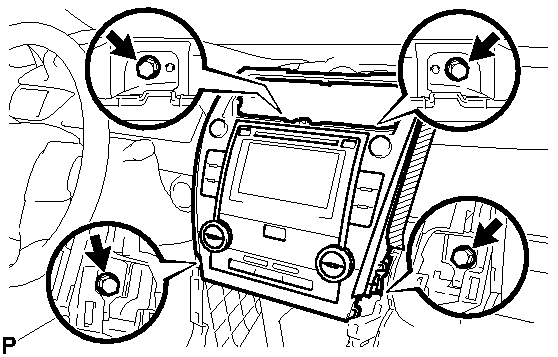

      Fig 2: Identifying Radio Receiver Assembly With Air Conditioning Control Assembly (For Radio And Display Type) Bolts
      GTY436639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull the radio receiver assembly with air conditioning control assembly toward the rear of the vehicle and disengage the 8 clips.

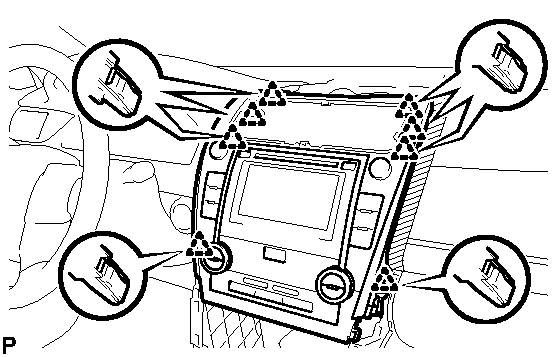

      Fig 3: Identifying Radio Receiver Assembly With Air Conditioning Control Assembly (For Radio And Display Type) Clips
      GTY438831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect each connector and remove the radio receiver assembly with air conditioning control assembly.
  9. REMOVE NO. 1 RADIO BRACKET
    1. w/o Satellite Radio:
      1. Remove the 5 screws and No. 1 radio bracket.

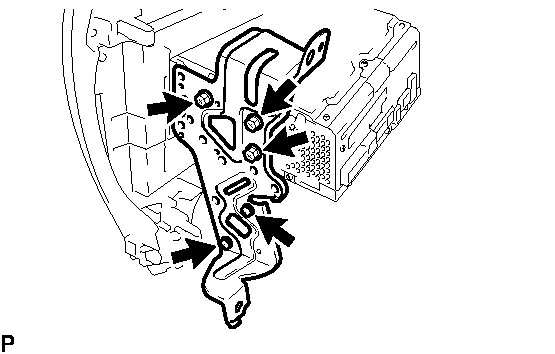

        Fig 4: Locating No. 1 Radio Bracket Fasteners (For Radio Receiver Type)
        GTY431320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Satellite Radio:
      1. Remove the 7 screws and No. 1 radio bracket.

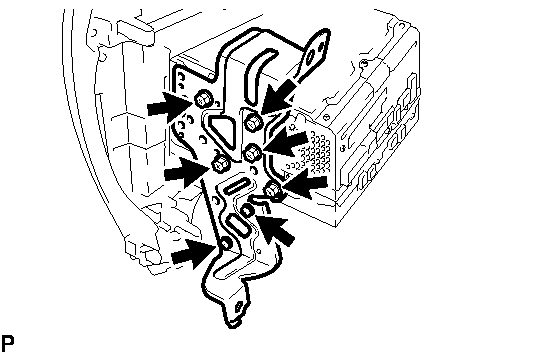

        Fig 5: Locating No. 1 Radio Bracket Fasteners (For Radio And Display Type) (w/ Navigation System)
        GTY452034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 RADIO BRACKET
    1. w/o Satellite Radio:
      1. Remove the 5 screws and No. 2 radio bracket.

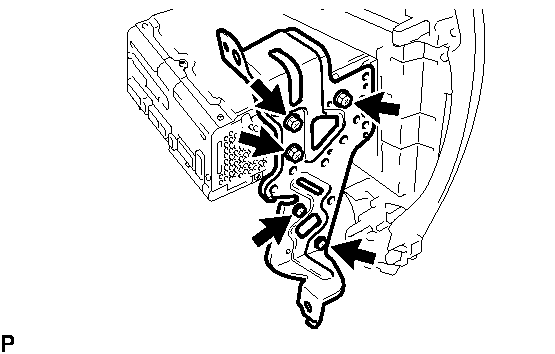

        Fig 6: Locating No. 2 Radio Bracket Fasteners (For Radio And Display Type) (w/o Navigation System)
        GTY431321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Satellite Radio:
      1. Remove the 7 screws and No. 2 radio bracket.

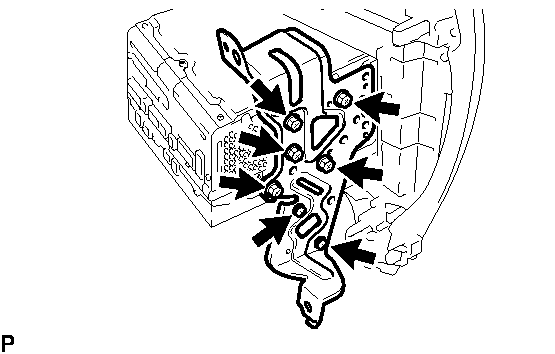

        Fig 7: Locating No. 2 Radio Bracket Fasteners (For Radio And Display Type) (w/ Navigation System)
        GTY431323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE AIR CONDITIONING CONTROL ASSEMBLY  . Refer to REMOVAL [12/2013 - ] - Step 15
  12. REMOVE NO. 1 NAVIGATION WIRE (w/ Satellite Radio)  See step  13
  13. REMOVE STEREO COMPONENT TUNER ASSEMBLY (w/ Satellite Radio)
  14. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (w/o Intuitive Parking Assist System)
  15. REMOVE HARD DISK DRIVE (w/ Intuitive Parking Assist System)  . Refer to REMOVAL [12/2013 - ] - Step 10
  16. REMOVE NAVIGATION ECU SUB-ASSEMBLY (w/ Intuitive Parking Assist System)
