Parts Location [08/2013 - ]: Illustration

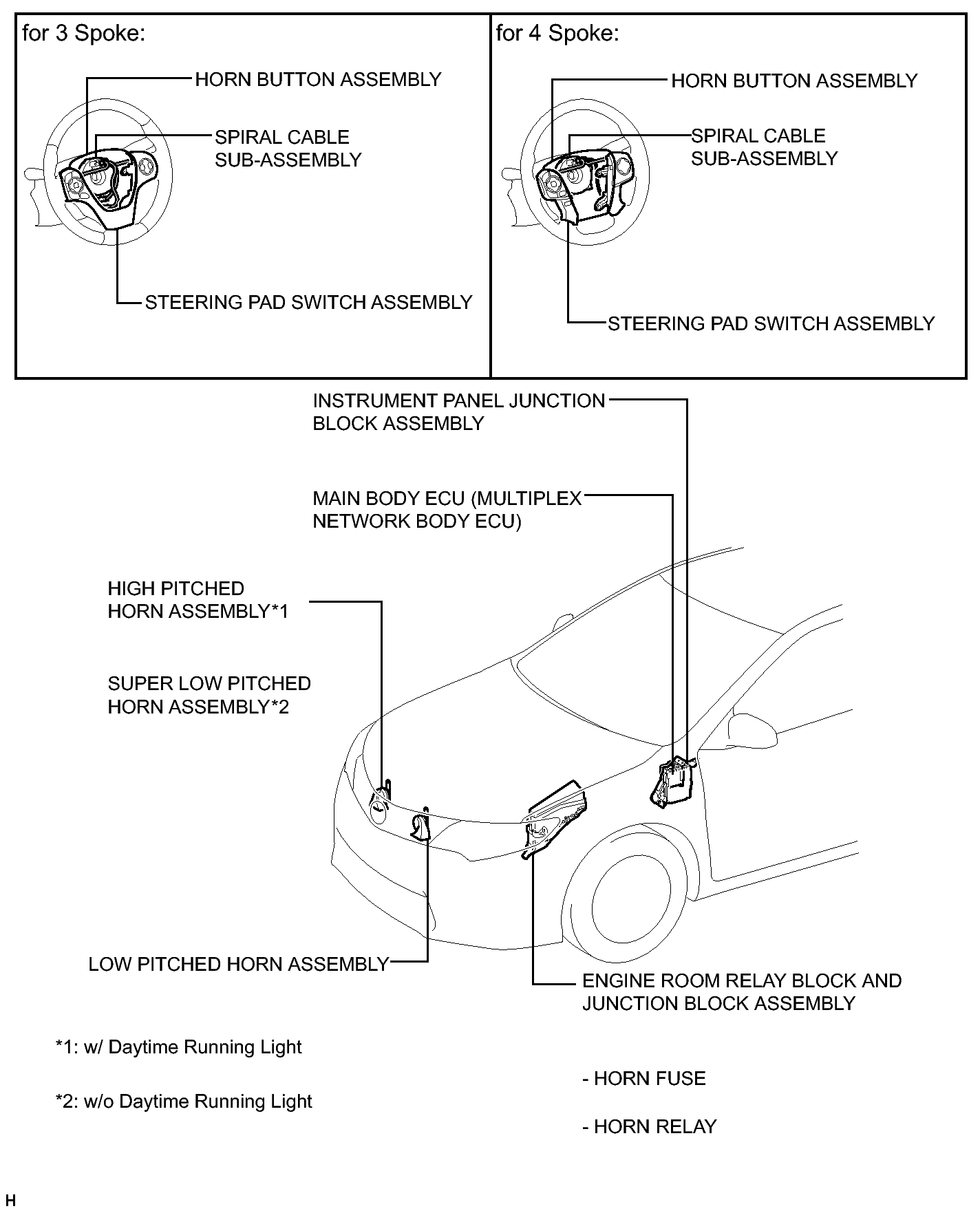

Fig 1: Identifying Horn System Components Location

GTY451495

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
