Parts Location [08/2013 - 12/2013]: Illustration

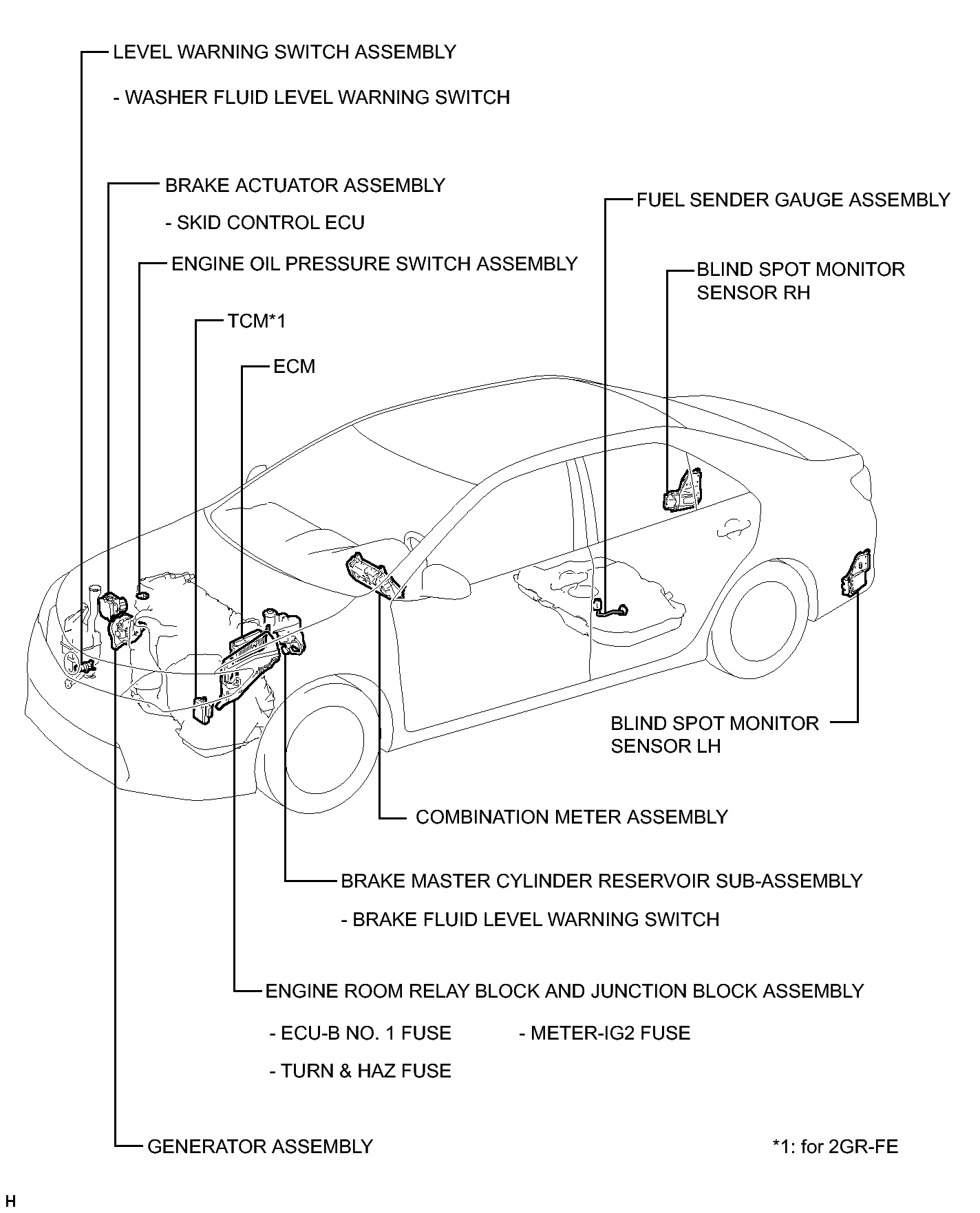

Fig 1: Identifying Meter / Gauge System Components Location (1 Of 4)
GTY432049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

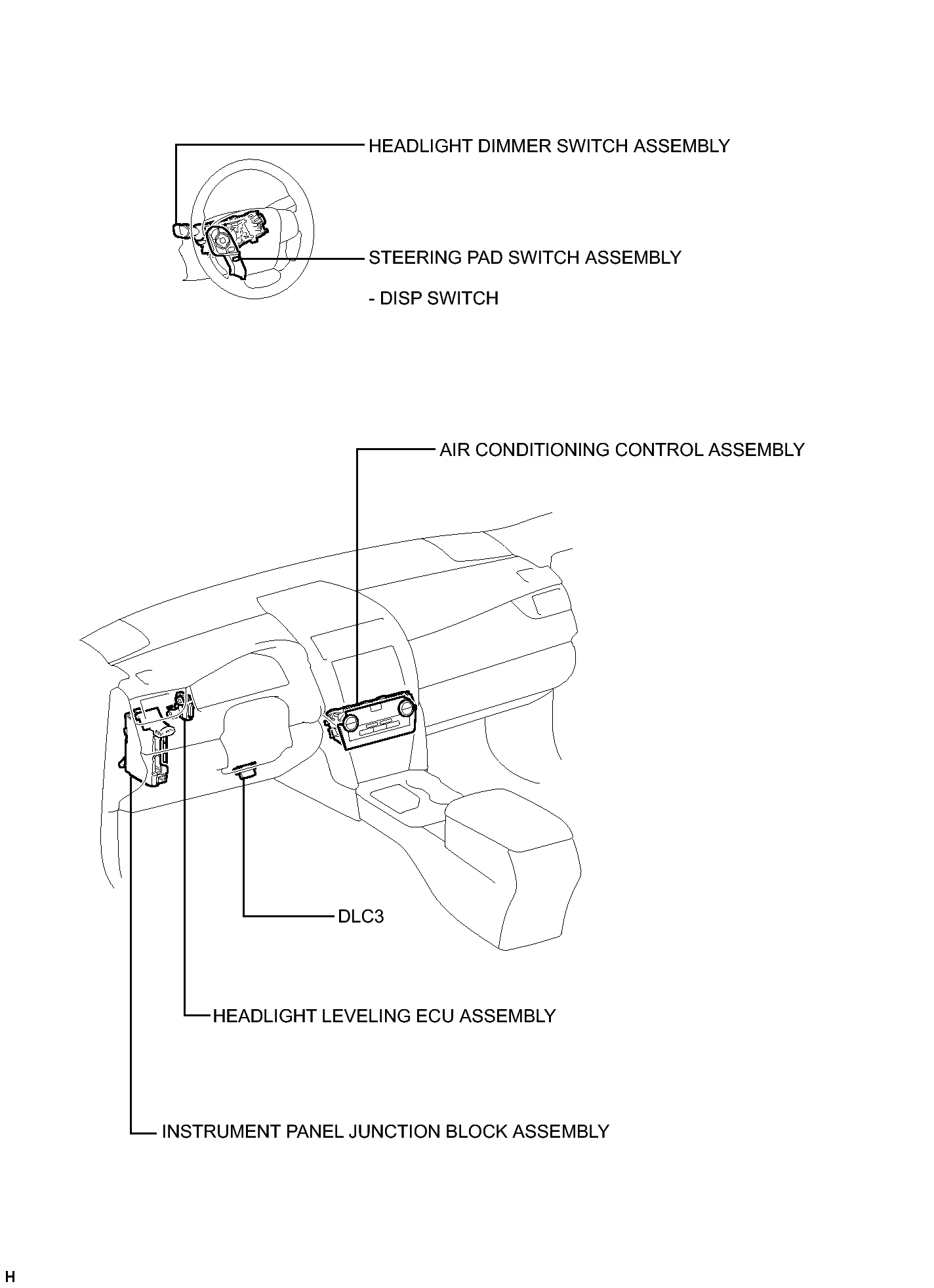

Fig 1: Identifying Meter / Gauge System Components Location (2 Of 4)
GTY452603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

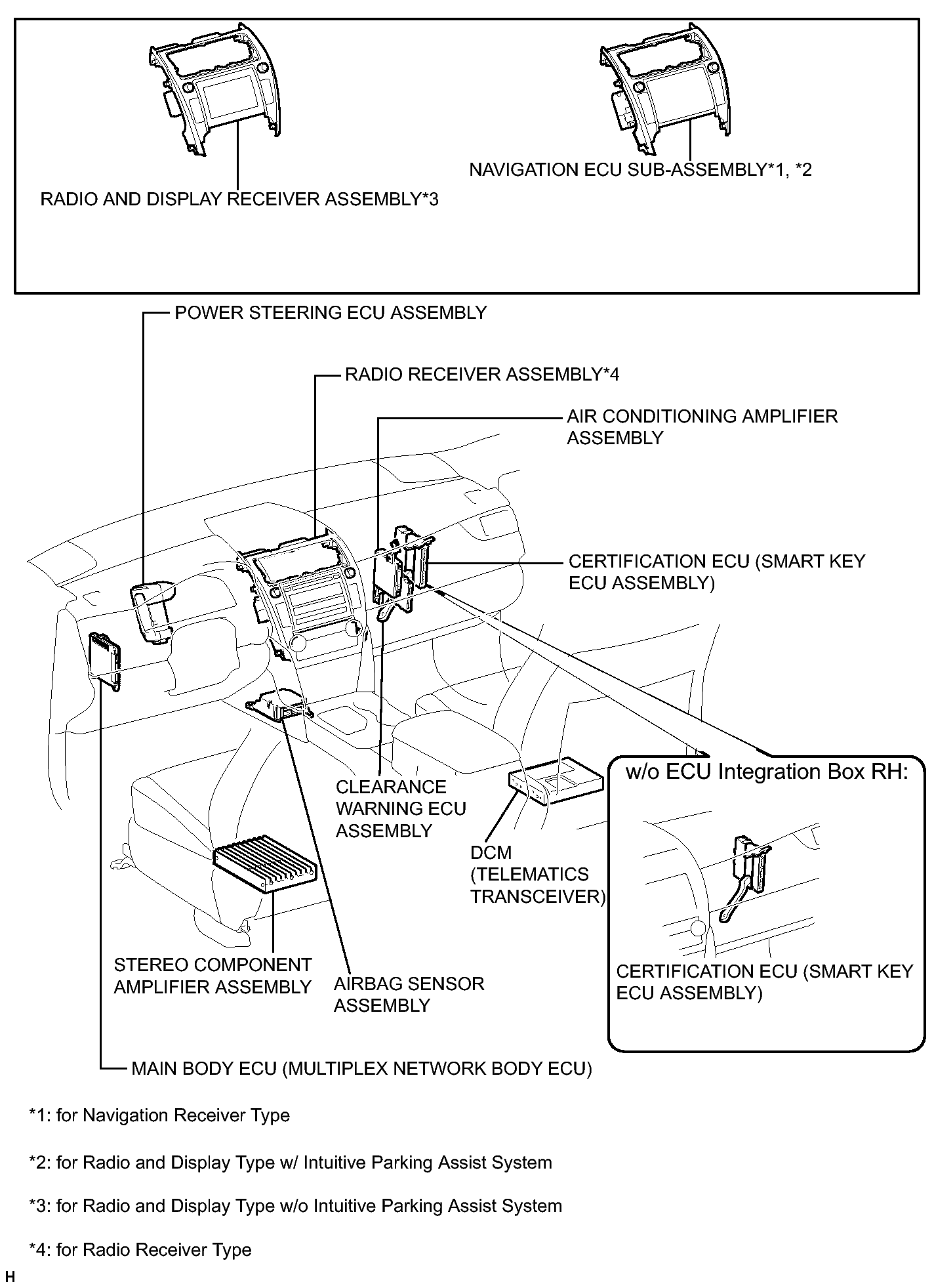

Fig 1: Identifying Meter / Gauge System Components Location (3 Of 4)
GTY316679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

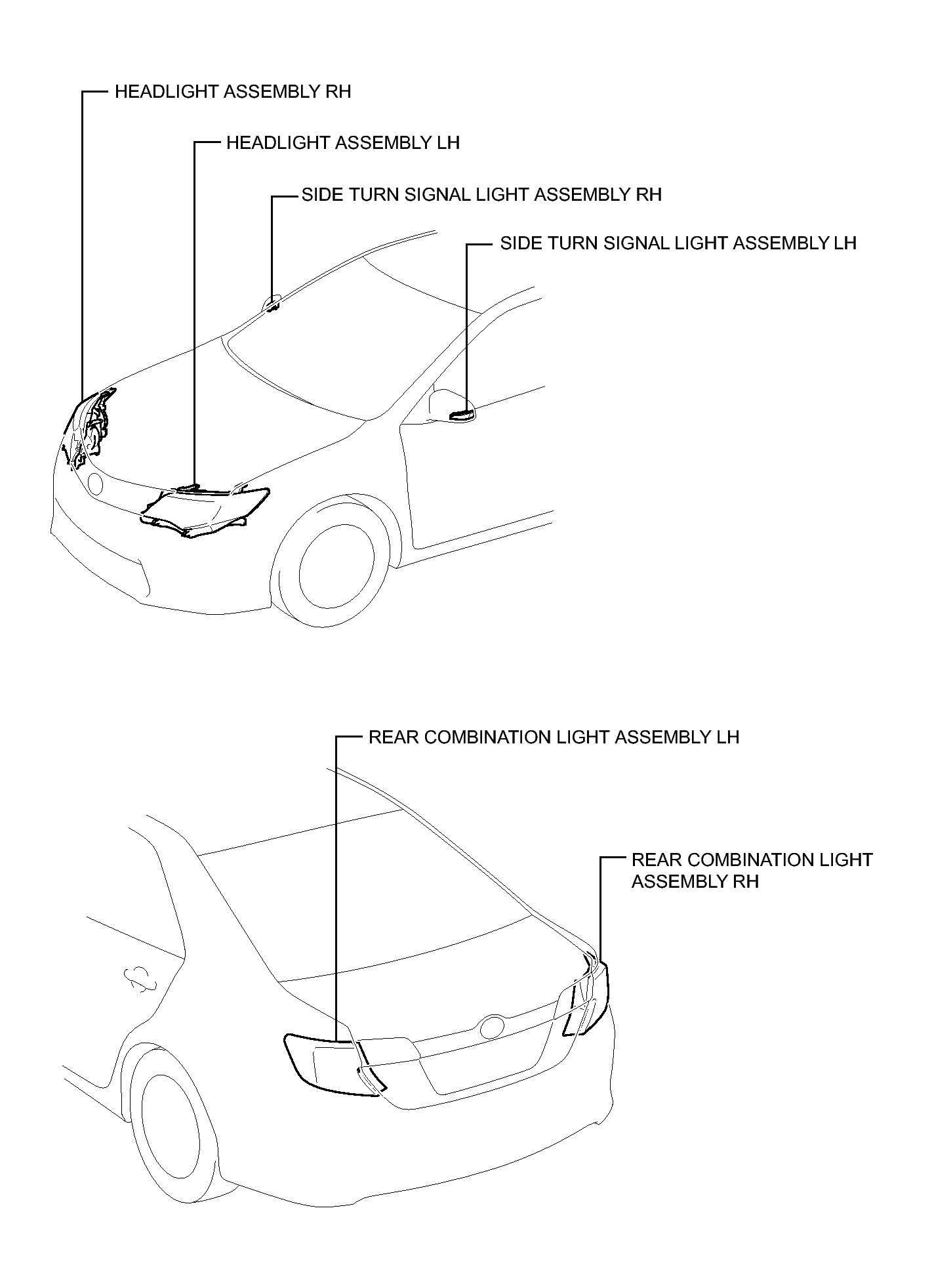

Fig 1: Identifying Meter / Gauge System Components Location (4 Of 4)
GTY434664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
