Components [08/2013 - 12/2013]: Illustration

Fig 1: Identifying Rear Combination Light Assembly Replacement Components (1 Of 2)
GTY371022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

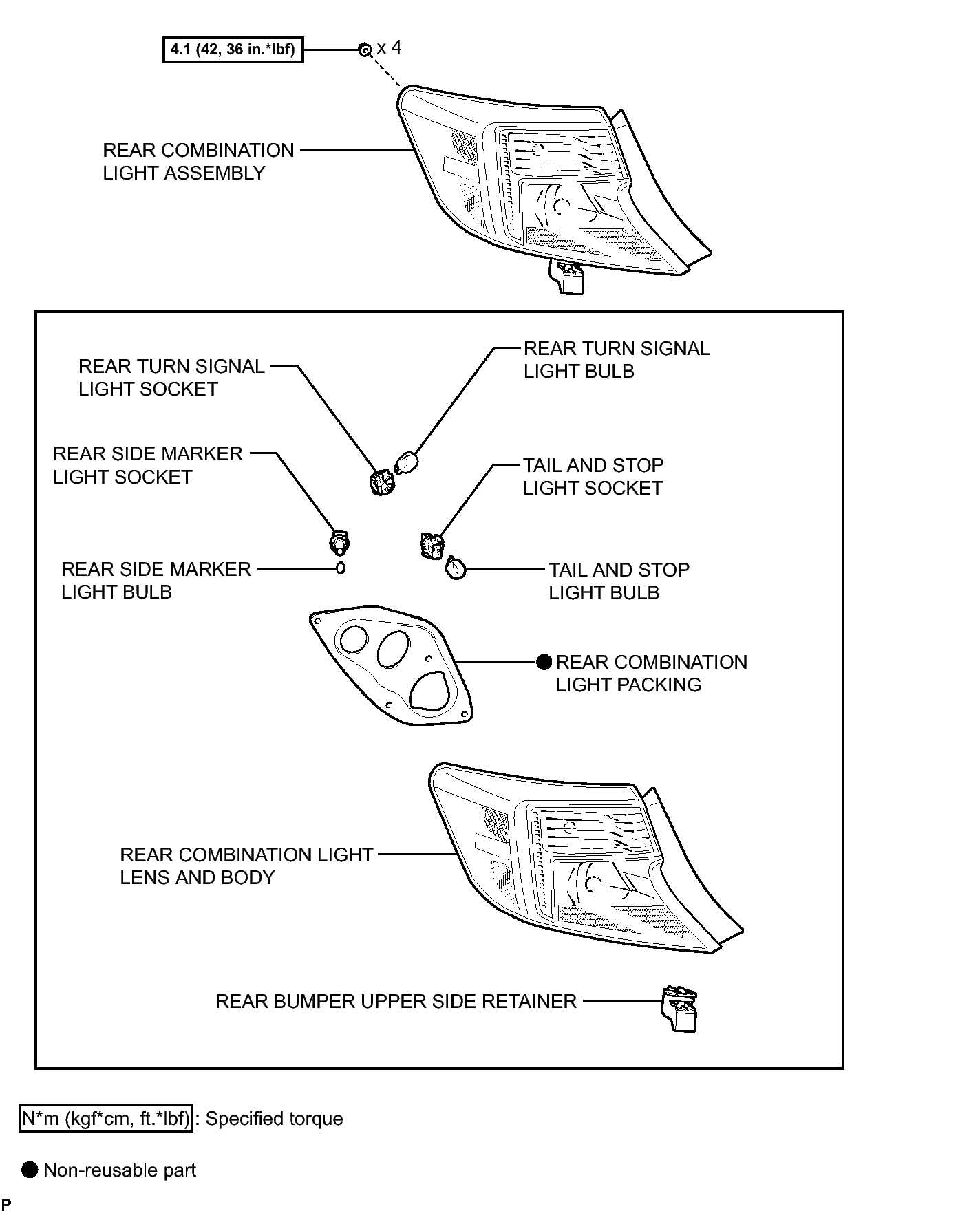

Fig 1: Identifying Rear Combination Light Assembly Replacement Components With Torque Specifications (2 Of 2)
GTY440705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
