Removal [08/2013 - ]

  1. REMOVE SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to REMOVAL [08/2013 - ]

  2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY  . Refer to REMOVAL [08/2013 - ] - Step 3
  3. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
    1. Disconnect the connector.

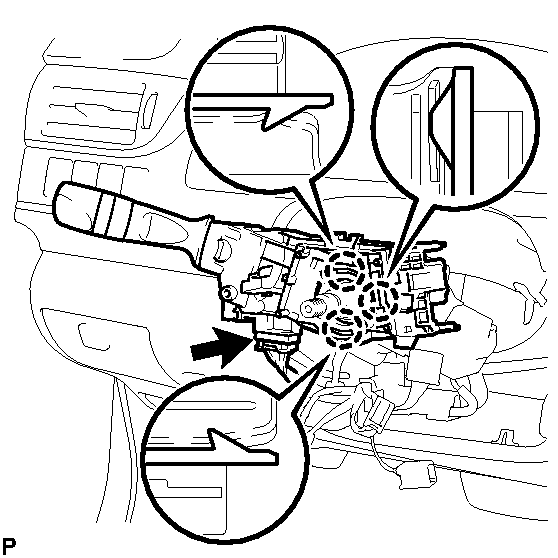

      Fig 1: Identifying Headlight Dimmer Switch Assembly
      GTY323160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disengage the 3 claws and remove the headlight dimmer switch assembly.
