Installation [10/2013 - ]

HINT:

• Use the same procedure for the RH side and LH side.
• The procedure listed below is for the LH side.

1. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY
   1. Temporarily install the rear No. 2 suspension arm assembly (inner side) to the rear suspension member sub-assembly with the bolt.
      Fig 1: Identifying Rear No. 2 Suspension Arm Assembly Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      	Bolt
      	Paint Mark

      HINT:

      Ensure that the paint mark is facing the rear of the vehicle.

2. CONNECT REAR NO. 2 SUSPENSION ARM ASSEMBLY  . Refer to INSTALLATION [10/2013 - ] - Step 3
3. STABILIZE SUSPENSION  . Refer to INSTALLATION [10/2013 - ] - Step 10
4. FULLY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY
   1. Using SST, fully install the rear No. 2 suspension arm assembly (inner side) with the bolt.
      • SST: 09961-00950

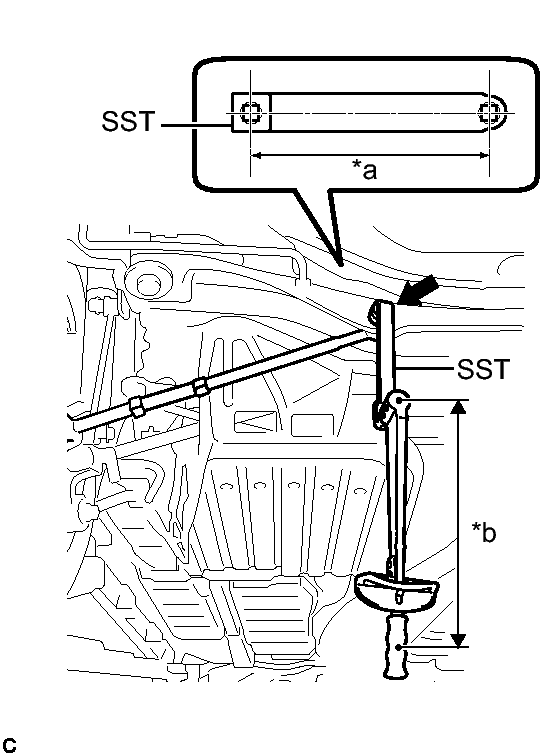

      Fig 2: Identifying Fulcrum Length of SST

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *a	Fulcrum Length of SST: 150 mm (0.49 ft.)
      *b	Fulcrum Length of Torque Wrench: 380 mm (1.25 ft.)

      without SST

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

      with SST

      Torque: 72 N*m (731 kgf*cm, 53 ft.*lbf)

      NOTE:

      This torque value is effective when SST is parallel to the torque wrench.

   2. Fully install the rear No. 2 suspension arm assembly (outer side) with the bolt.

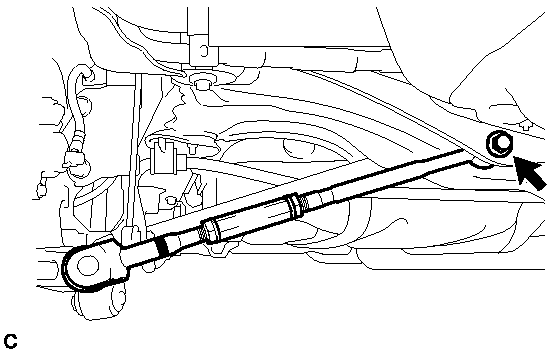

      Fig 3: Identifying Rear No. 2 Suspension Arm Assembly (Outer Side) Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

5. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY (w/ Height Control Sensor)

   Refer to INSTALLATION [10/2013 - ]

   HINT:

   It is necessary to install the rear height control sensor sub-assembly when installing the rear No. 2 suspension arm assembly RH.

6. INSTALL CENTER EXHAUST PIPE ASSEMBLY

   Refer to INSTALLATION [10/2013 - ] - Step 7

7. INSTALL REAR WHEEL

   Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)

8. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

   Refer to ADJUSTMENT [10/2013 - ]
