SRS Warning Light does not Come ON [10/2013 - ]: Wiring Diagram

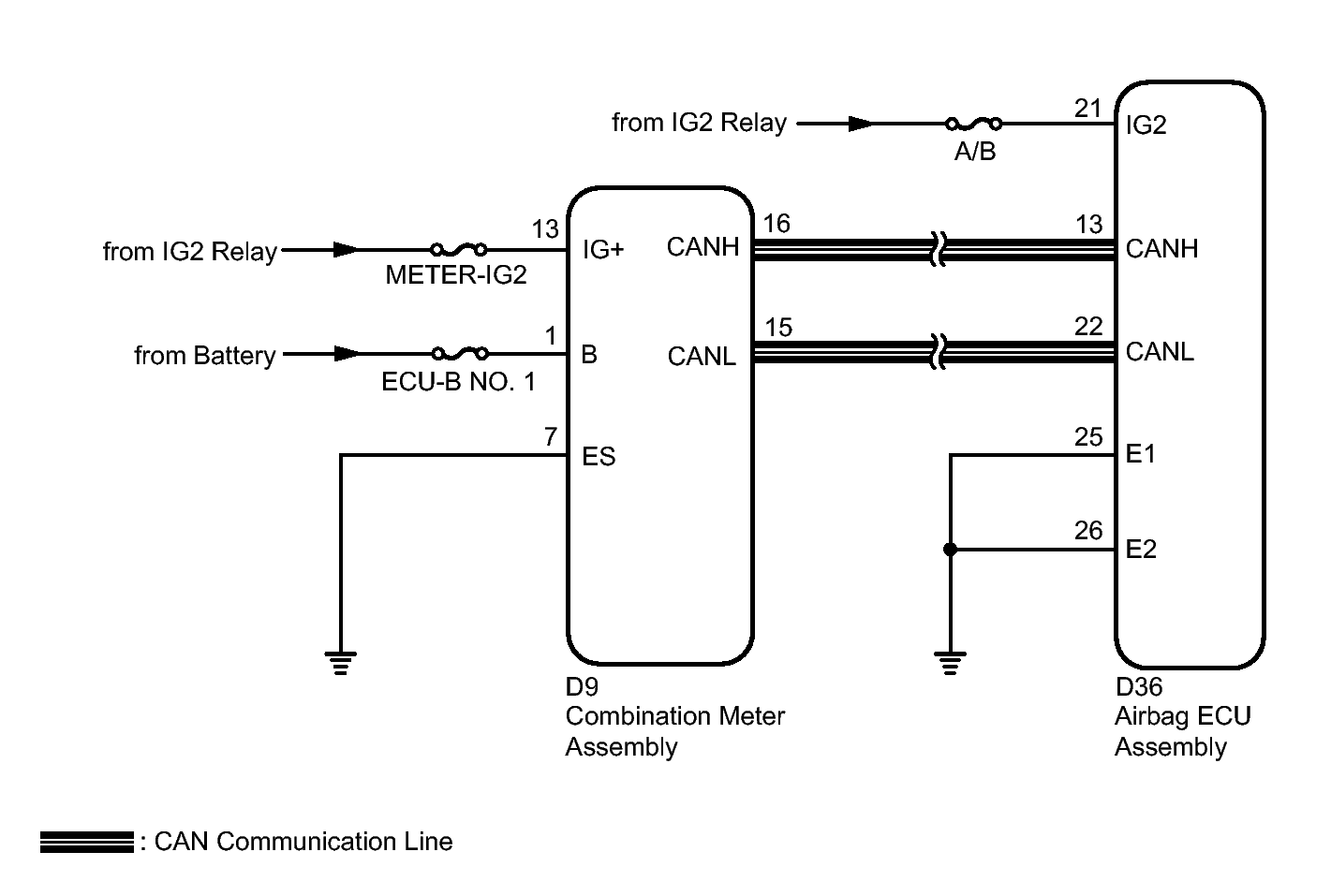

Fig 1: SRS Warning Light Wiring Diagram

GTY382059

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
