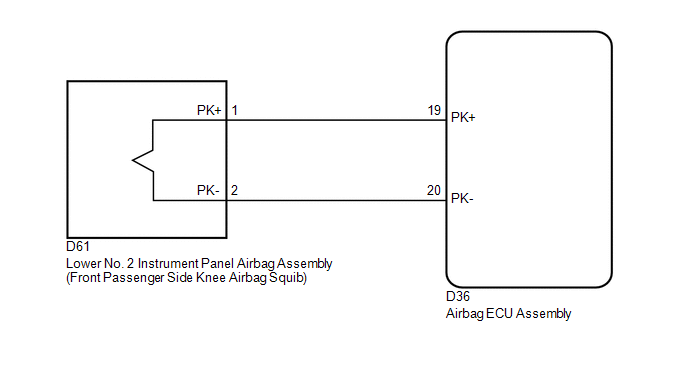

DTC B1865/65: Short in Front Passenger Side Knee Airbag Squib Circuit; DTC B1866/65: Open in Front Passenger Side Knee Airbag Squib Circuit; DTC B1867/65: Short to GND in Front Passenger Side Knee Airbag Squib Circuit; DTC B1868/65: Short to B+ in Front Passenger Side Knee Airbag Squib Circuit [10/2013 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
