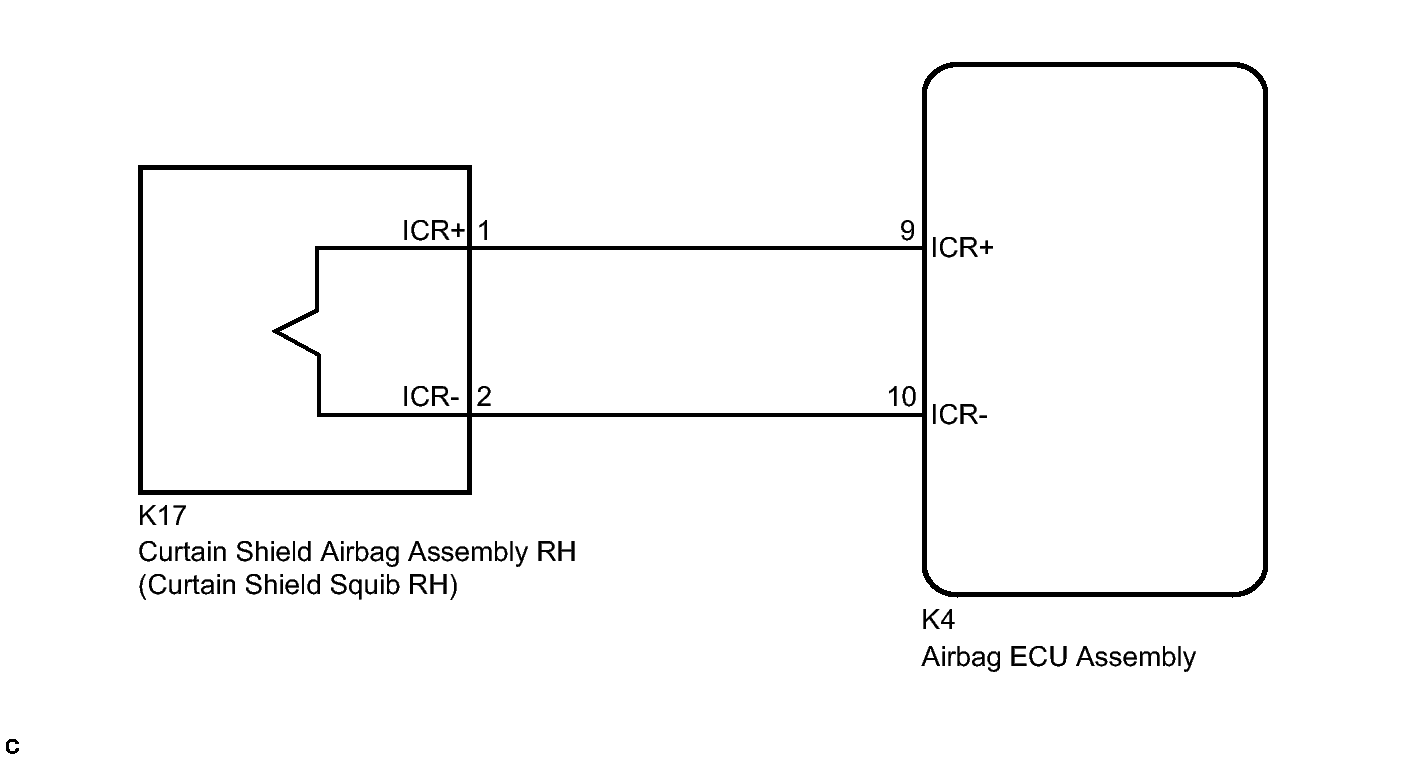

DTC B1830/57: Short in Curtain Shield Squib RH Circuit; DTC B1831/57: Open in Curtain Shield Squib RH Circuit; DTC B1832/57: Short to GND in Curtain Shield Squib RH Circuit; DTC B1833/57: Short to B+ in Curtain Shield Squib RH Circuit [10/2013 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
