DTC B1660/43: Passenger Airbag ON/OFF Indicator Circuit Malfunction [10/2013 - ]: Wiring Diagram

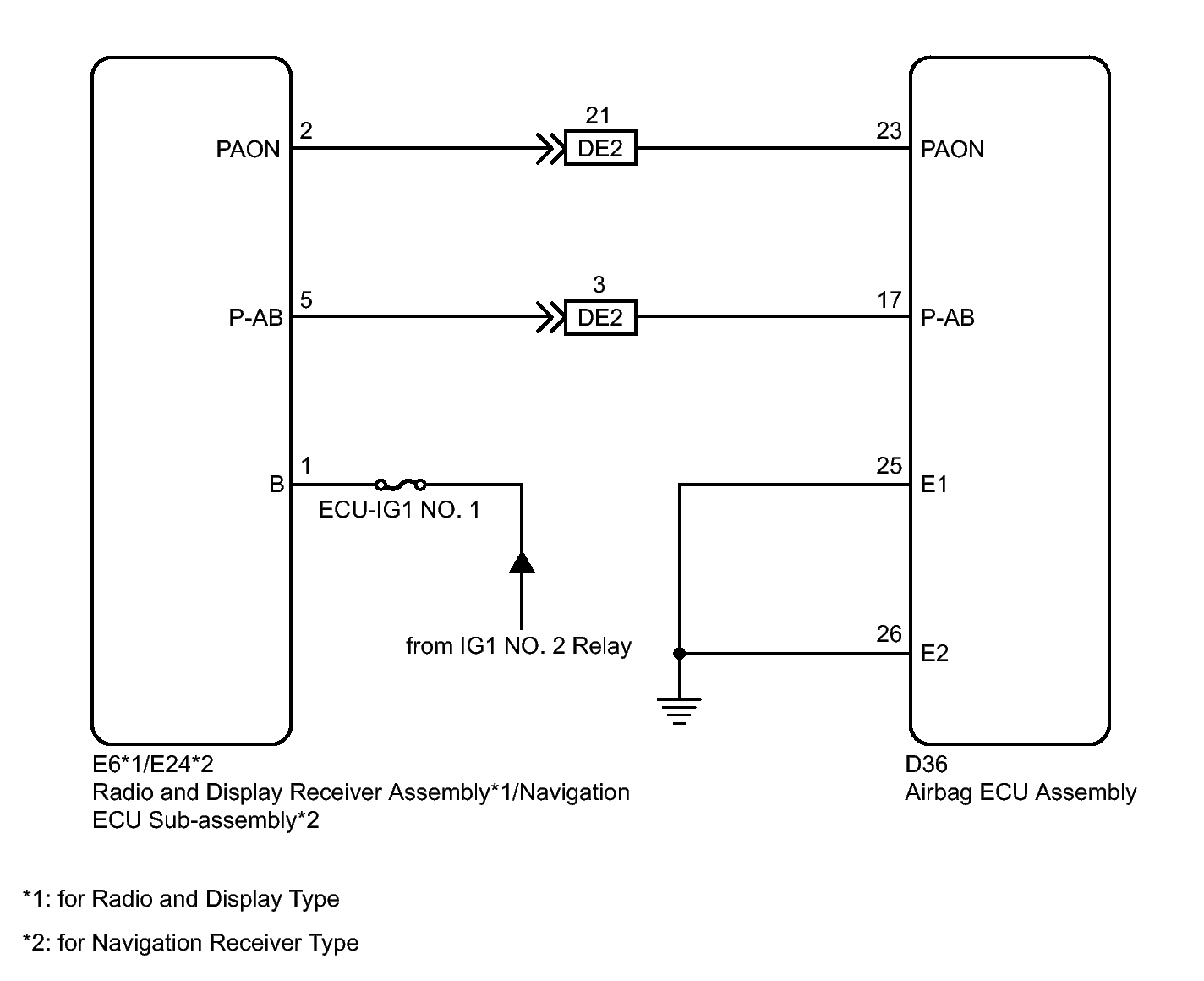

Fig 1: Passenger Airbag ON/OFF Indicator Wiring Diagram

GTY369648

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
