DTC B1653/35: Seat Position Airbag Sensor Circuit Malfunction [10/2013 - ]: Wiring Diagram

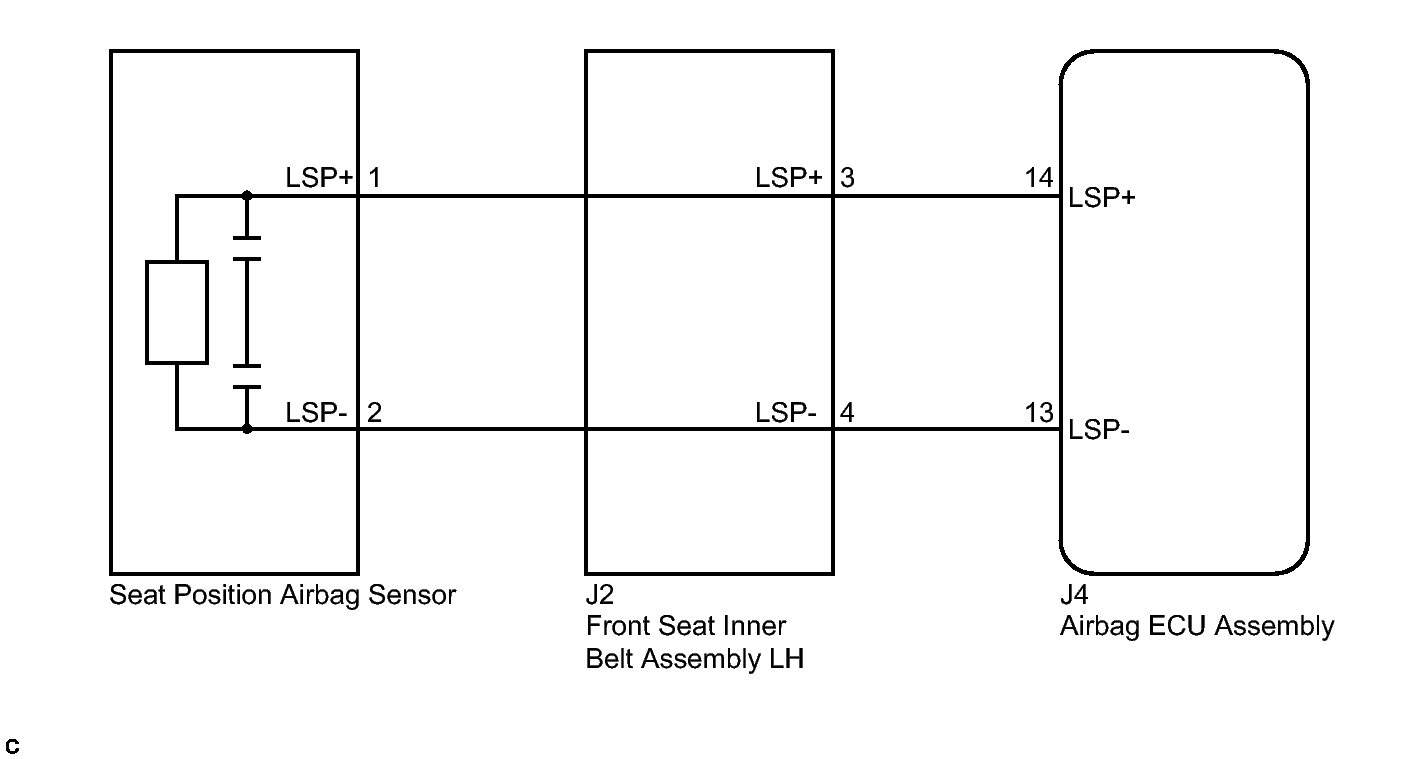

Fig 1: Seat Position Airbag Sensor Wiring Diagram

GTY370809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
