DTC B1625/22: Side Airbag Sensor LH Circuit Malfunction [10/2013 - ]: Wiring Diagram

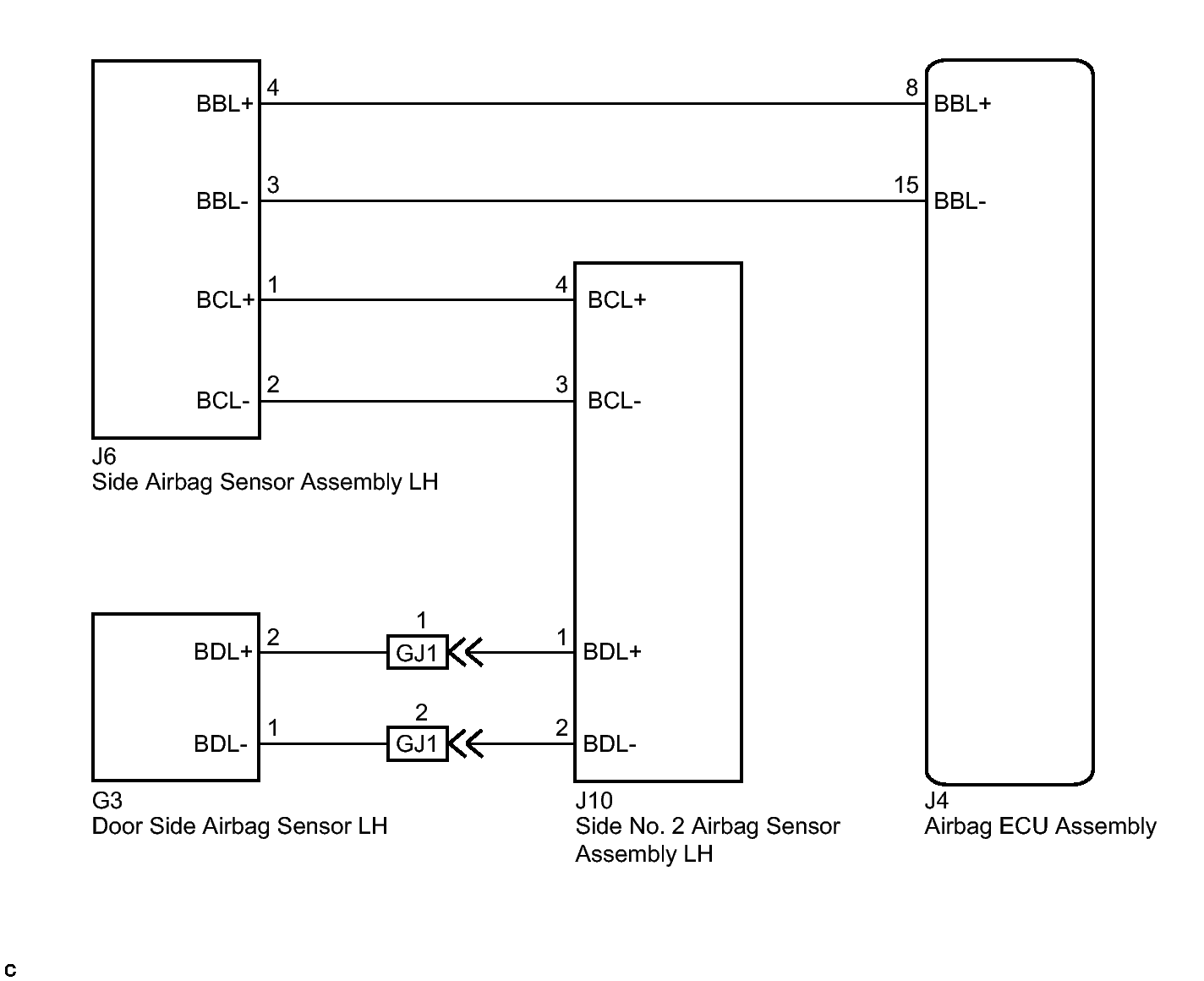

Fig 1: Side Airbag Sensor LH Wiring Diagram

GTY374201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
