DTC B1615/14: Front Airbag Sensor LH Circuit Malfunction [10/2013 - ]: Wiring Diagram

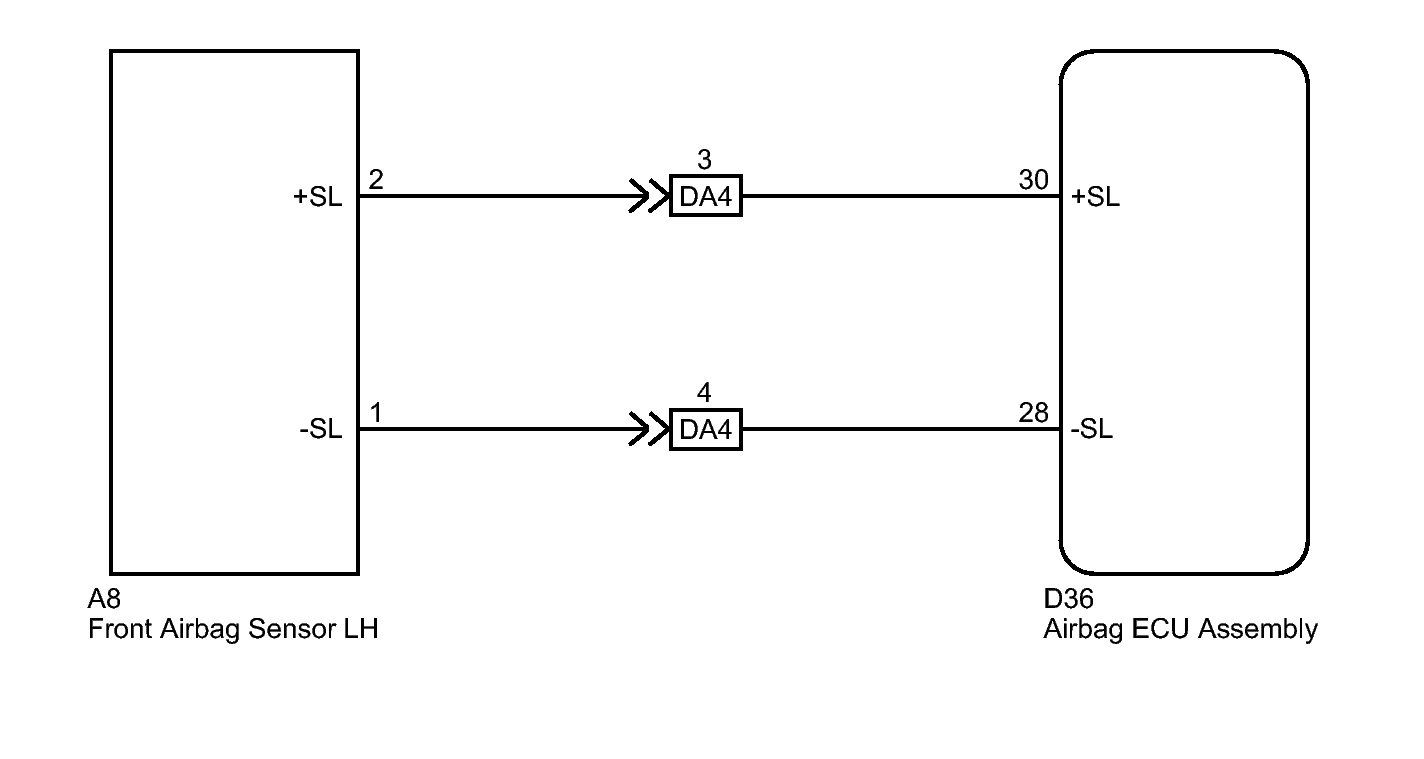

Fig 1: Front Airbag Sensor LH Wiring Diagram

GTY383737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
