Section 74 (Hybrid Battery System (Diagnostic Codes (P0A7F-123 - U029A-123)) (Hybrid))
>>
Hybrid Battery System
>>
DTC P0AFC-123: Hybrid Battery Pack Sensor Module [10/2013 - ]
>>
Wiring Diagram
DTC P0AFC-123: Hybrid Battery Pack Sensor Module [10/2013 - ]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

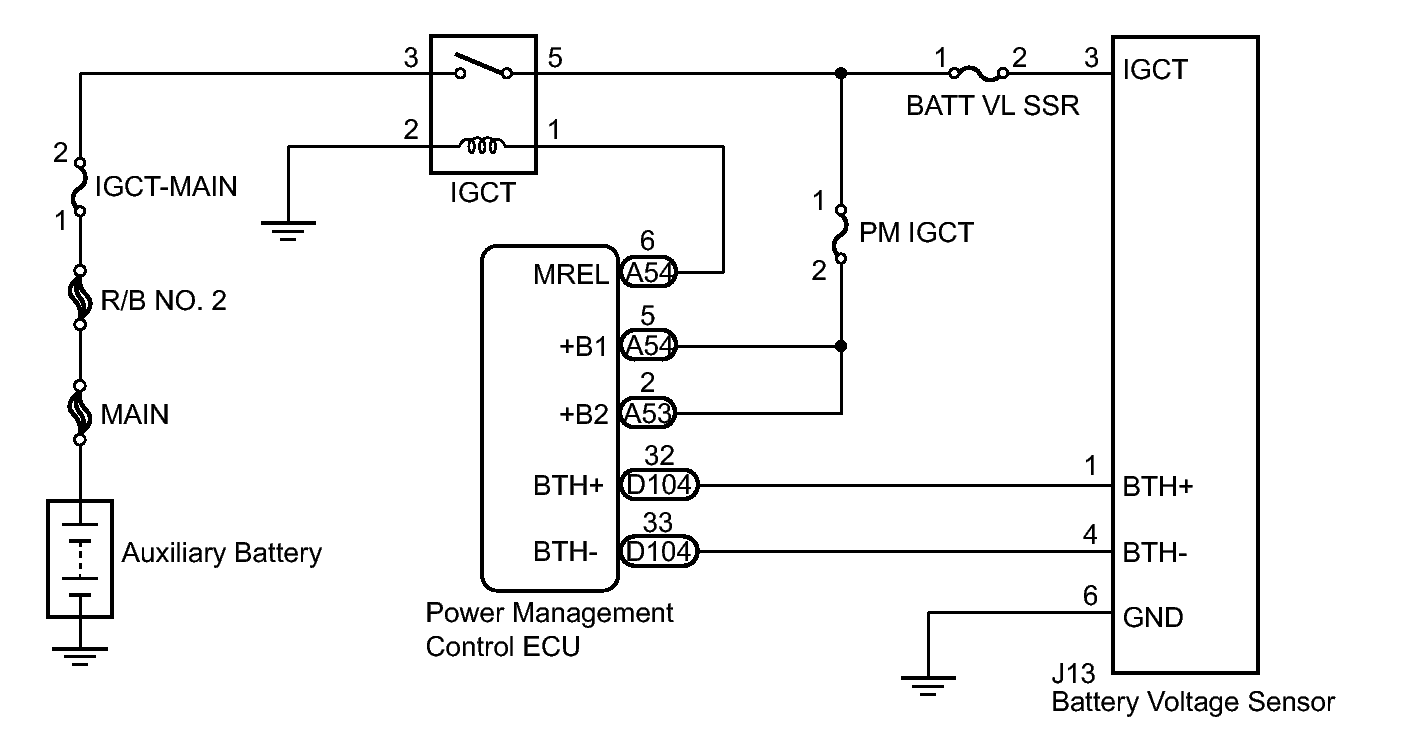

Fig 1: Hybrid Battery Pack Sensor Module Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
