Removal [10/2013 - ]
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Do not replace the spiral cable with sensor sub-assembly with the auxiliary battery connected and the power switch on (IG).
- Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly with the auxiliary battery connected and the power switch on (IG).
- Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- REMOVE HORN BUTTON ASSEMBLY
Refer to REMOVAL [10/2013 - ]
- REMOVE STEERING WHEEL ASSEMBLY
- Remove the steering wheel assembly set nut.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*a Matchmark - Put matchmarks on the steering wheel assembly and steering main shaft.
- Disconnect each connector from the spiral cable and steering wheel assembly.

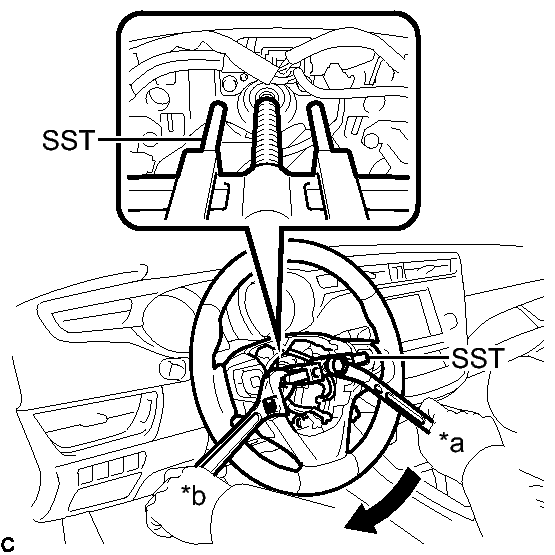

- Using SST, remove the steering wheel assembly.TEXT IN ILLUSTRATION
*a Turn *b Hold - SST: 09950-50013
- 09951-05010
- 09952-05010
- 09953-05020
- 09954-05070
NOTE:Apply a small amount of grease to the threads and tip of SST (09953-05020) before use.
- SST: 09950-50013
- Remove the steering wheel assembly set nut.
- REMOVE STEERING PAD SWITCH ASSEMBLY See step 2
- REMOVE CRUISE CONTROL MAIN SWITCH . Refer to REMOVAL [10/2013 - ] - Step 2
- REMOVE CRUISE CONTROL SWITCH WIRE
- Remove the cruise control switch wire.
- REMOVE STEERING SHAKE DAMPER
- Remove the 2 screws and steering shake damper from the steering wheel sub-assembly.
