System Diagram [10/2013 - ]

  1. FRONT SEAT HEATER SYSTEM

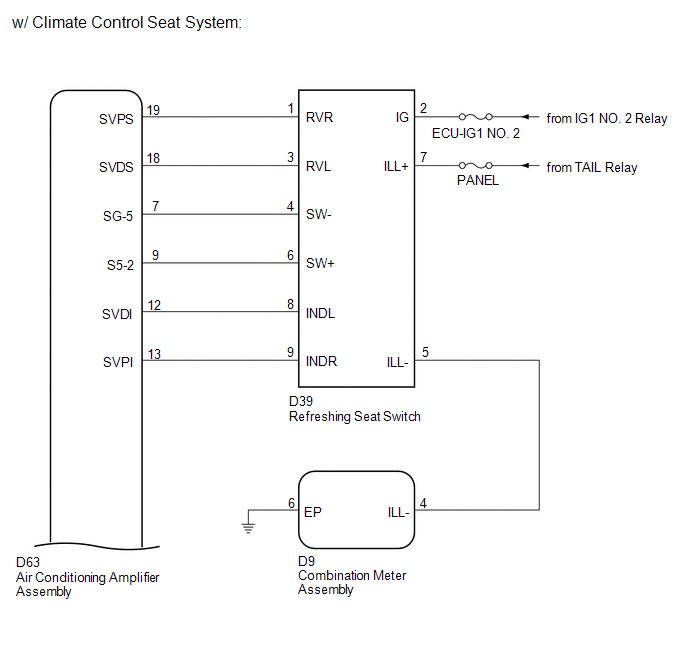

    Fig 1: Front Seat Heater System Diagram (w/ Front Seat Heater) (1 Of 3)
    GTY379105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

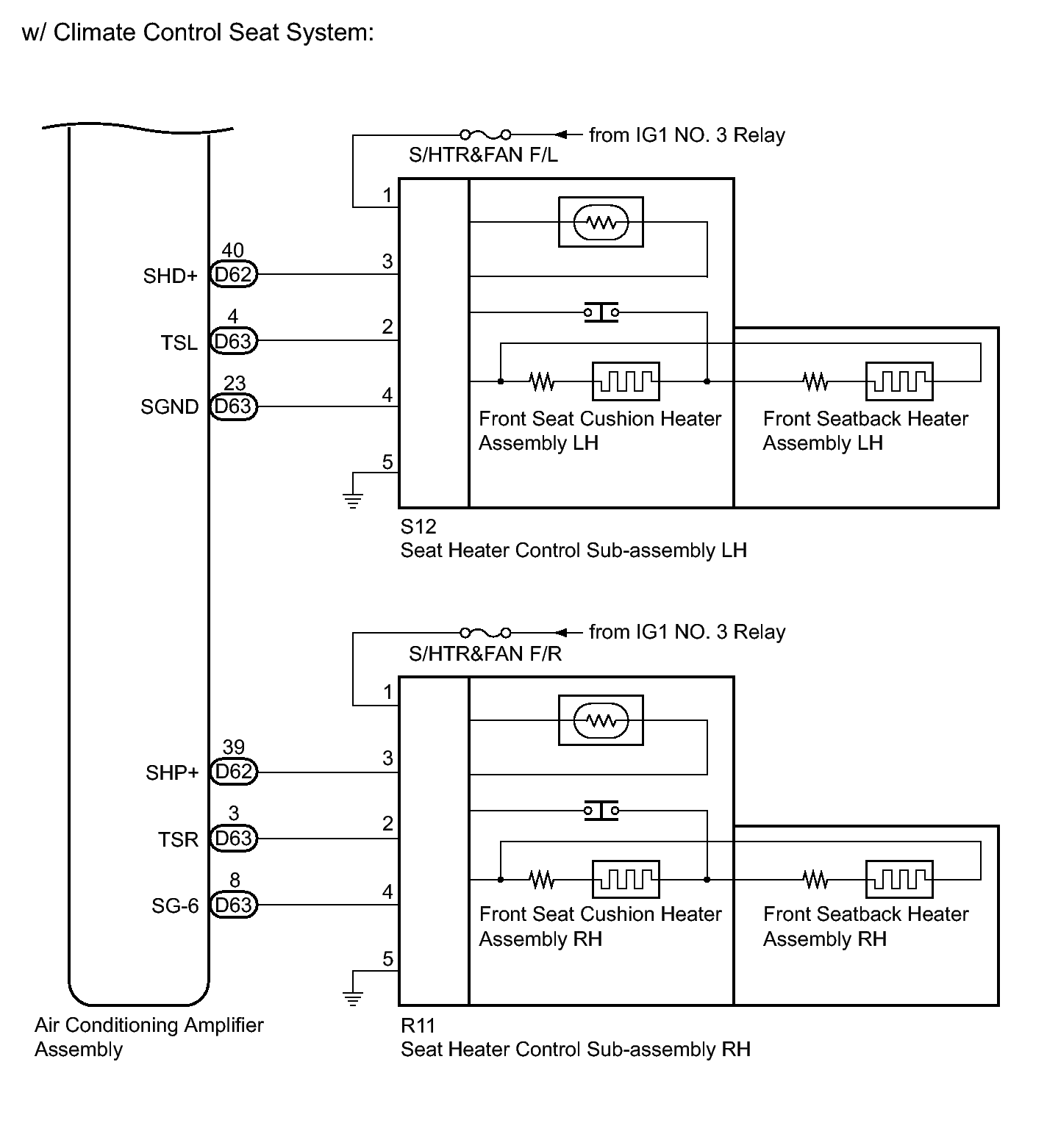

    Fig 2: Front Seat Heater System Diagram (w/ Front Seat Heater) (2 Of 3)
    GTY368586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

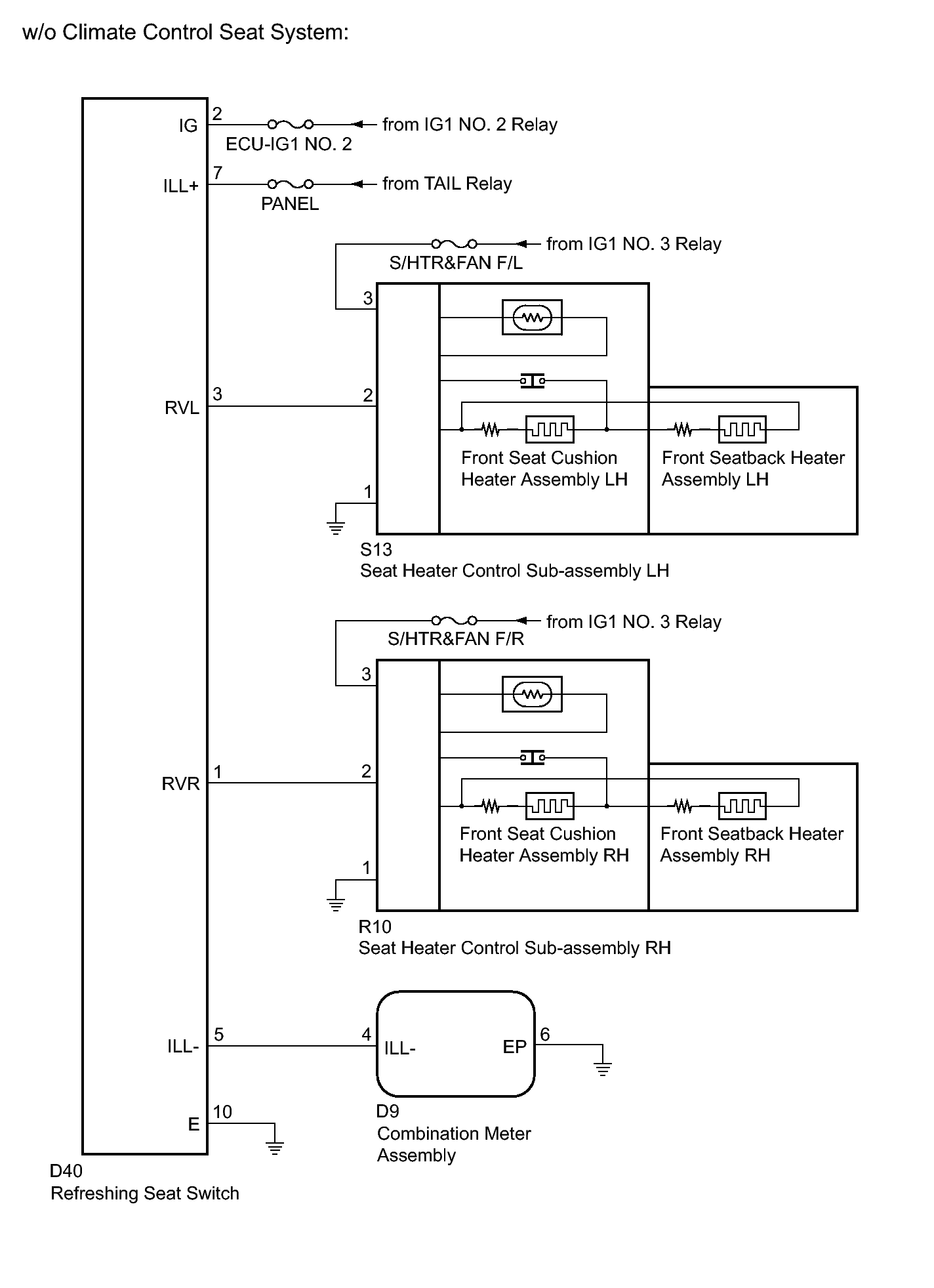

    Fig 3: Front Seat Heater System Diagram (w/o Climate Control Seat System) (3 Of 3)
    GTY378698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REAR SEAT HEATER SYSTEM (w/ Rear Seat Heater)

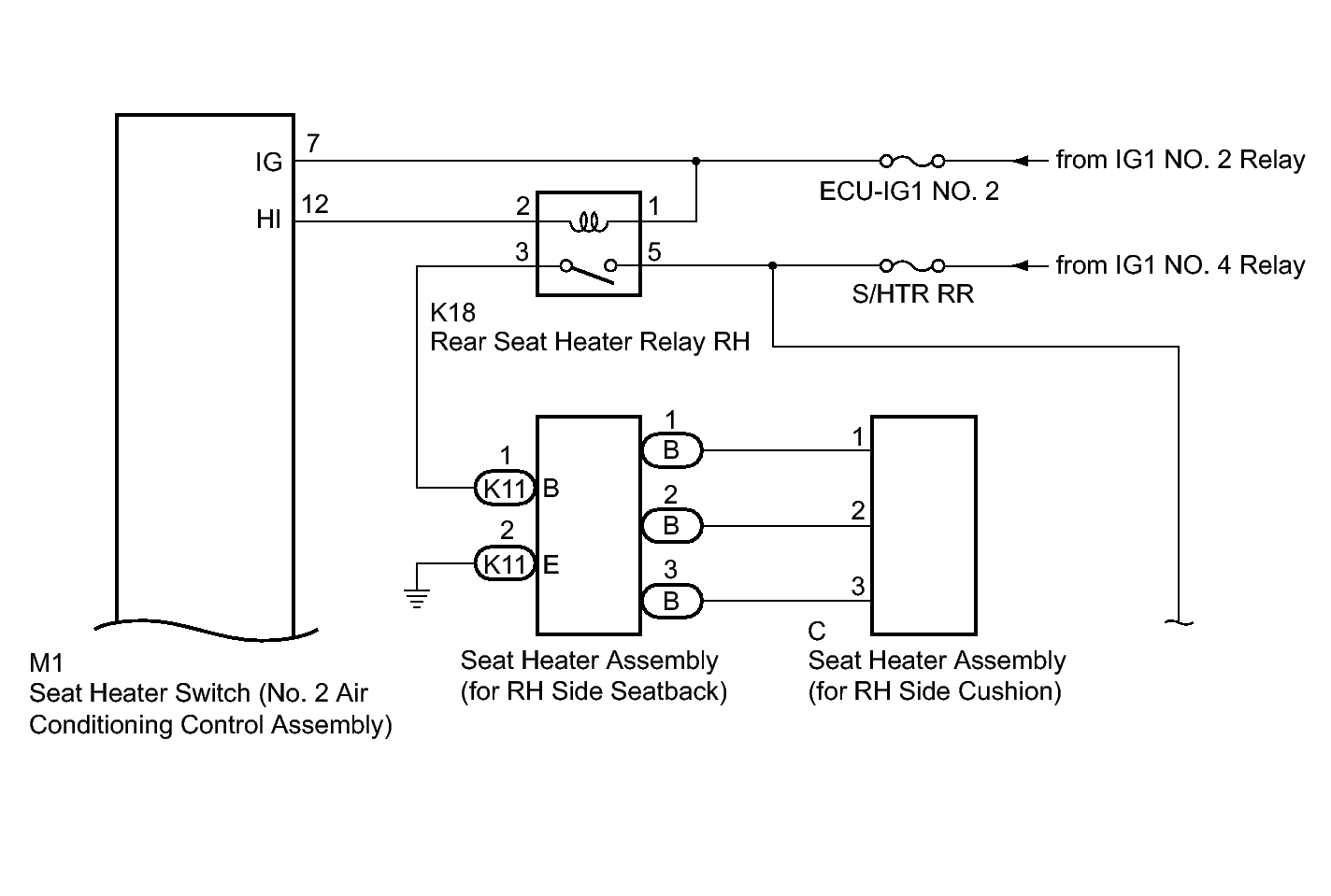

    Fig 4: Rear Seat Heater System (w/ Rear Seat Heater) (1 Of 2)
    GTY376157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

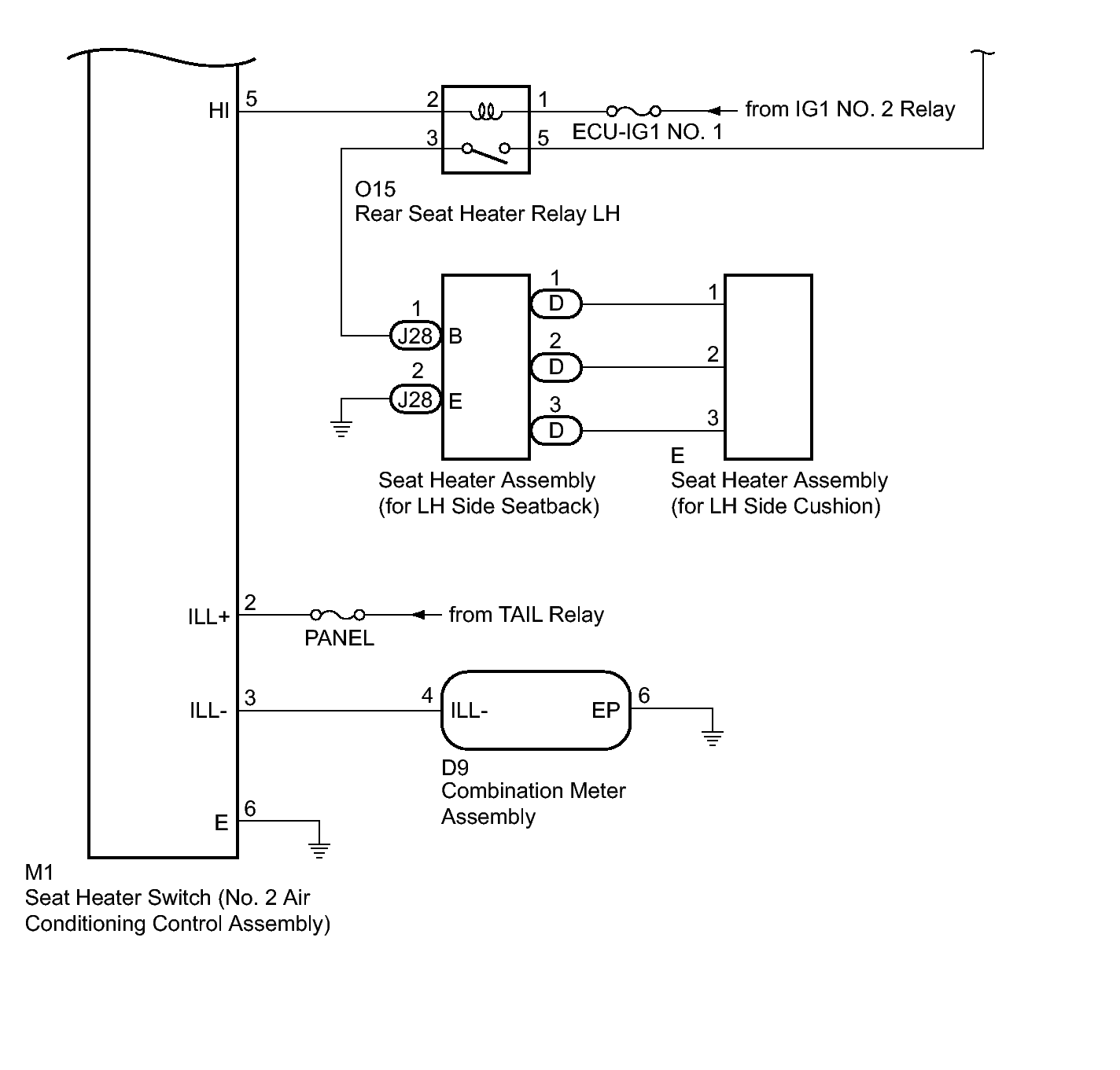

    Fig 5: Rear Seat Heater System (w/ Rear Seat Heater) (2 Of 2)
    GTY375634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
