IG Signal Circuit [10/2013 - ]: Wiring Diagram

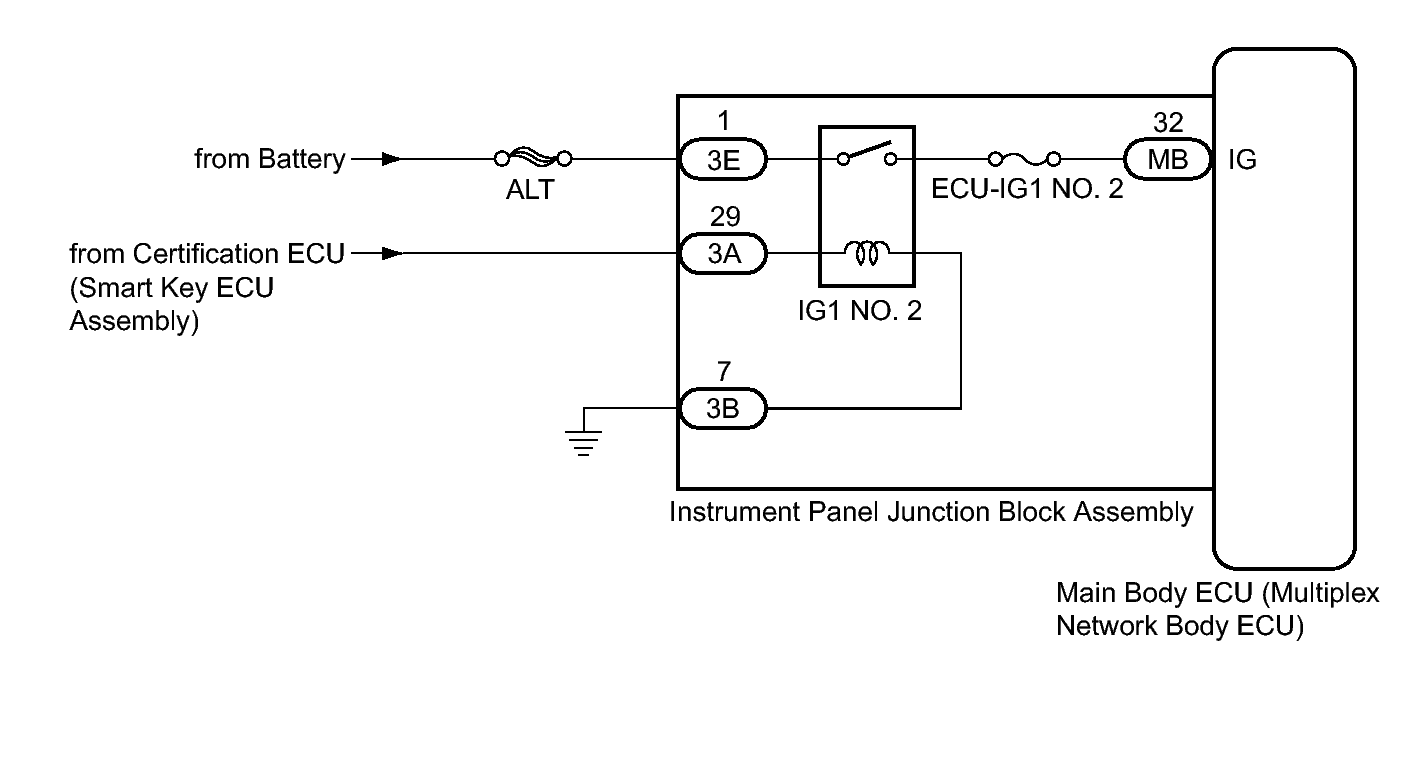

Fig 1: IG Signal Wiring Diagram

GTY381325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
