System Diagram [10/2013 - ]

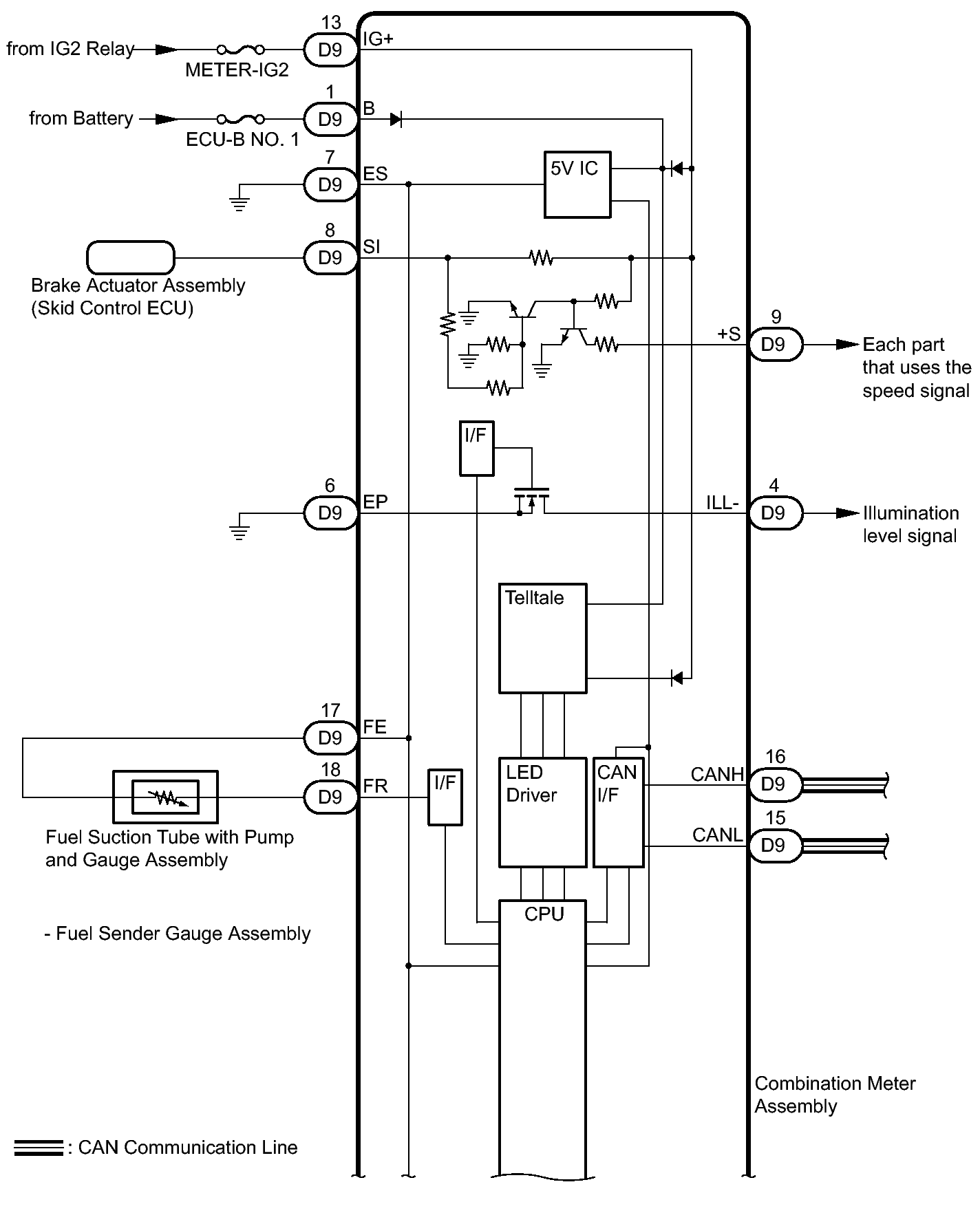

Fig 1: Meter / Gauge System Diagram (1 Of 3)
GTY364679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

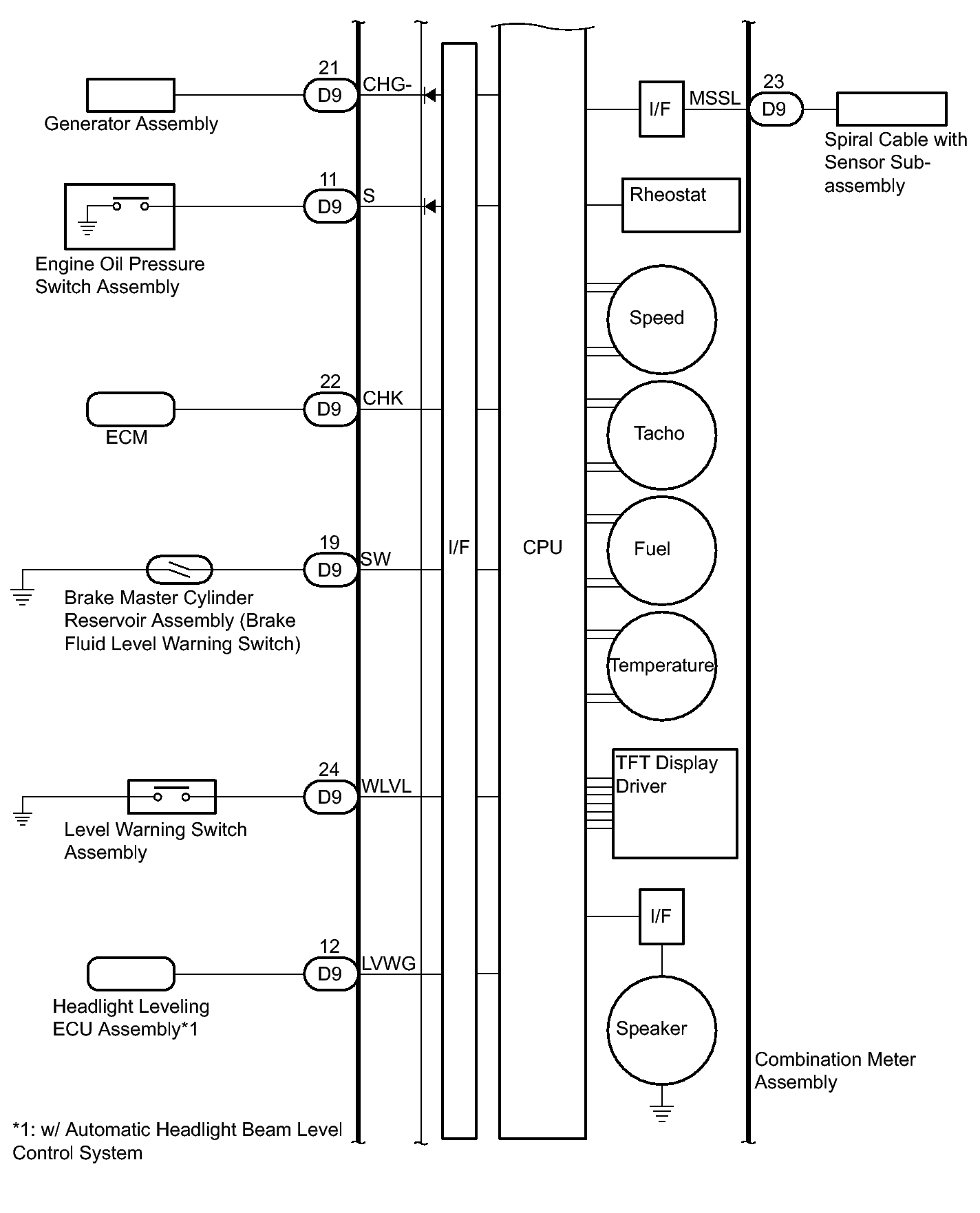

Fig 2: Meter / Gauge System Diagram (2 Of 3)
GTY374675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

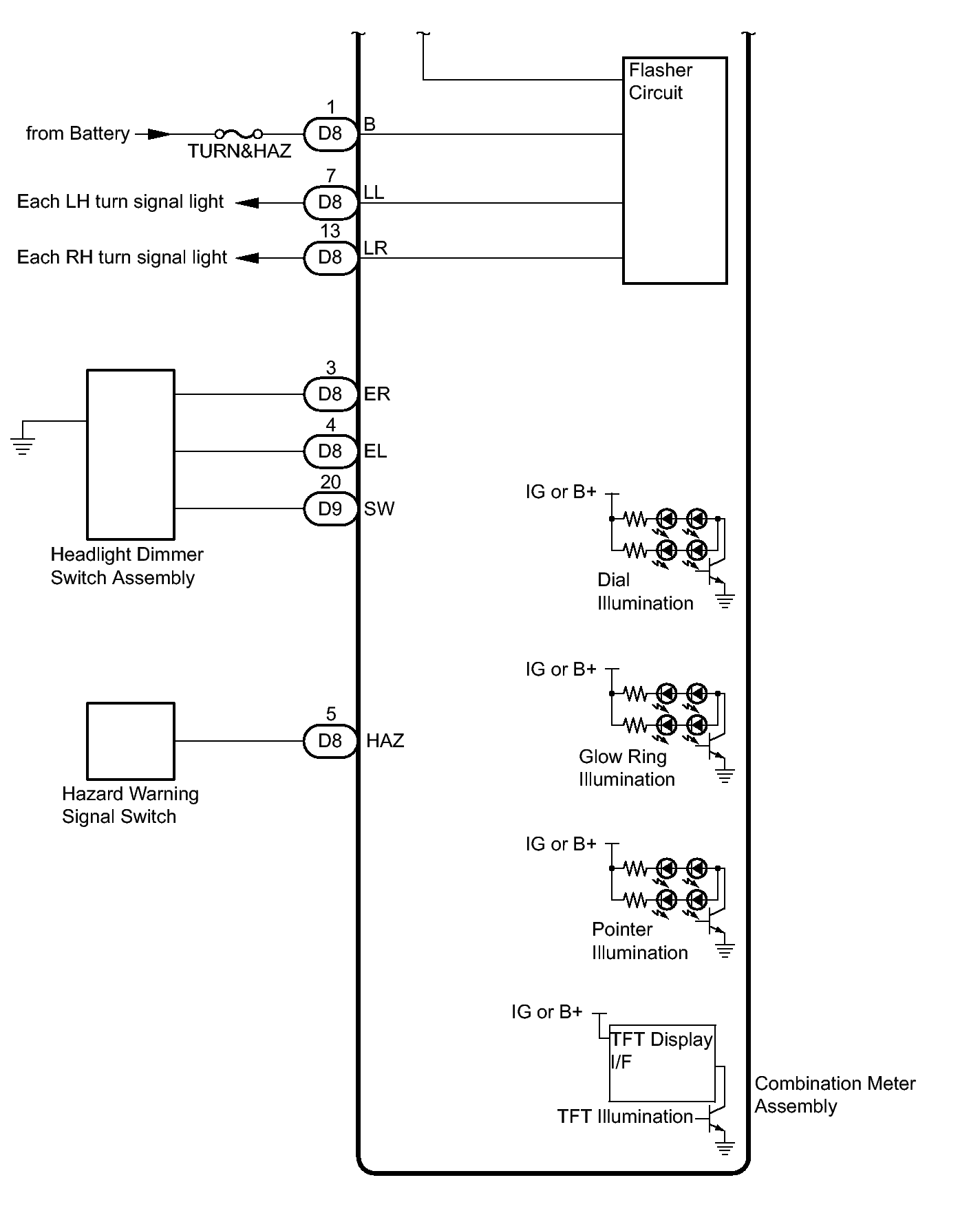

Fig 3: Meter / Gauge System Diagram (3 Of 3)
GTY438542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
