Reassembly [10/2013 - ]

INSTALL FRONT SIDE MARKER LIGHT BULB
1. Install the front side marker light bulb to the front side marker light socket and wire.
2. Turn the front side marker light socket and wire with the front side marker light bulb as shown in the illustration to install them as a unit.

  Fig 1: Installing Front Side Marker Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 HEADLIGHT BULB (for Halogen Headlight)
1. Turn the No. 2 headlight bulb as shown in the illustration to install it.

  Fig 2: Installing No. 2 Headlight Bulb (For Halogen Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.

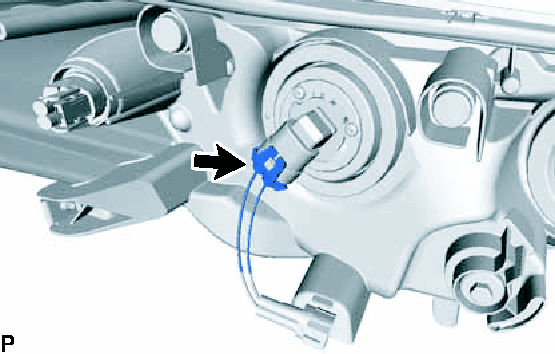

2. Connect the connector.

  Fig 3: Identifying No. 2 Headlight Bulb Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DISCHARGE HEADLIGHT BULB (for HID Headlight)
1. Set the discharge headlight bulb to the headlight unit.
  NOTE:
  Do not touch the bulb glass.

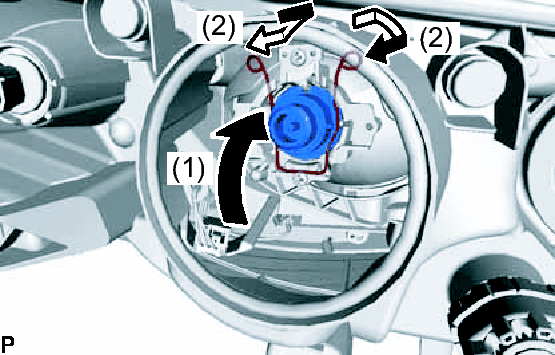

2. Lock the set spring as indicated by the arrows, in the order shown in the illustration to install the discharge headlight bulb.

  Fig 4: Installing Discharge Headlight Bulb (For HID Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LIGHT CONTROL ECU (for HID Headlight)
1. Turn the socket of the light control ECU as shown in the illustration to connect it.

  Fig 5: Installing Light Control ECU (For HID Headlight)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Red Line
  NOTE:
  - Check that the O-ring is installed on the light control ECU.
  - Check that the O-ring is not damaged or contaminated with foreign matter. If there is any damage, replace the O-ring with a new one.
  - Do not pull the light control ECU with the socket connected.
2. Check that the red line on the output harness is not twisted and store the harness in the headlight assembly securely so that the output harness is not pinched.
3. Turn the light control ECU as shown in the illustration until the lock marks are aligned to install it.

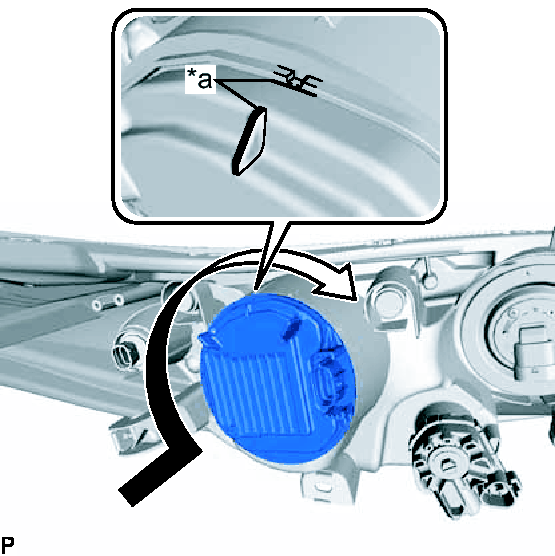

  Fig 6: Identifying Light Control ECU Lock Marks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Lock Mark
  NOTE:
  - To prevent incomplete installation, make sure to fully push in and turn the light control ECU until the lock marks are aligned.
  - Do not apply excessive force using a tool.
INSTALL NO. 1 HEADLIGHT BULB
1. Turn the No. 1 headlight bulb as shown in the illustration to install it.

  Fig 7: Installing No. 1 Headlight Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
