Accessory Meter does not Illuminate [08/2013 - ]: Wiring Diagram

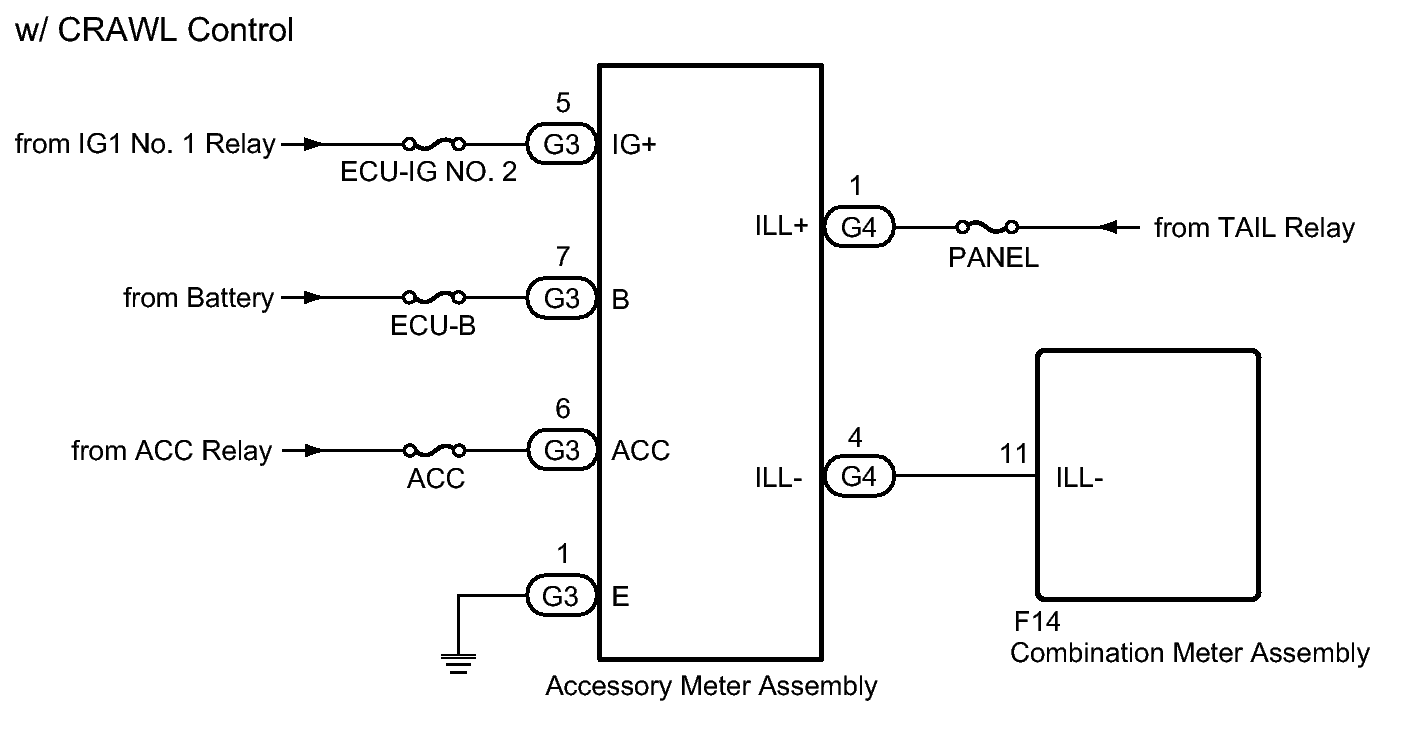

Fig 1: Identifying Accessory Meter Wiring Diagram (W/ Crawl Control)
GTY447952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

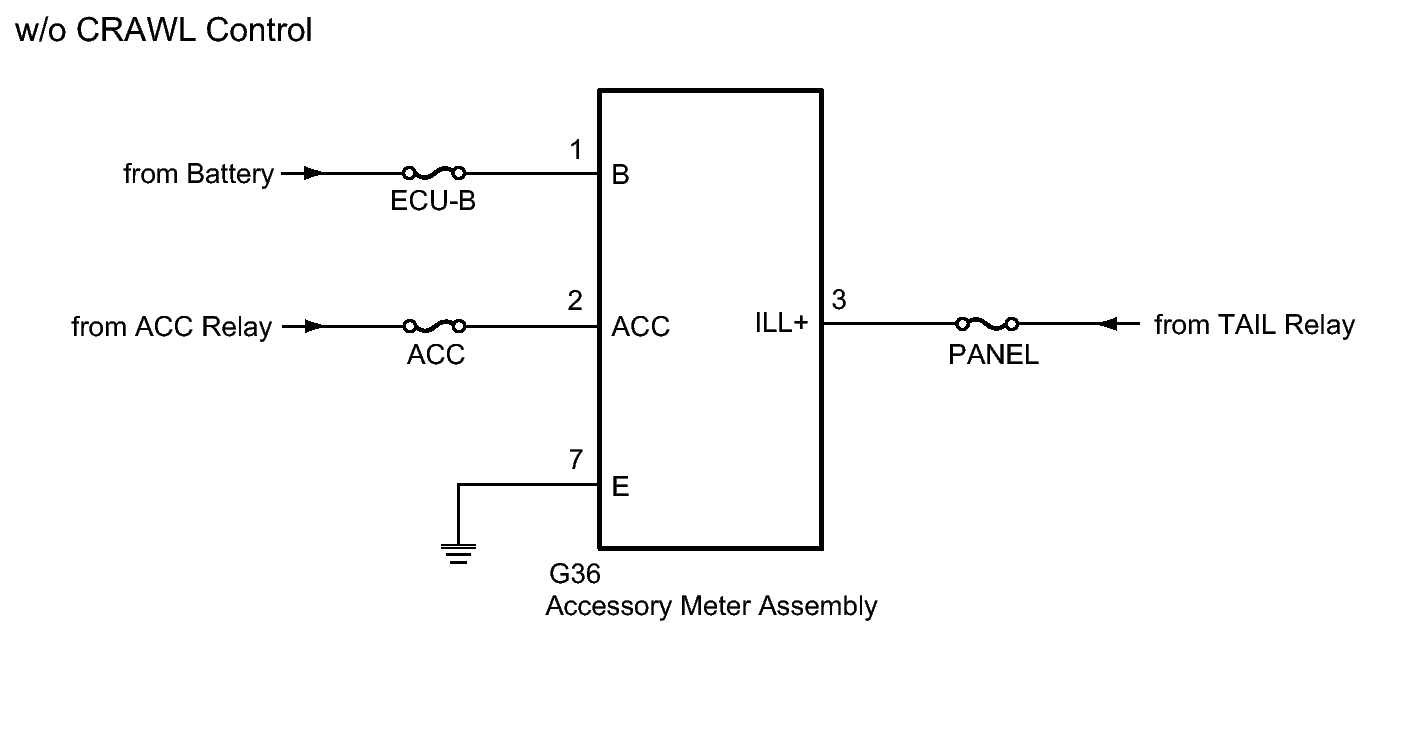

Fig 2: Identifying Accessory Meter Wiring Diagram (W/o Crawl Control)
GTY442414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
