Accessory Meter does not Illuminate [08/2013 - ]: Procedure

1. Check the type of accessory meter assembly malfunction.
   RESULT



   Result	Proceed to
   Accessory meter assembly does not display at all	A
   Accessory meter assembly does not dim at night	B

B → See step   3

A: Go to next step

1. w/ CRAWL Control

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disconnect the G3 and G4 accessory meter assembly connectors.
   2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection	Switch Condition	Specified Condition
      G3-5 (IG+) - Body ground	Ignition switch ON	11 to 14 V
      G3-6 (ACC) - Body ground	Ignition switch ACC	11 to 14 V
      G3-7 (B) - Body ground	Always	11 to 14 V
      G4-1 (ILL+) - Body ground	Light control switch TAIL or HEAD	11 to 14 V

   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      G3-1 (E) - Body ground	Always	Below 1 Ω

2. w/o CRAWL Control
   1. Disconnect the G36 accessory meter assembly connector.
   2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection	Switch Condition	Specified Condition
      G36-2 (ACC) - Body ground	Ignition switch ACC	11 to 14 V
      G36-1 (B) - Body ground	Always	11 to 14 V
      G36-3 (ILL+) - Body ground	Light control switch TAIL or HEAD	11 to 14 V

   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      G36-7 (E) - Body ground	Always	Below 1 Ω

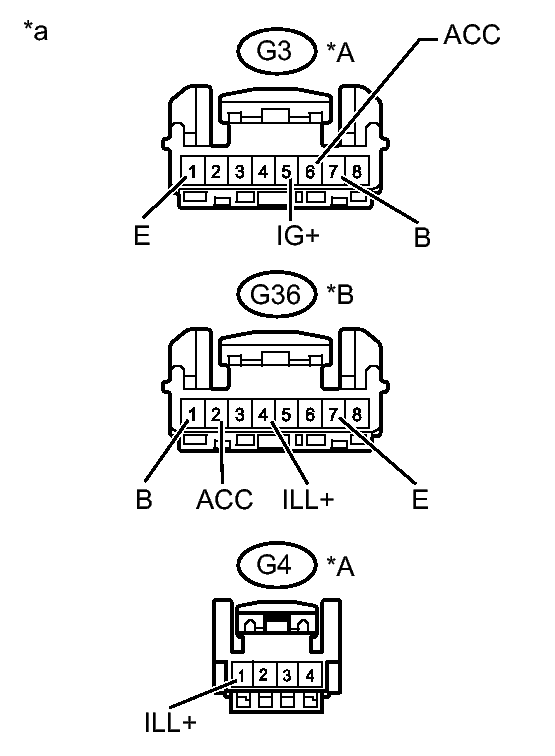

   TEXT IN ILLUSTRATION



   *A	w/ CRAWL Control
   *B	w/o CRAWL Control
   *a	Front view of wire harness connector (to Accessory Meter Assembly)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6

1. Disconnect the F14 combination meter assembly connector.
2. Disconnect the G4 accessory meter assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G4-4 (ILL-) - F14-11 (ILL-)	Always	Below 1 Ω
   G4-4 (ILL-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Replace the accessory meter assembly with a new or normally functioning one. Refer to REMOVAL [08/2013 - ] .

   OK

   The operation of the accessory meter assembly returns to normal.

NG → See step   5

OK → END
