Speed Signal Circuit [08/2013 - ]: Wiring Diagram

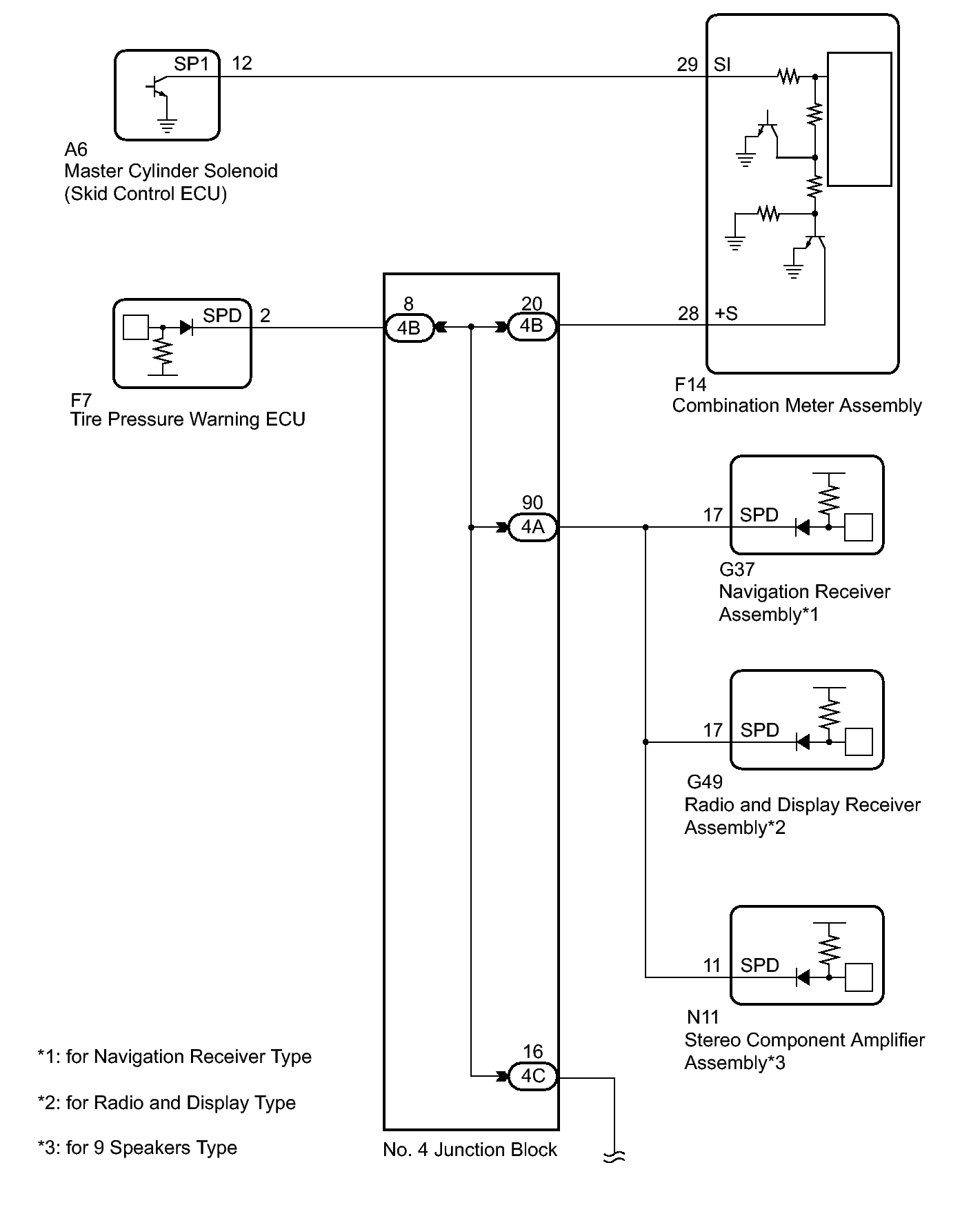

Fig 1: Identifying Vehicle Speed Signal Wiring Diagram (1 Of 2)
GTY428871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

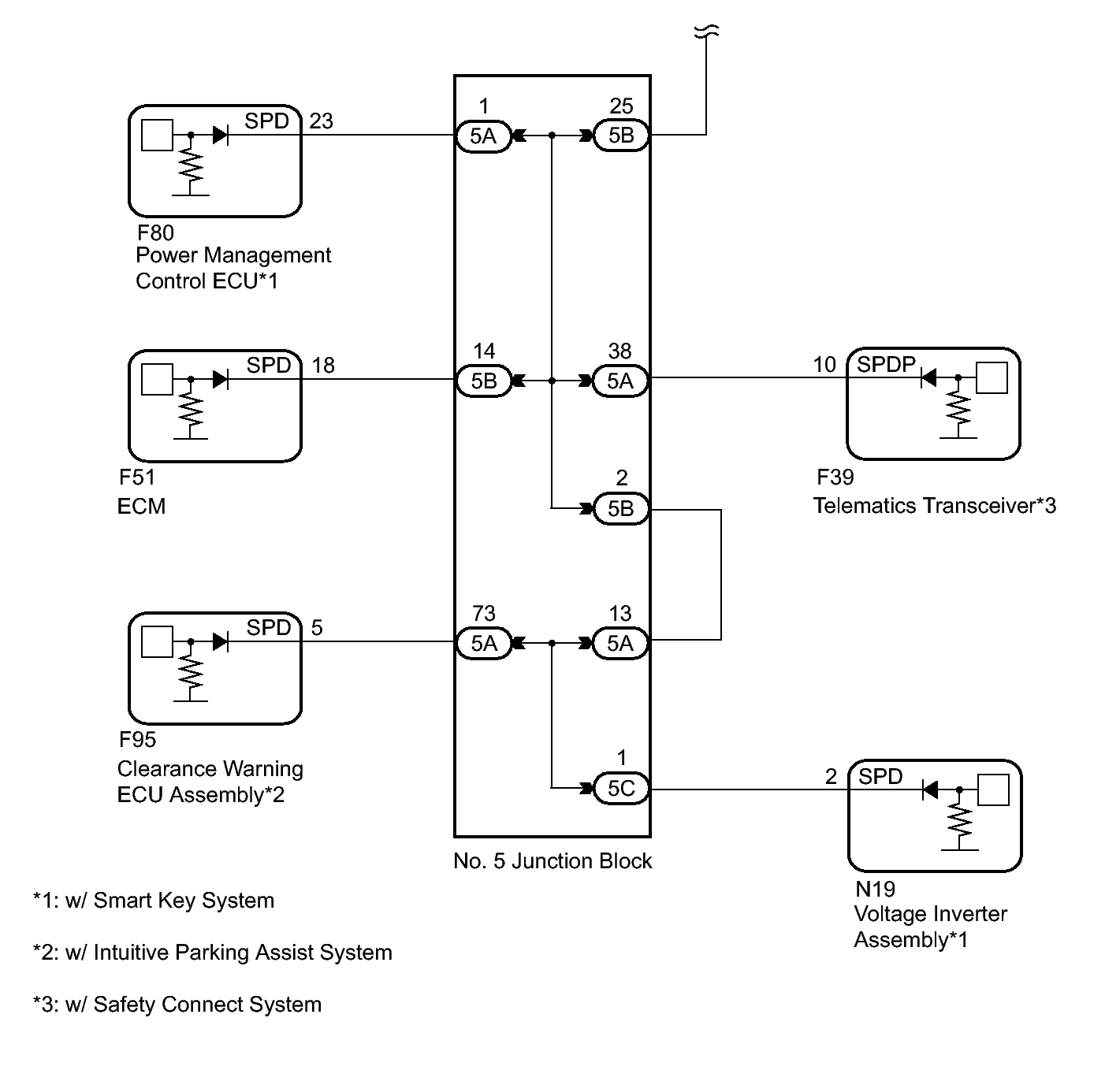

Fig 2: Identifying Vehicle Speed Signal Wiring Diagram (2 Of 2)
GTY427898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
