Shift Lever: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Check that the park/neutral position switch and the shift lever are in N position.
    2. Rotate the transmission control cable nut counterclockwise approximately 270° and, while holding the nut in that position, press in the stopper until it makes 2 "click" sounds.
      Fig 1: Pressing Transmission Control Cable Stopper While Rotating Cable Nut
      GTY300972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Stopper
      *2 Nut
      *a Turn
      *b Push
    3. Push the lock piece up from the back side of the adjuster case while pinching the claws on the lock piece.
      Fig 2: Pushing Transmission Control Cable Lock Piece Up While Pinching Claws
      GTY306208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Adjuster Case
      *2 Claw
      *3 Lock Piece
    4. Connect the cable outer of the transmission control cable onto the shift lever retainer, check that the position of the spring is the same as A shown in the illustration, and press in the stopper.
      Fig 3: Pressing Transmission Control Cable Stopper
      GTY295751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the stopper cannot be pressed in, slightly rotate the nut clockwise and then press in the stopper.

    5. Connect the transmission control cable end to the shift lever.
      Fig 4: Identifying Lock Piece Up Position
      GTY294468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Piece
      NOTE:

      Check that the lock piece is pulled up.

  2. INSTALL SHIFT LEVER ASSEMBLY
    1. Install the shift lever with the 4 nuts.

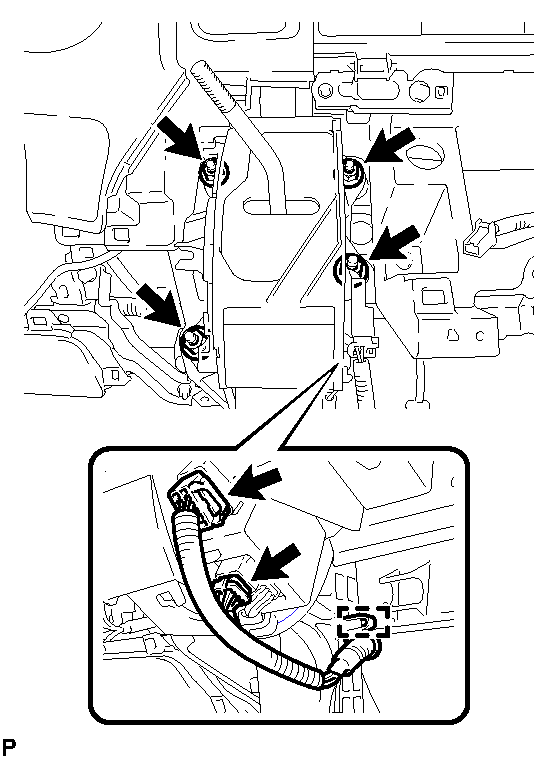

      Fig 5: Identifying Shift Lever Assembly, Connectors & Nuts
      GTY299900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    2. Connect the shift lock control ECU connector and transmission control switch wire connector.
    3. Press in and lock the lock piece to the adjuster case.
      Fig 6: Pressing Lock Piece At Adjuster Case
      GTY305607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Piece
      *2 Adjuster Case
      *a Press in
      NOTE:
      • Check that the park/neutral position switch and the shift lever are in N position.
      • Securely press in the lock piece until the lock engages.
  3. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 13
  4. INSTALL INSTRUMENT PANEL FINISH PANEL END RH  . Refer to INSTALLATION - Step 18
  5. INSTALL INSTRUMENT PANEL FINISH PANEL END LH  . Refer to INSTALLATION - Step 19
  6. INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 15
  7. INSTALL LOWER CENTER INSTRUMENT COVER (w/ Console Box)  . Refer to INSTALLATION - Step 17
  8. INSTALL LOWER CENTER INSTRUMENT COVER (w/o Console Box)  . Refer to INSTALLATION - Step 16
  9. INSTALL CONSOLE BOX ASSEMBLY (for Fixed Type)

    Refer to INSTALLATION

  10. INSTALL CONSOLE BOX ASSEMBLY (for Slide Type)

    Refer to INSTALLATION

  11. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)  . Refer to INSTALLATION - Step 1
  12. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Manual Air Conditioning System)  . Refer to INSTALLATION - Step 1
  13. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY  . Refer to INSTALLATION - Step 33
  14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  15. INSTALL GLOVE COMPARTMENT DOOR SUB-ASSEMBLY  . Refer to INSTALLATION - Step 24
  16. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH  . Refer to INSTALLATION - Step 35
  17. INSTALL KNEE AIRBAG ASSEMBLY  . Refer to INSTALLATION - Step 1
  18. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL  . Refer to INSTALLATION - Step 39
  19. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  20. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  21. INSTALL COWL SIDE TRIM BOARD RH  . Refer to INSTALLATION - Step 35
  22. INSTALL COWL SIDE TRIM BOARD LH  . Refer to INSTALLATION - Step 36
  23. INSTALL FRONT DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 37
  24. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 38
  25. INSPECT SHIFT LEVER OPERATION

    Refer to ON-VEHICLE INSPECTION
