Automatic Transaxle Assembly: Removal: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:

If automatic transaxle parts are replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary. Refer to PRECAUTION .

  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL

  2. REMOVE STARTER ASSEMBLY  . Refer to REMOVAL - Step 5
  3. REMOVE MANIFOLD STAY  . Refer to REMOVAL - Step 10
  4. DISCONNECT BREATHER PLUG HOSE
    1. Disengage the clamp and disconnect the breather plug hose from the hose clamp.
      Fig 1: Identifying Breather Plug Hose & Clamp
      GTY298991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. DISCONNECT ENGINE WIRE
    1. Disconnect the park/neutral position switch connector.
      Fig 2: Locating Park/Neutral Position Switch Connector & Clamp
      GTY303006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp and disconnect the engine wire.
    3. Remove the bolt and separate the ground wire.

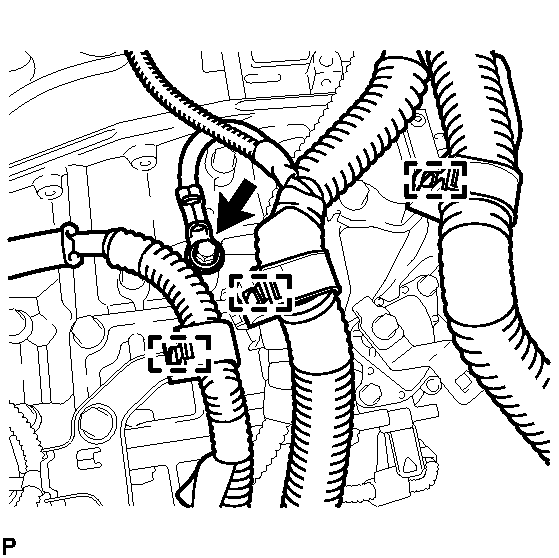

      Fig 3: Locating Ground Wire With Bolt & Clamps
      GTY298458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 3 clamps and disconnect the engine wire.
    5. Turn the lock lever and disconnect the connector from the TCM.

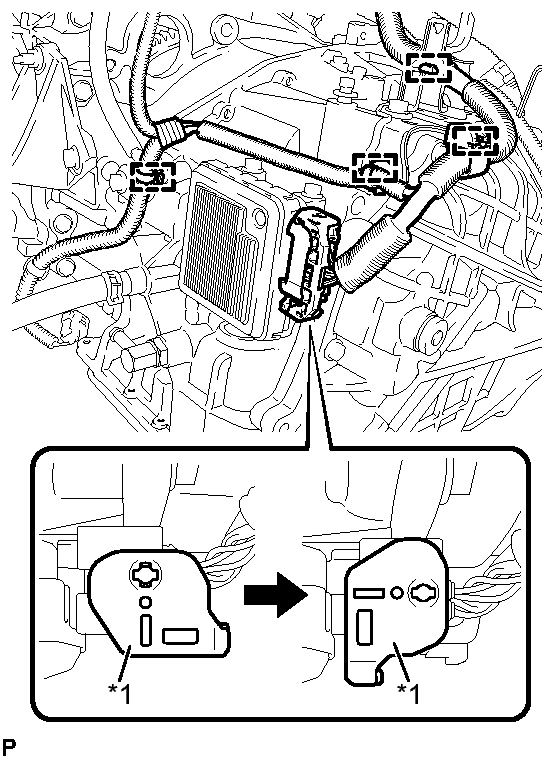

      Fig 4: Disconnecting TCM Connector & Clamps
      GTY301654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Lock Lever
    6. Disengage the 4 clamps and disconnect the engine wire.
  6. REMOVE TRANSFER STIFFENER PLATE RH  . Refer to REMOVAL - Step 6
  7. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
    1. Remove the 11 bolts and transaxle.
      Fig 5: Locating Automatic Transaxle Bolts
      GTY250169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      To prevent damage to the knock pins, do not pry between the transaxle and engine.

  8. REMOVE TORQUE CONVERTER CLUTCH ASSEMBLY
    1. Remove the torque converter from the automatic transaxle.
      Fig 6: Identifying Torque Converter Clutch Assembly
      GTY261319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE TRANSFER ASSEMBLY  . Refer to REMOVAL - Step 9
  10. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. Remove the 2 bolts, nut and front engine mounting bracket from the automatic transaxle.
      Fig 7: Locating Front Engine Mounting Bracket & Fasteners
      GTY302400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an E8 "TORX" socket wrench, remove the stud bolt from the automatic transaxle.
      Fig 8: Identifying Front Engine Mounting Bracket Stud Bolt
      GTY299310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TCM
    1. Remove the 2 bolts and TCM from the automatic transaxle.
      Fig 9: TCM Bolts
      GTY298291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE OIL COOLER TUBE CLAMP
  13. REMOVE NO. 1 OIL COOLER OUTLET HOSE
    1. Slide the hose clip and disconnect the No. 1 oil cooler outlet hose from the oil cooler tube union.
      Fig 10: Identifying No. 1 Oil Cooler Outlet Hose & Clip
      GTY298983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 1 OIL COOLER INLET HOSE
    1. Slide the hose clip and disconnect the No. 1 oil cooler inlet hose from the oil cooler tube union.
      Fig 11: Hose Clip And Disconnect The No. 1 Oil Cooler Inlet Hose
      GTY372306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for Straight Type
      *B for Elbow Type
  15. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the 5 bolts and 5 clamp brackets from the automatic transaxle.
      Fig 12: Identifying Wire Harness Clamp Brackets & Fasteners
      GTY298785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 1 TRANSMISSION CONTROL CABLE BRACKET
    1. Remove the 2 bolts and No. 1 transmission control cable bracket from the automatic transaxle.
      Fig 13: Location of No. 1 Transmission Control Cable Bracket & Bolts At Automatic Transaxle
      GTY283341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
    1. Remove the bolt and speedometer driven hole cover from the automatic transaxle.
      Fig 14: Identifying Speedometer Driven Hole Cover & Bolt
      GTY265466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the speedometer driven hole cover.
  18. INSPECT TORQUE CONVERTER CLUTCH ASSEMBLY  . Refer to INSPECTION - Step 1
