Instrument Panel Junction Block Inner Circuit

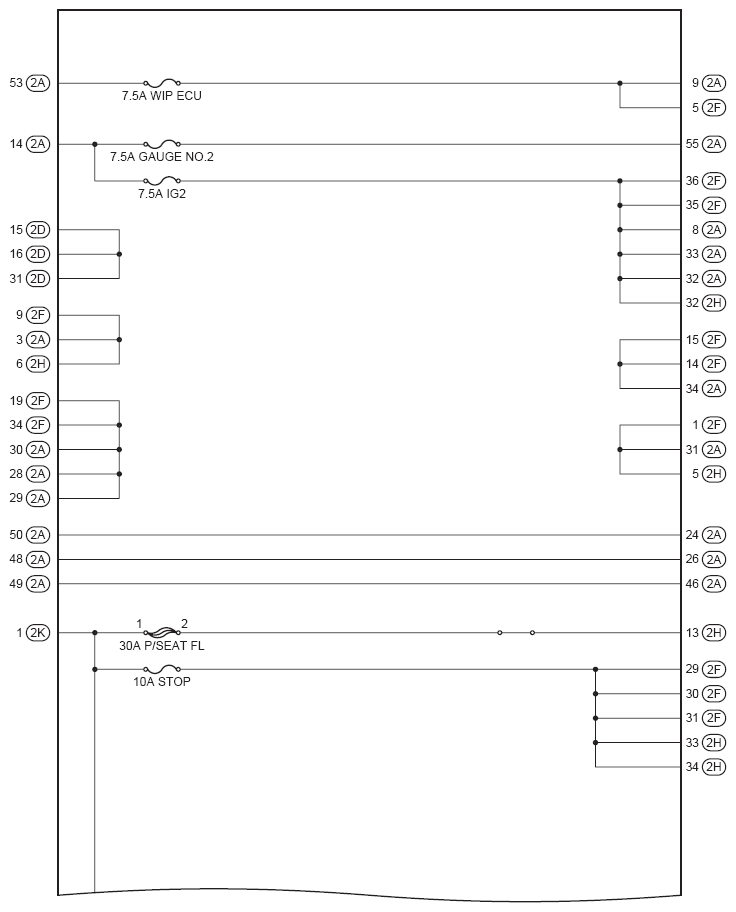

Fig 1: Instrument Panel J/B Relay Inner Circuit Diagram (1 Of 6)
G09111340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

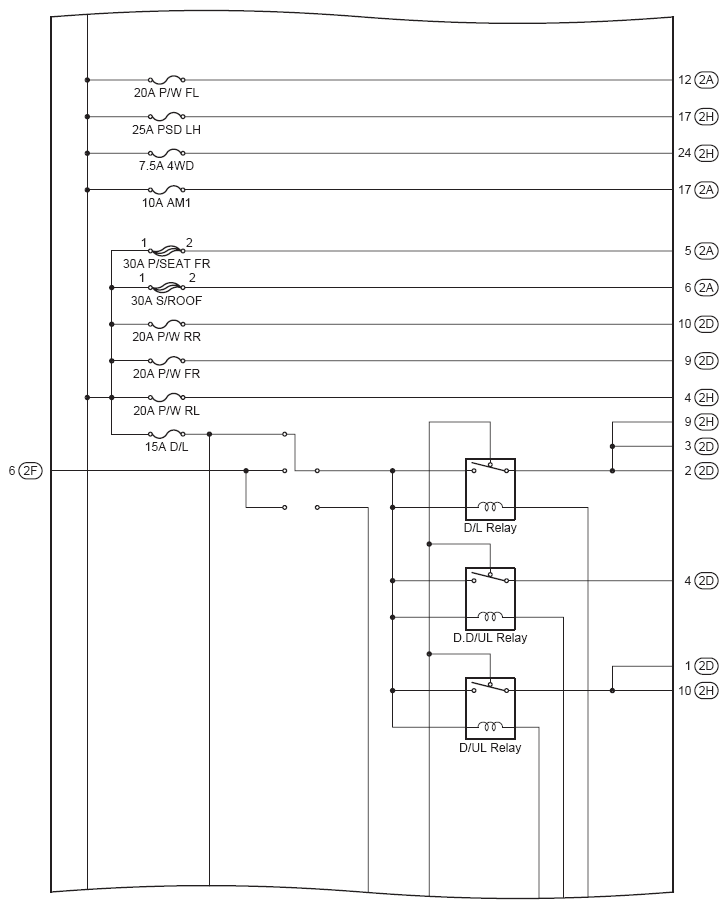

Fig 2: Instrument Panel J/B Relay Inner Circuit Diagram (2 Of 6)
G09111341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Instrument Panel J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
D/L Relay
D.D/UL Relay
D/UL Relay

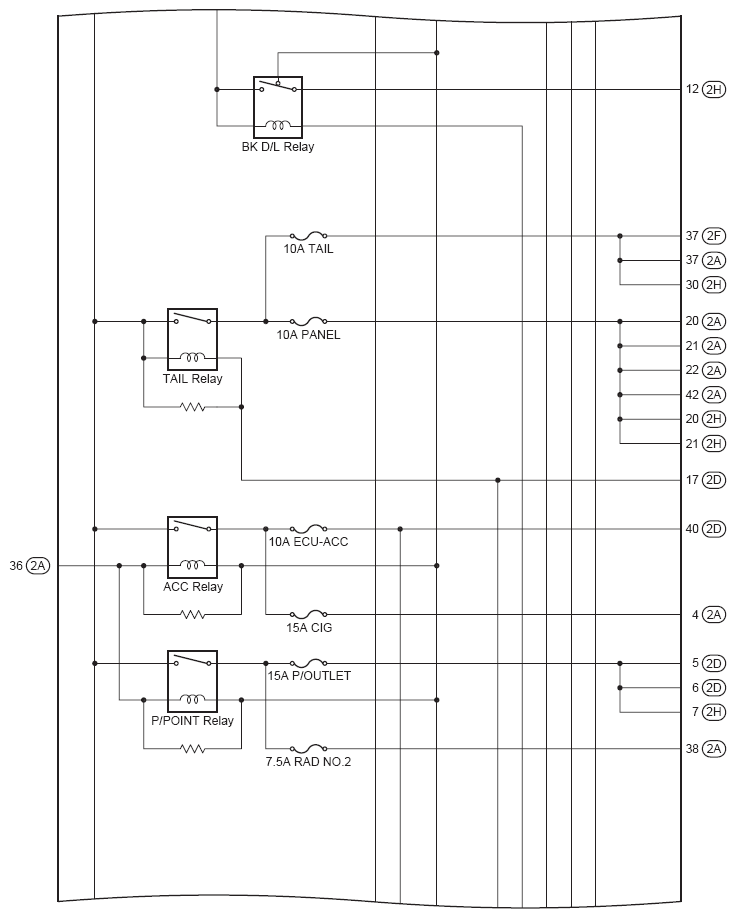

Fig 3: Instrument Panel J/B Relay Inner Circuit Diagram (3 Of 6)
G09111342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Instrument Panel J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
BK D/L Relay
Tail Relay
ACC Relay
P/Point Relay

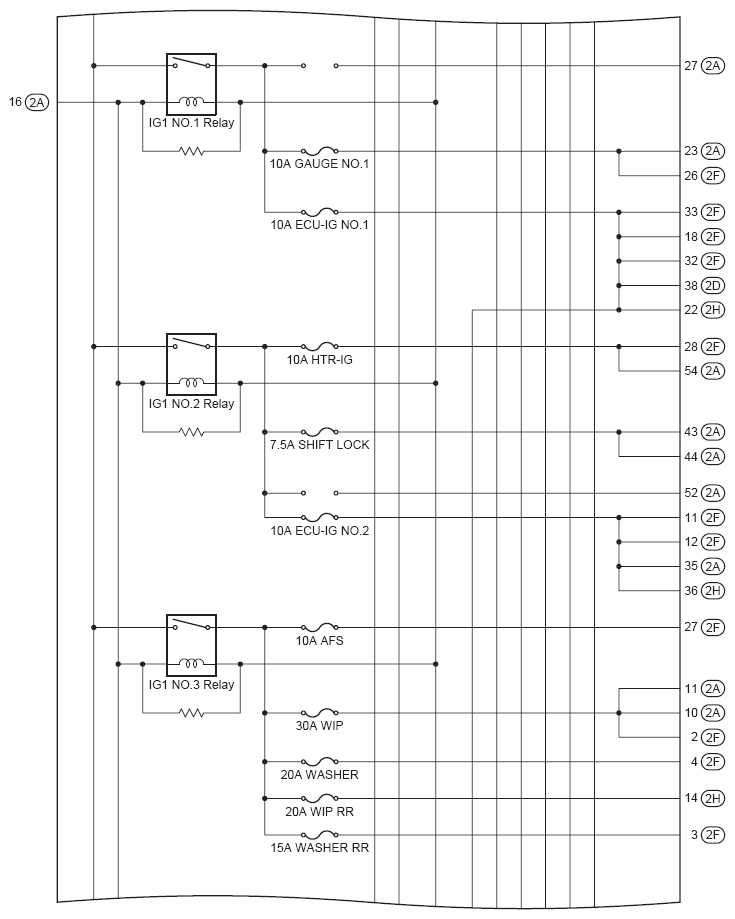

Fig 4: Instrument Panel J/B Relay Inner Circuit Diagram (4 Of 6)
G09111343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Instrument Panel J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
IG1 No. 1 Relay
IG1 No. 2 Relay
IG1 No. 3 Relay

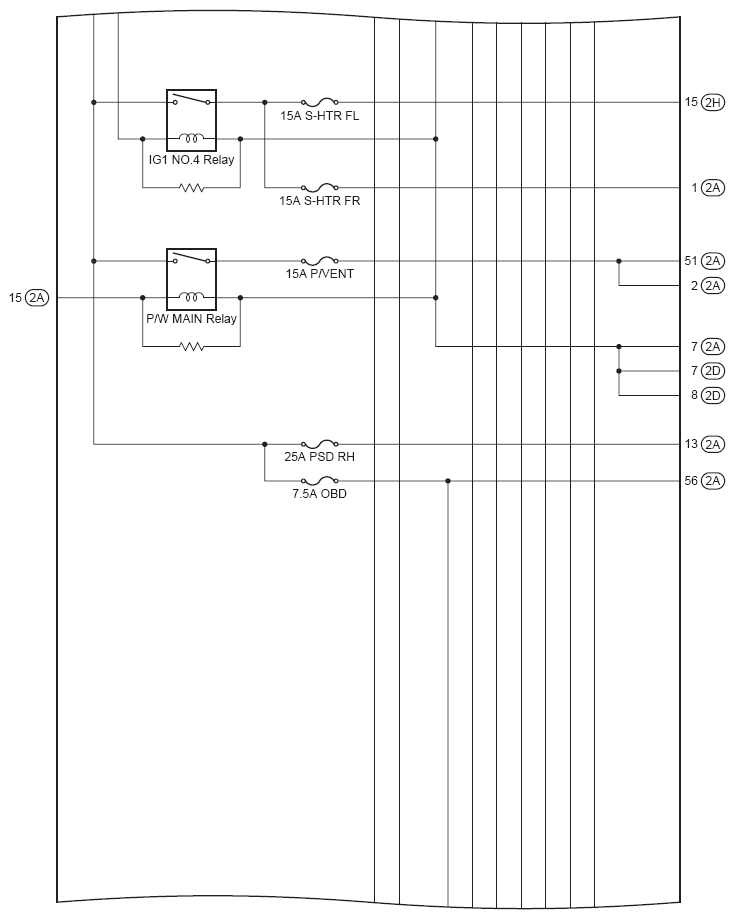

Fig 5: Instrument Panel J/B Relay Inner Circuit Diagram (5 Of 6)
G09111344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Instrument Panel J/B Inner Circuit Relay Identification

RELAY DESCRIPTION
IG1 No. 4 Relay
P/W Main Relay

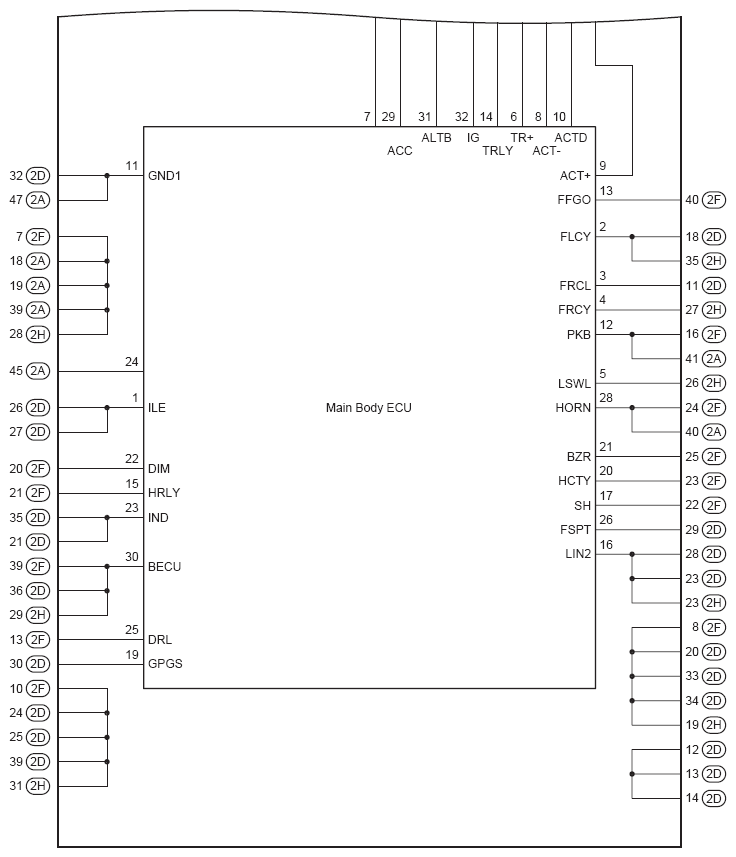

Fig 6: Instrument Panel J/B Relay Inner Circuit Diagram (6 Of 6)
G09111345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
