Turn Signal And Hazard Warning Light Wiring Diagram
Turn Signal And Hazard Warning Light Wiring Diagram

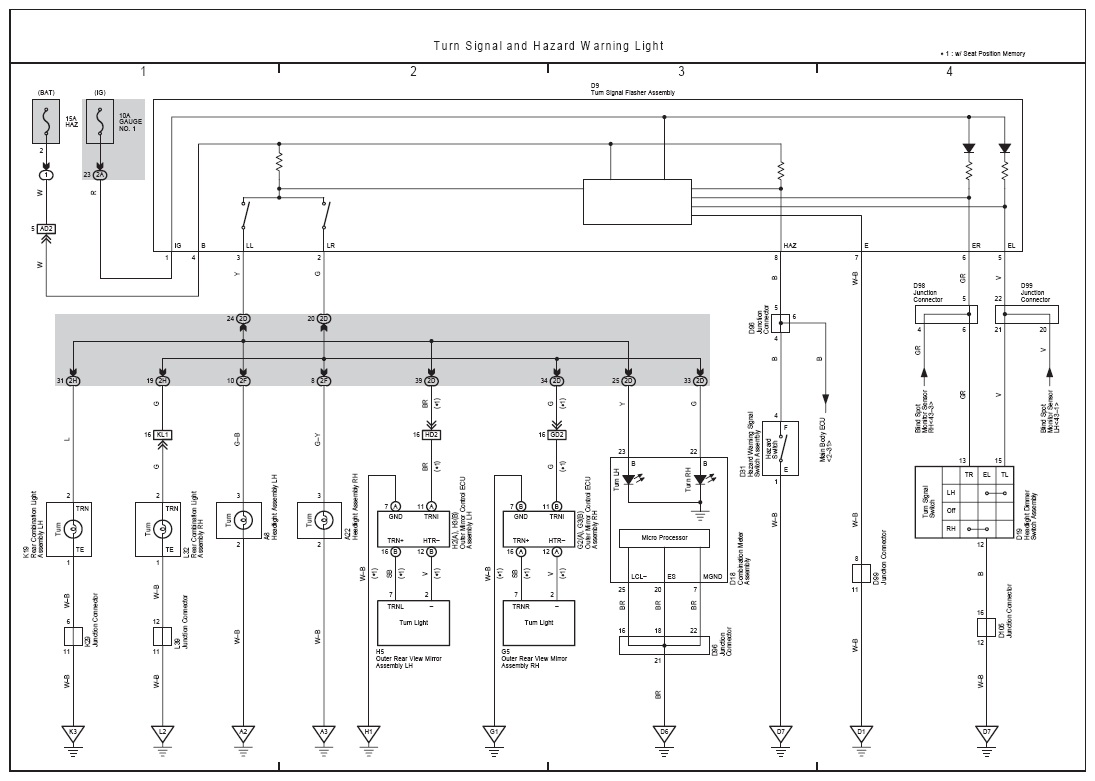

Fig 1: Turn Signal And Hazard Warning Light Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
