Tire Pressure Warning System Wiring Diagram

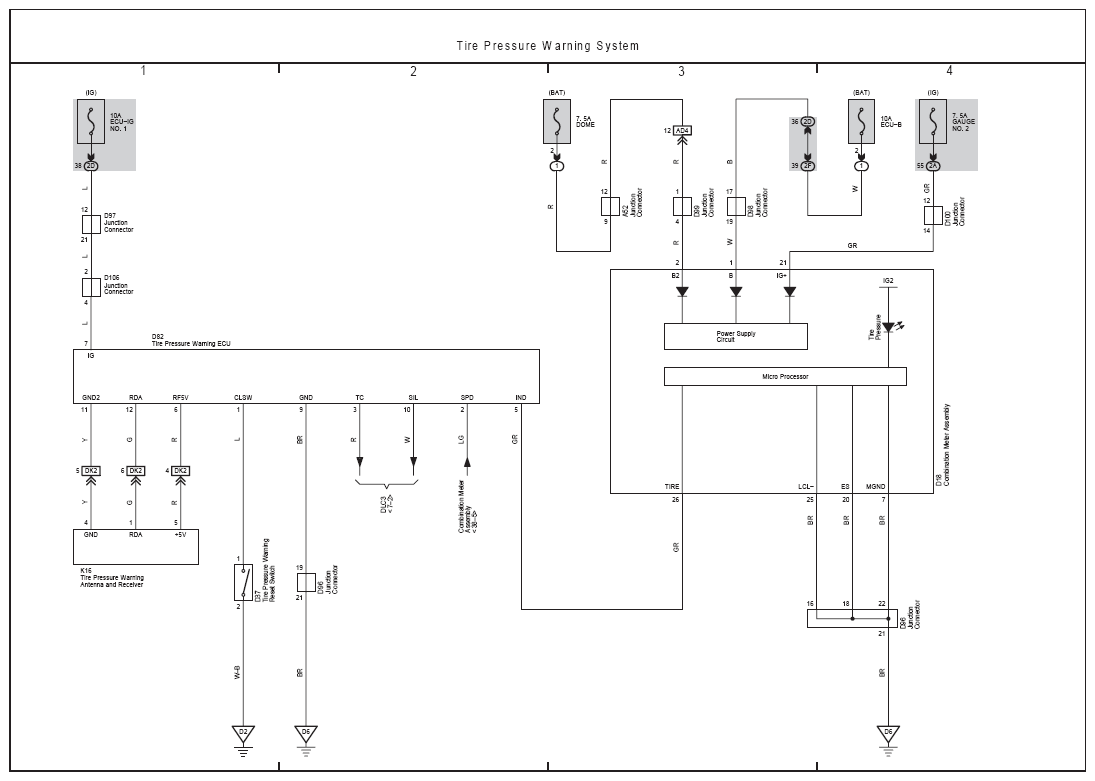

Fig 1: Tire Pressure Warning System Electrical Wiring Diagram

G09112412

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
