Starting (W/O Smart Key System) Wiring Diagrams

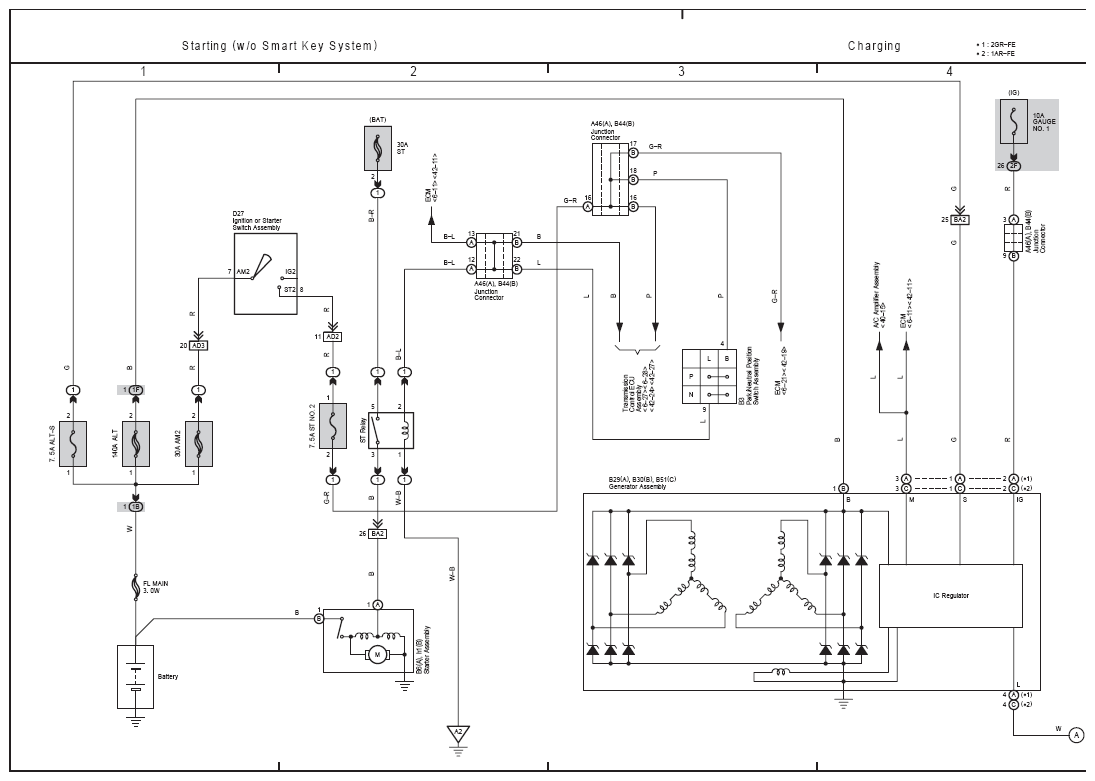

Fig 1: Starting (W/O Smart Key System) Electrical Wiring Diagram (1 Of 2)
G09112366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Starting (W/O Smart Key System) Electrical Wiring Diagram (2 Of 2)
G09112367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
