Remote Control Mirror (W/ Seat Position Memory) Wiring Diagram

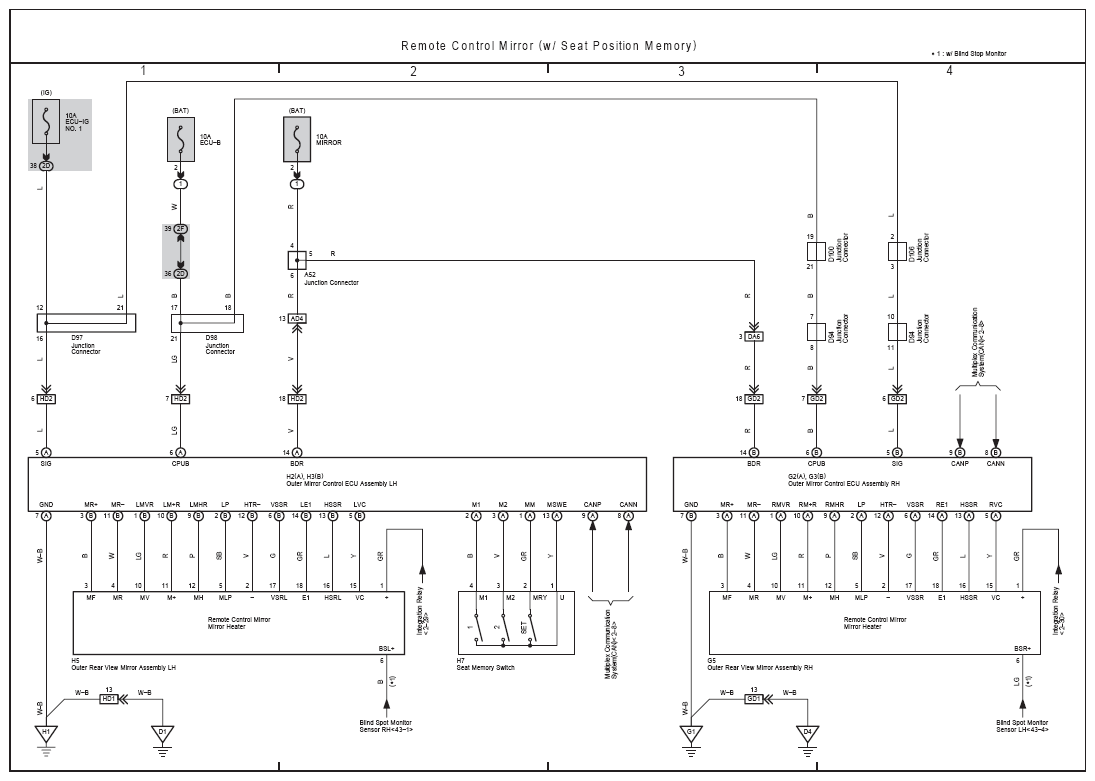

Fig 1: Remote Control Mirror (W/ Seat Position Memory) Electrical Wiring Diagram

G09112410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
